W753-W50-AA01

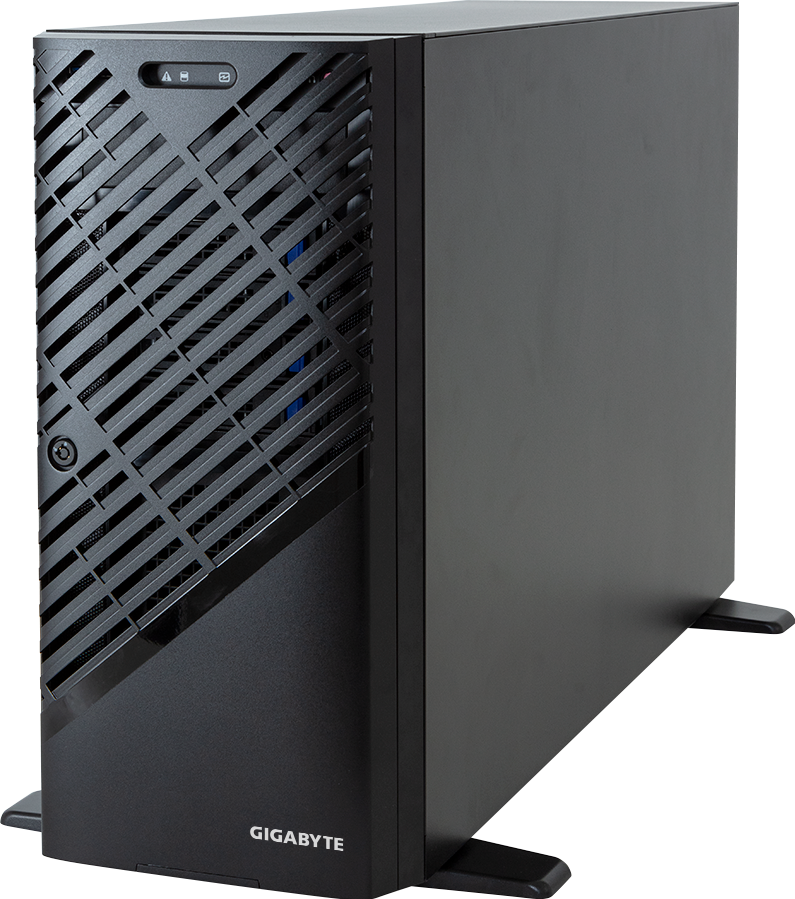

GPU Workstation - Intel® Xeon® W-2500/2400 Processors - UP, 2 x PCIe Gen5 GPUs
- Supports up to 2 x dual-slot PCIe Gen5 GPUs
- Single Intel® Xeon® W-2500/2400 processors
- 4-Channel DDR5 RDIMM per CPU with 8 x DIMMs
- Intel® W790 Chipset
- 2 x 2.5 Gb/s LAN ports via Intel® I226-LM
- 3 x M.2 slots with PCIe Gen4 x4
- Up to 8 x 3.5"/2.5" SATA bays
- 4 x PCIe x16 slots with Gen5 x16 lanes
- 1 x PCIe x16 slot with Gen3 x4 lanes
- Single 1200 W ATX 80 PLUS Platinum power supply
Ordering Numbers: 6NW753W50MR000AB01*
Specifications
Dimensions (WxHxD, mm)
Pedestal
218 x 455 x 726.3
218 x 455 x 726.3
Motherboard
MW53-HP0
CPU
Intel® Xeon® W-2500 processors
Intel® Xeon® W-2400 processors
Single processor, TDP up to 250 W
Intel® Xeon® W-2400 processors
Single processor, TDP up to 250 W
Socket
1 x LGA 4677
Socket E
Socket E
Chipset
Intel® W790
Memory
8 x DIMM slots
Support DDR5 RDIMM
4-channel memory per processor
Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
[Note] When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
Support DDR5 RDIMM
4-channel memory per processor
Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
[Note] When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
LAN
2 x 2.5 Gb/s LAN (2 x Intel® I226-LM)
1 x 10/100/1000 Mb/s Management LAN
1 x 10/100/1000 Mb/s Management LAN
Video
Integrated in ASPEED® AST2600
- 1 x VGA port
- 1 x VGA port
Audio
Realtek® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
Rear: 3 x Audio jacks (Audio in/Audio out/Mic)
Front: 2 x Audio jacks (Audio out/Mic)
Supports 2/4/5.1/7.1 channel configurations
Rear: 3 x Audio jacks (Audio in/Audio out/Mic)
Front: 2 x Audio jacks (Audio out/Mic)
Storage
4 x 3.5"/2.5" SATA
Optional 4 x 3.5"/2.5" SATA
Internal M.2:
3 x M.2 (2280), PCIe Gen4 x4, from PCH
[Note] Storage card is required to support NVMe and SAS drives.
Optional 4 x 3.5"/2.5" SATA
Internal M.2:
3 x M.2 (2280), PCIe Gen4 x4, from PCH
[Note] Storage card is required to support NVMe and SAS drives.
RAID
Intel® SATA RAID 0/1/10/5
Peripheral Drives
5.25" space reserved for ODD devices
PCIe Expansion Slots
Slot_7: PCIe x16 (Gen5 x16), from CPU
Slot_6: PCIe x16 (Gen5 x16), from CPU
Slot_5: PCIe x16 (Gen5 x16), from CPU
Slot_4: PCIe x16 (Gen5 x16), from CPU
Slot_2: PCIe x16 (Gen3 x4), from PCH
Slot_6: PCIe x16 (Gen5 x16), from CPU
Slot_5: PCIe x16 (Gen5 x16), from CPU
Slot_4: PCIe x16 (Gen5 x16), from CPU
Slot_2: PCIe x16 (Gen3 x4), from PCH
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED
Rear I/O
1 x USB 3.2 Gen2x2 port (Type-C)
5 x USB 3.2 Gen2x1 ports (Type-A)
1 x VGA port
1 x Serial port
2 x RJ45 port
1 x MLAN port
3 x Audio jacks (Audio in/Audio out/Mic)
1 x ID button with LED
5 x USB 3.2 Gen2x1 ports (Type-A)
1 x VGA port
1 x Serial port
2 x RJ45 port
1 x MLAN port
3 x Audio jacks (Audio in/Audio out/Mic)
1 x ID button with LED
Security Modules
1 x TPM header with SPI interface
- Optional TPM 2.0 kit: CTM010
- Optional TPM 2.0 kit: CTM010
Power Supply[#1]
Single 1200 W ATX 80 PLUS Platinum power supply
AC Input:
- 110-240V~/ 14-9A, 50-60Hz
- 200-240V~/ 9A, 50-60Hz (Only for China and Korea)
DC Output:
- Max 1200W
+12V/ 100A
+5V/ 20A
+3.3V/ 20A
+5Vsb/ 2.5A
AC Input:
- 110-240V~/ 14-9A, 50-60Hz
- 200-240V~/ 9A, 50-60Hz (Only for China and Korea)
DC Output:
- Max 1200W
+12V/ 100A
+5V/ 20A
+3.3V/ 20A
+5Vsb/ 2.5A
System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
CentOS Stream 9 (x64)
Debian 11.5.0
Red Hat Enterprise Linux 9.0 (x64)
Ubuntu 22.04 LTS (x64)
Windows 11 Enterprise (x64)
Debian 11.5.0
Red Hat Enterprise Linux 9.0 (x64)
Ubuntu 22.04 LTS (x64)
Windows 11 Enterprise (x64)
System Fans
Middle:
3 x 120x120x38mm
Rear:
1 x 120x120x25mm
3 x 120x120x38mm
Rear:
1 x 120x120x25mm
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Weight
Net Weight: 21.57 kg
Gross Weight: 31.2 kg
Gross Weight: 31.2 kg
Packaging Dimensions
1050 x 594 x 417 mm
Packaging Content
1 x W753-W50-AA01
1 x CPU fansink
1 x CPU carrier
1 x Quick installation guide
1 x CPU fansink
1 x CPU carrier
1 x Quick installation guide
Part Numbers
- Barebone package (Refresh): 6NW753W50MR000AB01*
- Barebone package: 6NW753W50MR000AA01*
- Motherboard: 9MW53HP0NR-000*
- I/O shield: 12AIO-MW53HP-10R
- CPU fansink: 25ST0-0Z9221-A3R
- Carrier: 12KRC-0I4677-10R
- M.2 heatsink: 12SP2-080027-00R
- Middle fan: 25ST2-113824-S1R
- Rear fan: 25ST2-112522-S1R
- Power supply: 25EP0-21200C-F3S
Optional parts:
- Barebone package: 6NW753W50MR000AA01*
- Motherboard: 9MW53HP0NR-000*
- I/O shield: 12AIO-MW53HP-10R
- CPU fansink: 25ST0-0Z9221-A3R
- Carrier: 12KRC-0I4677-10R
- M.2 heatsink: 12SP2-080027-00R
- Middle fan: 25ST2-113824-S1R
- Rear fan: 25ST2-112522-S1R
- Power supply: 25EP0-21200C-F3S
Optional parts:
- Rail kit for W7x3 series ((A)+(B)+(C)+(D)):
(A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set
(B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set
(C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set
(D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set
(A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set
(B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set
(C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set
(D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
