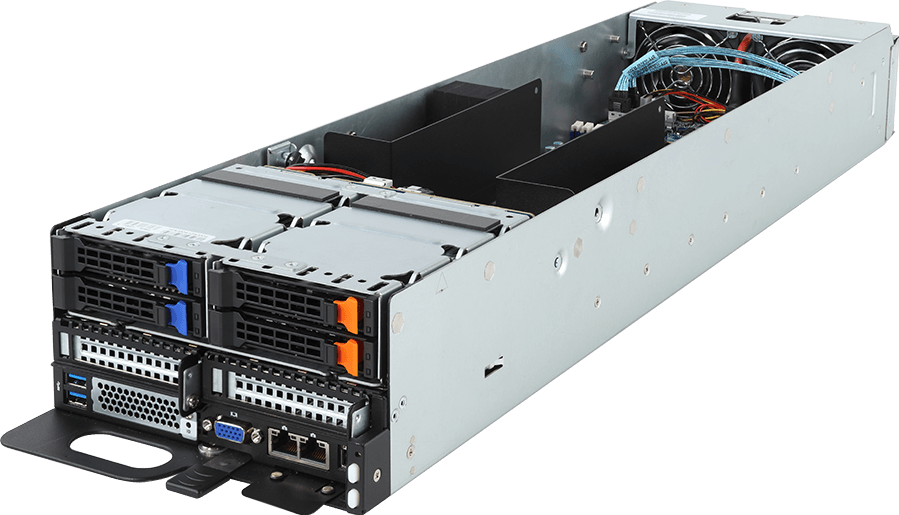

TO22-Z61 (rev. A00)
AMD EPYC™ DP Compute Nodes
- Dual AMD EPYC™ 7002 and 7001 series processor family
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 2 x 2.5" hybrid NVMe/SATA/SAS + 2 x 2.5" SATA/SAS hot-swap bays
- 2 x PCIe Gen3 expansion slots
- 1 x OCP Gen3 x16 mezzanine slot
- AST2500 Graphics & Remote Management Controller
Request a Quote
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Dimensions (WxHxD, mm)
3 Nodes/ 2OU
180 x 90 x 690
180 x 90 x 690
Motherboard
MZ61-HD2
CPU
AMD EPYC™ 7002 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
cTDP up to 200W
Compatible with AMD EPYC™ 7001 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
cTDP up to 200W
Compatible with AMD EPYC™ 7001 series processor family
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz
LAN
2 x 1Gb/s LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Storage
Front side: 2 x 2.5" hybrid NVMe/SATA/SAS + 2 x 2.5" SATA/SAS hot-swap bays
SATA
SAS
Add-on card available
RAID
Optional
Expansion Slots
2 x PCIe x16 (Gen3 x16) slots, Low profile, half length
1 x OCP mezzanine slot (Gen3 x16)
1 x OCP mezzanine slot (Gen3 x16)
Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
8 x HDD LED
1 x System status LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
8 x HDD LED
1 x System status LED
Rear I/O
Power Supply
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Server Management (GSM)
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Server Management (GSM)
Weight
6.24kg
System Fans
2 x 80x80x38mm (14900rpm) fan modules per nodes
Packaging Dimensions
980 x 339 x 239 mm
Packaging Content
1 x TO22-Z61
Part Numbers
Barebone package: 6NTO22Z61MR-00-A*
Spare parts:
- Motherboard: 9MZ61HD2NR-00-2*
- CPU heatsink: 25ST1-15320E-J1R/ 25ST1-363100-C1R
Spare parts:
- Motherboard: 9MZ61HD2NR-00-2*
- CPU heatsink: 25ST1-15320E-J1R/ 25ST1-363100-C1R
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SUPPORT
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
Chipset
Chipset
Versión
Tamaño
Fecha
AMD Chipset Driver
Version : 1.07.12.1102
17.05 MB
2019/08/06
S.O.: Windows Server 2016 64bit,Windows Server 2019
LAN
LAN
Versión
Tamaño
Fecha
Intel® LAN Driver and Utility
Version : 24.0
542.58 MB
2019/08/06
S.O.: Windows Server 2016 64bit,Windows Server 2019
VGA
VGA
Versión
Tamaño
Fecha
ASPEED Graphic Driver
Version : 1.06
1.78 MB
2019/08/06
S.O.: Windows Server 2016 64bit,Windows Server 2019
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utilidad
Descripción
Versión
Tamaño
Fecha
GSM Agent
Version : 2.5
720.29 MB
2021/12/27
S.O.: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Server
Version : 2.08
1568.13 MB
2021/12/21
S.O.: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM CLI
Version : 2.1.54
111.18 MB
2021/03/06
S.O.: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
Manual
Descripción
Versión
Tamaño
Fecha
Lista de Soporte
Descripción
Versión
Tamaño
Fecha
Lista de soporte de Catálogo Digital
Version : 1.0
1 MB
2020/05/25
Datasheet for TO22-Z61 (v1.0)
Lista de soporte de Catálogo Digital
Version : 4.0
4.79 MB
2020/03/31
RACKLUTION-OP Brochure (v4.0)
