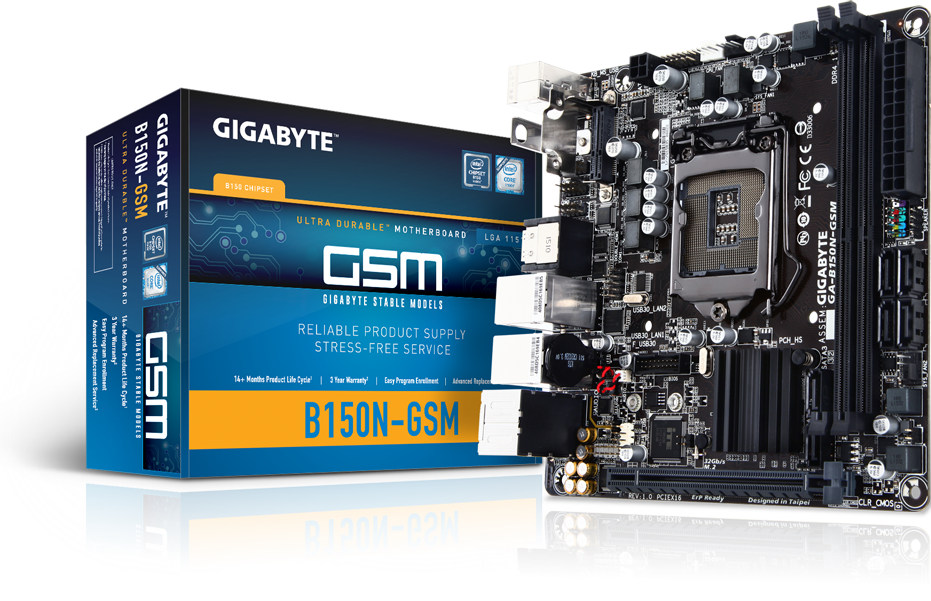

GA-B150N-GSM (Rev. 1.0)

Intel® B150 Chipset
DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosAprender másWhere to Buy

Especificación

  • Procesador
    1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
      * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® B150 Express Chipset
  • Memoria
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR4 2133 MHz memory modules
    4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
    (Please refer "Memory Support List" for more information.)
  • Gráficos Integrados
  • Integrated Graphics Processor-Intel® HD Graphics support:
    1. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    Maximum shared memory of 1024 MB
  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
    • LAN
      1. 2 x Intel® GbE LAN chip (10/100/1000 Mbit)
    • Puertos de Expansión
      1. 1 x PCI Express x16 slot, running at x16
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
      2. 1 x MINI PCIE slot for the wireless communication module
    • Interfaz de Almacenamiento
    • Chipset:
      1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2/x1 SSD support)
      2. 6 x SATA 6Gb/s connectors
        * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2 and SATA connectors.
    • USB
    • Chipset:
      1. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
      2. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    • Conectores Internos de E/S
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 6 x SATA 6Gb/s connectors
      4. 1 x M.2 Socket 3 connector (on the back of the motherboard)
      5. 1 x CPU fan header
      6. 2 x system fan headers
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x USB 3.0/2.0 header
      10. 1 x USB 2.0/1.1 header
      11. 4 x serial port headers
      12. 1 x S/PDIF Out header
      13. 1 x speaker header
      14. 1 x Clear CMOS jumper
      15. 1 x chassis intrusion header
    • Conectores del Panel Trasero
      1. 2 x USB 2.0/1.1 ports
      2. 1 x PS/2 keyboard/mouse port
      3. 2 x Wi-Fi antenna connector holes
      4. 2 x HDMI ports
      5. 4 x USB 3.0/2.0 ports
      6. 2 x RJ-45 ports
      7. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
    • Controlador de E/S
      1. iTE® I/O Controller Chip
    • Monitorización H/W
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU/System overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 64 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Características Únicas
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        3D OSD
        @BIOS
        AutoGreen
        Cloud Station
        EasyTune
        Fast Boot
        Smart TimeLock
        Smart Keyboard
        Smart Backup
        System Information Viewer
        USB Blocker
      2. Support for Q-Flash
      3. Support for Smart Switch
      4. Support for Xpress Install
    • Software Incluido
      1. Norton® Internet Security (OEM version)
      2. Intel® Smart Response Technology
      3. cFosSpeed
    • Sistema Operativo
      1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
      2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
        * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    • Diseño
      1. Mini-ITX Form Factor; 17.0cm x 17.0cm
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
      • Procesador
        1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
          * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
        2. L3 cache varies with CPU
        (Please refer "CPU Support List" for more information.)
      • Chipset
        1. Intel® B150 Express Chipset
      • Memoria
        1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
          * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
        2. Dual channel memory architecture
        3. Support for DDR4 2133 MHz memory modules
        4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
        5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
        (Please refer "Memory Support List" for more information.)
      • Gráficos Integrados
      • Integrated Graphics Processor-Intel® HD Graphics support:
        1. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@24 Hz
          * Support for HDMI 1.4 version.
        Maximum shared memory of 1024 MB
      • Audio
        1. Realtek® ALC887 codec
        2. High Definition Audio
        3. 2/4/5.1/7.1-channel
        4. Support for S/PDIF Out
        • LAN
          1. 2 x Intel® GbE LAN chip (10/100/1000 Mbit)
        • Puertos de Expansión
          1. 1 x PCI Express x16 slot, running at x16
            (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
          2. 1 x MINI PCIE slot for the wireless communication module
        • Interfaz de Almacenamiento
        • Chipset:
          1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2/x1 SSD support)
          2. 6 x SATA 6Gb/s connectors
            * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2 and SATA connectors.
        • USB
        • Chipset:
          1. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
          2. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
        • Conectores Internos de E/S
          1. 1 x 24-pin ATX main power connector
          2. 1 x 4-pin ATX 12V power connector
          3. 6 x SATA 6Gb/s connectors
          4. 1 x M.2 Socket 3 connector (on the back of the motherboard)
          5. 1 x CPU fan header
          6. 2 x system fan headers
          7. 1 x front panel header
          8. 1 x front panel audio header
          9. 1 x USB 3.0/2.0 header
          10. 1 x USB 2.0/1.1 header
          11. 4 x serial port headers
          12. 1 x S/PDIF Out header
          13. 1 x speaker header
          14. 1 x Clear CMOS jumper
          15. 1 x chassis intrusion header
        • Conectores del Panel Trasero
          1. 2 x USB 2.0/1.1 ports
          2. 1 x PS/2 keyboard/mouse port
          3. 2 x Wi-Fi antenna connector holes
          4. 2 x HDMI ports
          5. 4 x USB 3.0/2.0 ports
          6. 2 x RJ-45 ports
          7. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
        • Controlador de E/S
          1. iTE® I/O Controller Chip
        • Monitorización H/W
          1. System voltage detection
          2. CPU/System temperature detection
          3. CPU/System fan speed detection
          4. CPU/System overheating warning
          5. CPU/System fan fail warning
          6. CPU/System fan speed control
            * Whether the fan speed control function is supported will depend on the cooler you install.
        • BIOS
          1. 1 x 64 Mbit flash
          2. Use of licensed AMI UEFI BIOS
          3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
        • Características Únicas
          1. Support for APP Center
            * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
            3D OSD
            @BIOS
            AutoGreen
            Cloud Station
            EasyTune
            Fast Boot
            Smart TimeLock
            Smart Keyboard
            Smart Backup
            System Information Viewer
            USB Blocker
          2. Support for Q-Flash
          3. Support for Smart Switch
          4. Support for Xpress Install
        • Software Incluido
          1. Norton® Internet Security (OEM version)
          2. Intel® Smart Response Technology
          3. cFosSpeed
        • Sistema Operativo
          1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
          2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
            * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
        • Diseño
          1. Mini-ITX Form Factor; 17.0cm x 17.0cm
        • Otras Descripciones
          1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
          2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

          * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
          * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
          * Todas las marcas y logos son propiedad de sus propios dueños.
          * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
