H374-A81-IAW1

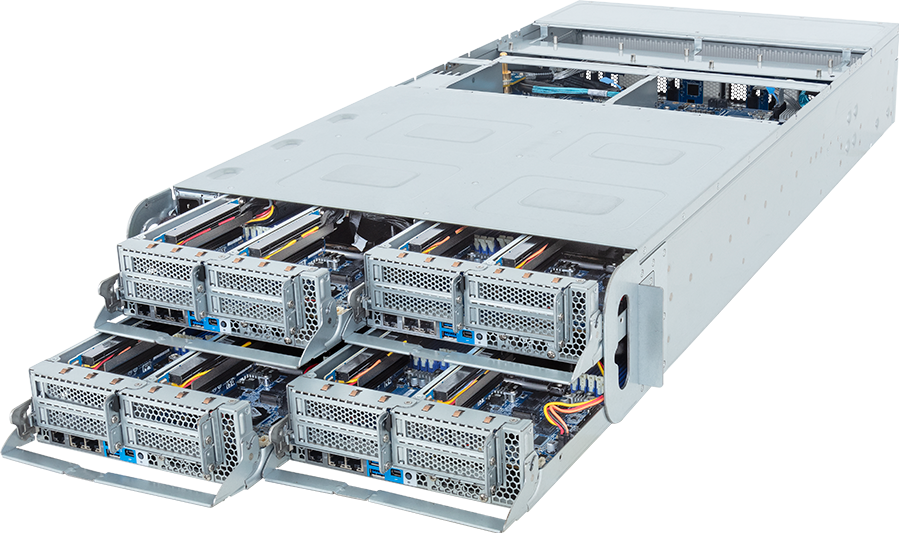

High Density Server - Intel® Xeon® 6 Processors - 3U 4-Node DP 8-Bay Gen5 NVMe/SATA/SAS-4 Immersion
- Immersion Cooling Server
- 3U 4-node server system
- Dual Intel® Xeon® 6 Processors per node, LGA 7529
- 12-Channel DDR5 RDIMM / MRDIMM, 24 x DIMMs per node
- Dual ROM Architecture
- 8 x 1Gb/s LAN ports via Intel® I350-AM2
- 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 16 x LP PCIe Gen5 x16 slots
- 3 x 3000W 80 PLUS Titanium redundant power supplies
Ordering Numbers: 6NH374A81DR000IAW1*
Specifications
Dimensions (WxHxD, mm)
3U 4-Node
447 x 130.8 x 895
447 x 130.8 x 895
Motherboard
MA84-HD0
CPU
Intel® Xeon® 6 Processors
- Intel® Xeon® 6900-Series Processors
Dual processor per node, TDP up to 500W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- Intel® Xeon® 6900-Series Processors
Dual processor per node, TDP up to 500W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
8 x LGA 7529
Socket BR
Socket BR
Chipset
System on Chip
Memory
96 x DIMM slots
DDR5 memory supported
12-Channel memory per processor
MRDIMM supported [1]
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s
[1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.
DDR5 memory supported
12-Channel memory per processor
MRDIMM supported [1]
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s
[1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.
LAN
Top (I/O board - CLNP319 x 4):
8 x 1Gb/s LAN (4 x Intel® I350-AM2)
- Support NCSI function
4 x 10/100/1000 Mbps Management LAN [1]
[1] Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology.
8 x 1Gb/s LAN (4 x Intel® I350-AM2)
- Support NCSI function
4 x 10/100/1000 Mbps Management LAN [1]
[1] Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology.
Video
Integrated in ASPEED® AST2600 x 4
- 4 x Mini-DP
- 4 x Mini-DP
Storage
Bottom hot-swap:
8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (NVMe from CPU_1)
[1] Storage card is required to support SATA and SAS drives.
8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (NVMe from CPU_1)
[1] Storage card is required to support SATA and SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Onboard VROC key header
Onboard VROC key header
PCIe Expansion Slots
PCIe Cable x 8:
- 8 x LP x16 (Gen5 x16), from CPU_1
Riser Card CRCH010 x 8:
- 8 x LP x16 (Gen5 x16), from CPU_0
- 8 x LP x16 (Gen5 x16), from CPU_1
Riser Card CRCH010 x 8:
- 8 x LP x16 (Gen5 x16), from CPU_0
Top I/O
I/O board - CLNP319 x 4:
8 x USB 3.2 Gen1 ports (Type-A)
4 x Mini-DP
8 x RJ45 ports
4 x MLAN ports
4 x ID buttons with LED
4 x System status LEDs
8 x USB 3.2 Gen1 ports (Type-A)
4 x Mini-DP
8 x RJ45 ports
4 x MLAN ports
4 x ID buttons with LED
4 x System status LEDs
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
4 x TPM headers with SPI interface
- Optional TPM2.0 kit: CTM012
4 x PRoT connectors (only enabled on RoT SKU)
- Optional TPM2.0 kit: CTM012
4 x PRoT connectors (only enabled on RoT SKU)
Power Supply[#1]
3 x 3000W 80 PLUS Titanium redundant power supplies [1]
[1] The system power supply requires C19 power cord.
[1] The system power supply requires C19 power cord.
System Management
ASPEED® AST2600 Baseboard Management Controller
ASPEED® AST2620 Chassis Management Controller
GIGABYTE Management Console web interface
ASPEED® AST2620 Chassis Management Controller
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Operating Properties
Operating coolant temperature: 20°C to 35°C
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1184 x 706 x 425 mm
Packaging Content
1 x H374-A81-IAW1
8 x CPU heatsinks
1 x Mini-DP to D-Sub cable
8 x Carriers
8 x CPU heatsinks
1 x Mini-DP to D-Sub cable
8 x Carriers
Part Numbers
- Barebone package: 6NH374A81DR000IAW1*
- Motherboard: 9MA84HD0UR-000*
- Motherboard: 9MA84HD0UR-000*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
