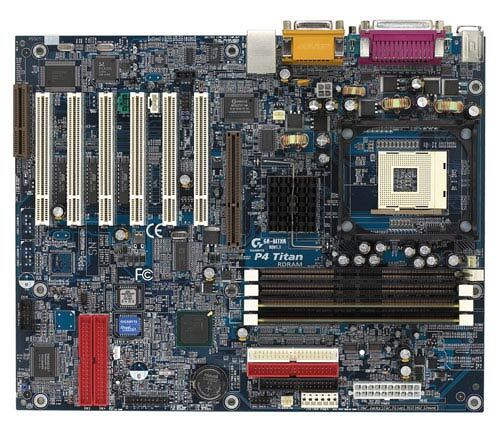

GA-8ITXR (Rev. 1.x)

مشخصاتپشتیبانیخبرها / جوایزWhere to Buy

مشخصات

  • پردازنده
    1. Socket 478 for Intel®Micro FC-PGA2 Pentium®4 processor
    2. Supports1.5GHz~2.0GHz or faster
    3. 400MHz FSB(standard) and support (100~133.33) x 4 MHz 10 scales FSB setting from BIOS
    4. Supports CPU multiplier: 8,9...24 setting from BIOS
    5. 0.025, 0.05, 0.075, 0.1V 4 scales CPU voltage setting from BIOS
  • چیپ ست
    1. Intel®850 Chipset consists of Intel®Memory Controller Hub (MCH) and the Intel®I/O Controller Hub 2 (ICH2)
    2. Creative CT5880 PCI sound chip and Sigmatel 4-channel codec
    3. Winbond W83627HF-AW + Health monitoring
    4. Realtek RTL8100L LAN chip
    5. Promise ATA 100 w/RAID chip
  • حافظه
    1. 4 x RIMM socket; Dual RAMBUS channel support
    2. RDRAM Bus Frequency (300/400/auto); Over RIMM voltage adjustment from BIOS
    3. Supports 64/128/256/512 MB RAMBUS RIMM modules
    4. Supports ECC type RIMM module
  • سوکت های اضافه
    1. 1 x AGP 4X slot & AGP 2.0 compliant (voltage adjustable from 1.5V~1.8V by jumper)
    2. 6 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x CNR (Communication Network Riser) slot
  • کنترلر ورودی/خروجی
    1. 2 x UDMA ATA 100/66/33 bus master IDE ports on board
    2. 2 x UDMA ATA 100/66/33 RAID IDE ports on board
    3. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    4. 1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC on board
    5. 2 x USB1.1 ports on board and 2 by cable
    6. 1 x RJ45 LAN port ; IrDA TX / RX header
  • نظارت بر روی سخت افزار
    1. Auto speed down and alarm when CPU overheat or fan failure
    2. 3 fan power & speed detection connectors
    3. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • بایوس
    1. Supports Multilingual BIOS, DualBIOS™ and @BIOS™
    2. FWH(Firm Ware Hub) BIOS with enhanced ACPI feature for PC98/Win98/Me/Win2000/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • فاکتور فرم
    1. ATX form factor, 6 layers PCB (30.5 x 24.4 cm)
  • درایور
    1. Gigabyte Windows Utility Manager; EasyTune III™ and @BIOS™ utility
    2. Creative PCI sound drivers
  • ویژگی های دیگر
    1. Suspend-To-RAM (STR) & Wake-On-LAN (WOL); External Modem Ring On
    2. Supports USB KB/MS Wake on S3
    3. Supports EasyTune III™
    4. Poly fuse for keyboard, USB & game over-current protection
  • منبع تغذیه
    1. ATX power connector, ATX 12V connector and 3.3V AUX power connector
    2. Power-on by K/B,PS/2 Mouse, LAN, RTC, Modem & switch
    3. Power-off by Windows 98/Me/2000/NT/XP shut down & switch
    4. Supports USB device wake-up; Suspend/Wake-on by ACPI & APM device
    5. AC recovery ON/OFF control; 3 level ACPI LED support
  • پردازنده
    1. Socket 478 for Intel®Micro FC-PGA2 Pentium®4 processor
    2. Supports1.5GHz~2.0GHz or faster
    3. 400MHz FSB(standard) and support (100~133.33) x 4 MHz 10 scales FSB setting from BIOS
    4. Supports CPU multiplier: 8,9...24 setting from BIOS
    5. 0.025, 0.05, 0.075, 0.1V 4 scales CPU voltage setting from BIOS
  • چیپ ست
    1. Intel®850 Chipset consists of Intel®Memory Controller Hub (MCH) and the Intel®I/O Controller Hub 2 (ICH2)
    2. Creative CT5880 PCI sound chip and Sigmatel 4-channel codec
    3. Winbond W83627HF-AW + Health monitoring
    4. Realtek RTL8100L LAN chip
    5. Promise ATA 100 w/RAID chip
  • حافظه
    1. 4 x RIMM socket; Dual RAMBUS channel support
    2. RDRAM Bus Frequency (300/400/auto); Over RIMM voltage adjustment from BIOS
    3. Supports 64/128/256/512 MB RAMBUS RIMM modules
    4. Supports ECC type RIMM module
  • سوکت های اضافه
    1. 1 x AGP 4X slot & AGP 2.0 compliant (voltage adjustable from 1.5V~1.8V by jumper)
    2. 6 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x CNR (Communication Network Riser) slot
  • کنترلر ورودی/خروجی
    1. 2 x UDMA ATA 100/66/33 bus master IDE ports on board
    2. 2 x UDMA ATA 100/66/33 RAID IDE ports on board
    3. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    4. 1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC on board
    5. 2 x USB1.1 ports on board and 2 by cable
    6. 1 x RJ45 LAN port ; IrDA TX / RX header
  • نظارت بر روی سخت افزار
    1. Auto speed down and alarm when CPU overheat or fan failure
    2. 3 fan power & speed detection connectors
    3. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • بایوس
    1. Supports Multilingual BIOS, DualBIOS™ and @BIOS™
    2. FWH(Firm Ware Hub) BIOS with enhanced ACPI feature for PC98/Win98/Me/Win2000/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • فاکتور فرم
    1. ATX form factor, 6 layers PCB (30.5 x 24.4 cm)
  • درایور
    1. Gigabyte Windows Utility Manager; EasyTune III™ and @BIOS™ utility
    2. Creative PCI sound drivers
  • ویژگی های دیگر
    1. Suspend-To-RAM (STR) & Wake-On-LAN (WOL); External Modem Ring On
    2. Supports USB KB/MS Wake on S3
    3. Supports EasyTune III™
    4. Poly fuse for keyboard, USB & game over-current protection
  • منبع تغذیه
    1. ATX power connector, ATX 12V connector and 3.3V AUX power connector
    2. Power-on by K/B,PS/2 Mouse, LAN, RTC, Modem & switch
    3. Power-off by Windows 98/Me/2000/NT/XP shut down & switch
    4. Supports USB device wake-up; Suspend/Wake-on by ACPI & APM device
    5. AC recovery ON/OFF control; 3 level ACPI LED support

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد. گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است. کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.
