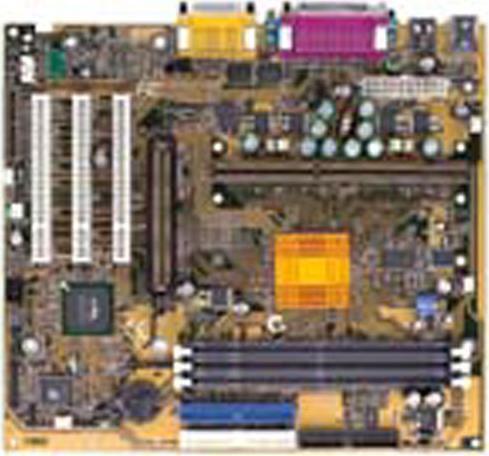

GA-7VM (Rev. 1.1)

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Slot A for AMD-K7 Athlon 200MHz FSB processors
    2. 100/110*/115*/120*/124*/129*/133*/138*/143* MHz FSB
    3. AUTO detect CPU voltage
  • Chipset
    1. VIA KX133 North Bridge
    2. VIA 686A South Bridge
    3. AC97 codec
  • Memory
    1. 16MB to 1.5GB memory size
    2. 3 x DIMM sockets
    3. Supports 64/128/256/512 MB SDRAM DIMM module
    4. Supports ECC type DIMM module (72bits)
  • Expansion Slots
    1. 1 x AMR (Audio Modem Riser) slot (Inversely AMR card)
    2. 1 x AGP slot supports 2X/4X mode
    3. 3 x PCI slots support 33MHz & PCI 2.2 compliant
  • I/O Controller
    1. 2 x Ultra DMA 33/66 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board
    3. 1 x joystick, 1 x line-in, 1 x line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX Header Ready
  • H/W Monitoring
    1. Auto speed down and Alarm when CPU overheat or Fan failure (OS independent & Driverless)
    2. 3 fan power & speed detection connectors
    3. Stop CPU fan during entering suspend mode
    4. System health status detect & report by BIOS
    5. H/W detect +5V, +12V, CPU voltage & CMOS battery status
  • BIOS
    1. 2Mbit Flash RAM
    2. AMI BIOS with enhanced ACPI Feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC Recovery ON/OFF control
    5. Auto-detect & report system health status
  • Form Factor
    1. Micro ATX , 4 layer PCB (24.7*22.0cm)
  • Driver
    1. VIA 4 in 1 service pack utility
    2. AC97 audio driver
    3. Hardware monitor utility
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN Header (WOL)
    3. Includes Wake-On-Ring (WOR)
    4. Poly fuse for keyboard, USB & game overcurrent protection
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 Shut down & Switch
    4. Supports USB device wake-up
    5. 3 level ACPI LED support
    6. Stop CPU fan during entering suspend mode
  • CPU
    1. Slot A for AMD-K7 Athlon 200MHz FSB processors
    2. 100/110*/115*/120*/124*/129*/133*/138*/143* MHz FSB
    3. AUTO detect CPU voltage
  • Chipset
    1. VIA KX133 North Bridge
    2. VIA 686A South Bridge
    3. AC97 codec
  • Memory
    1. 16MB to 1.5GB memory size
    2. 3 x DIMM sockets
    3. Supports 64/128/256/512 MB SDRAM DIMM module
    4. Supports ECC type DIMM module (72bits)
  • Expansion Slots
    1. 1 x AMR (Audio Modem Riser) slot (Inversely AMR card)
    2. 1 x AGP slot supports 2X/4X mode
    3. 3 x PCI slots support 33MHz & PCI 2.2 compliant
  • I/O Controller
    1. 2 x Ultra DMA 33/66 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board
    3. 1 x joystick, 1 x line-in, 1 x line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX Header Ready
  • H/W Monitoring
    1. Auto speed down and Alarm when CPU overheat or Fan failure (OS independent & Driverless)
    2. 3 fan power & speed detection connectors
    3. Stop CPU fan during entering suspend mode
    4. System health status detect & report by BIOS
    5. H/W detect +5V, +12V, CPU voltage & CMOS battery status
  • BIOS
    1. 2Mbit Flash RAM
    2. AMI BIOS with enhanced ACPI Feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC Recovery ON/OFF control
    5. Auto-detect & report system health status
  • Form Factor
    1. Micro ATX , 4 layer PCB (24.7*22.0cm)
  • Driver
    1. VIA 4 in 1 service pack utility
    2. AC97 audio driver
    3. Hardware monitor utility
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN Header (WOL)
    3. Includes Wake-On-Ring (WOR)
    4. Poly fuse for keyboard, USB & game overcurrent protection
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 Shut down & Switch
    4. Supports USB device wake-up
    5. 3 level ACPI LED support
    6. Stop CPU fan during entering suspend mode
