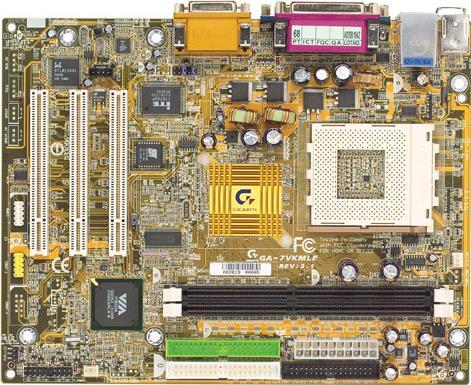

GA-7VKMLE (Rev. 3.1)

SpecificationsSupportWhere to Buy

Specifications

  • Processador
    1. Socket A for AMD Athlon™/Athlon™ XP/Duron™ 200/266 MHz FSB processors
  • Chipset
    1. VIA KM266 North Bridge
    2. VIA KL266 North Bridge(Version4.0 and after)
    3. VIA 8233A(CE) South Bridge
    4. Realtek 8100 10/100Mb LAN chip
    5. AC97 codec
  • Memória
    1. Supports DDR266 (PC2100) memory
    2. Supports up to 1GB DDR memory
    3. 2 DIMMs of 184-pin DDR socket
  • Slots de Expansão
    1. 3 x PCI slots support 33MHz and PCI 2.2 complian
  • Conectores I/O internos
    1. 2 x ATA 66/100/133 bus master IDE ports
    2. 1 x FDD, 2 x HDD and 1 x CD audio input
    3. IrDA(1x5) and COM2 on board
    4. 1 x USB1.1 connector (support 2 ports by cable)
  • Painel I/O Traseiro
    1. 2 x USB1.1 ports
    2. 1 x COM port
    3. 1 x RJ45 LAN port
    4. 1 x LPT
    5. PS/2 Keyboard, PS/2 Mouse
    6. 1 x VGA port
  • Monitorização H/W
    1. System voltage detect (Vcore, VDD, Vcc,+12V)
    2. H/W detect and report power-in voltage, CPU voltage
    3. CPU/System fan revolution and temperature detect
  • BIOS
    1. 2Mbit flash ROM
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
    3. Supports @BIOS™ Live Update utility
    4. Auto-detect and report system health status
    5. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/ME/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
  • Form Factor
    1. Micro ATX and 4 layers PCB ( 24.3 x 19.0 cm)
  • Driver
    1. VIA 4-in-1 service pack utility
    2. Gigabyte Windows Utility Manager
    3. RealTek LAN driver
    4. RealTek Audio driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Supports @BIOS™ and Q-Flash
  • Power
    1. ATX 20-pin power connector
    2. ACPI states supported
    3. Wake up from S1 and power on from S5
  • Processador
    1. Socket A for AMD Athlon™/Athlon™ XP/Duron™ 200/266 MHz FSB processors
  • Chipset
    1. VIA KM266 North Bridge
    2. VIA KL266 North Bridge(Version4.0 and after)
    3. VIA 8233A(CE) South Bridge
    4. Realtek 8100 10/100Mb LAN chip
    5. AC97 codec
  • Memória
    1. Supports DDR266 (PC2100) memory
    2. Supports up to 1GB DDR memory
    3. 2 DIMMs of 184-pin DDR socket
  • Slots de Expansão
    1. 3 x PCI slots support 33MHz and PCI 2.2 complian
  • Conectores I/O internos
    1. 2 x ATA 66/100/133 bus master IDE ports
    2. 1 x FDD, 2 x HDD and 1 x CD audio input
    3. IrDA(1x5) and COM2 on board
    4. 1 x USB1.1 connector (support 2 ports by cable)
  • Painel I/O Traseiro
    1. 2 x USB1.1 ports
    2. 1 x COM port
    3. 1 x RJ45 LAN port
    4. 1 x LPT
    5. PS/2 Keyboard, PS/2 Mouse
    6. 1 x VGA port
  • Monitorização H/W
    1. System voltage detect (Vcore, VDD, Vcc,+12V)
    2. H/W detect and report power-in voltage, CPU voltage
    3. CPU/System fan revolution and temperature detect
  • BIOS
    1. 2Mbit flash ROM
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
    3. Supports @BIOS™ Live Update utility
    4. Auto-detect and report system health status
    5. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/ME/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
  • Form Factor
    1. Micro ATX and 4 layers PCB ( 24.3 x 19.0 cm)
  • Driver
    1. VIA 4-in-1 service pack utility
    2. Gigabyte Windows Utility Manager
    3. RealTek LAN driver
    4. RealTek Audio driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Supports @BIOS™ and Q-Flash
  • Power
    1. ATX 20-pin power connector
    2. ACPI states supported
    3. Wake up from S1 and power on from S5

* Os termos HDMI, HDMI High-Definition Multimedia Interface (interface multimédia de alta-definição), a apresentação comercial HDMI e os Logótipos HDMI são marcas comerciais ou marcas registadas da HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
