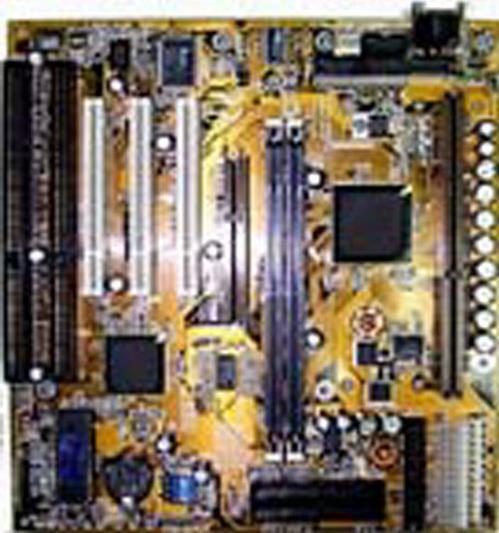

GA-6EA

EspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Intel Pentium ® II Processor 233MHz-366MHz.
    2. Slot 1 Socket for Future Expansion
  • Chipset
    1. Intel 82440 EX AGPset
    2. iTE 8671 I/O (1Mb/S)
  • Memoria
    1. 2 x 168-pin 3.3v DIMM sockets support
    2. Supports 8/16/32/64/128 MB DIMM Module
    3. Supports EDO RAM, SDRAM
    4. Supports 8MB to 256MB DRAM Size
    5. Supports 66/75*/83* MHz System Clock Speed Setting * These settings are not Guarantee by Giga-Byte
    6. CPU Built-in 256KB/512KB L2 cache for Pentium II Processor
    7. No L2 cache for Intel Celeron 266-300MHz Processor
  • Puertos de Expansión
    1. 3 x PCI 32-bit slots, PCI 2.1 compliant
    2. 2 x ISA 16-bit slots
    3. 1x AGP (1x & 2x Mode,66/133MHz) slot
    4. Support Cretive PCI Sound Card SB-Link™
  • Controlador de E/S
    1. 1x floppy port (360KB-2.88MB)
    2. 2x serial ports (16550 high-speed)
    3. 1x parallel port (EPP/ECP)
    4. PS/2 Keyboard
    5. PS/2 Mouse
    6. 2x USB (By cable)
    • Monitorización H/W
      1. Temperature Sensor Under Processor Heatsink
      2. Speaker Alarm When CPU Overheats or CPU Fan Failure
      3. Auto Speed Down When CPU Overheats
      4. System Health Status Detect & Report by BIOS,LDCMR & SIV.
      5. Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage
    • BIOS
      1. 1 Mbit (256KB) FLASH RAM
      2. Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions
      3. LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
    • Diseño
      1. Baby AT, 4 layer PCB (24.5*20cm)
      2. Support both PS/2 and ATX power Connector
    • Controlador
      1. Intel Ultra DMA/33 Bus Master IDE Driver
      *Win98/ME already has build-in driver for this model
    • Energía
      1. Power On by PS/2 Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Soft-Power Switch
      2. Power Off by WindowsR 95 Shut down & Soft-Power Switch
      3. AC Recovery On/Off Control
      4. Supports Fan Stop During Suspend Mode
      5. Supports 3 Level ACPI LED
    • Procesador
      1. Intel Pentium ® II Processor 233MHz-366MHz.
      2. Slot 1 Socket for Future Expansion
    • Chipset
      1. Intel 82440 EX AGPset
      2. iTE 8671 I/O (1Mb/S)
    • Memoria
      1. 2 x 168-pin 3.3v DIMM sockets support
      2. Supports 8/16/32/64/128 MB DIMM Module
      3. Supports EDO RAM, SDRAM
      4. Supports 8MB to 256MB DRAM Size
      5. Supports 66/75*/83* MHz System Clock Speed Setting * These settings are not Guarantee by Giga-Byte
      6. CPU Built-in 256KB/512KB L2 cache for Pentium II Processor
      7. No L2 cache for Intel Celeron 266-300MHz Processor
    • Puertos de Expansión
      1. 3 x PCI 32-bit slots, PCI 2.1 compliant
      2. 2 x ISA 16-bit slots
      3. 1x AGP (1x & 2x Mode,66/133MHz) slot
      4. Support Cretive PCI Sound Card SB-Link™
    • Controlador de E/S
      1. 1x floppy port (360KB-2.88MB)
      2. 2x serial ports (16550 high-speed)
      3. 1x parallel port (EPP/ECP)
      4. PS/2 Keyboard
      5. PS/2 Mouse
      6. 2x USB (By cable)
      • Monitorización H/W
        1. Temperature Sensor Under Processor Heatsink
        2. Speaker Alarm When CPU Overheats or CPU Fan Failure
        3. Auto Speed Down When CPU Overheats
        4. System Health Status Detect & Report by BIOS,LDCMR & SIV.
        5. Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage
      • BIOS
        1. 1 Mbit (256KB) FLASH RAM
        2. Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions
        3. LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
      • Diseño
        1. Baby AT, 4 layer PCB (24.5*20cm)
        2. Support both PS/2 and ATX power Connector
      • Controlador
        1. Intel Ultra DMA/33 Bus Master IDE Driver
        *Win98/ME already has build-in driver for this model
      • Energía
        1. Power On by PS/2 Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Soft-Power Switch
        2. Power Off by WindowsR 95 Shut down & Soft-Power Switch
        3. AC Recovery On/Off Control
        4. Supports Fan Stop During Suspend Mode
        5. Supports 3 Level ACPI LED

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
