  • Supports 7th / 6th Generation Intel® Core™ Processor
  • Dual Channel, Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® USB 3.1 with USB Type-C™ & PD 2.0 100W Support
  • 2-Way SLI™ & CrossFire™ Multi-Graphics Support
  • NVMe PCIe Gen3 x4 22110 M.2 Interface & U.2 Interface for Intel® SSD 750
  • Best Support for 3 Intel® SSD 750 Devices in RAID 0
  • 2 SATA Express Connectors for Up to 16Gb/s Data Transfer
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • High Quality Audio Capacitors and Audio Noise Guard with Ambient LED Trace Path Lighting
  • Ultra Durable Metal Shielding over PCIe and DDR Slots
  • Ultra Durable Anti-Sulfur Resistors for Longer Lifespan
  • Ultra Durable Anti-Rust Rear I/O Connectors
  • Dual Hybrid Fan Headers with Precise PWM / Voltage Control for Water Pump & Fan
  • GIGABYTE UEFI DualBIOS™ Technology
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • Rear Panel Mini DisplayPort-In for Future Feature Upgrade
  • Next Generation 40 Gb/s Thunderbolt™ 3
    Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection


    Intel® Thunderbolt™ 3 Certified Motherboard
    Powered by Intel's own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available over a USB Type-C™ connector on the back I/O of the GIGABYTE Z170X-Ultra Gaming, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as Mini DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.


    Daisy-chain Multiple Devices
    Support for Mini DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The Z170X-Ultra Gaming is able to support a display in 4K resolution at 60 FPS. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 6 devices thanks to the Z170X-Ultra Gaming's USB Type-C™ port.
    Compatibility may vary according to system configuration and device specifications.
  • NVIDIA® / AMD® / Intel®
    Graphics Support for
    Thunderbolt™ 3*
    GIGABYTE implementing Thunderbolt™ 3 allows users to utilize all facets of this technology. GIGABYTE’s unique design of incorporating a video input port, via Mini DisplayPort, allows users to take full advantage of their discrete NVIDIA or AMD Graphics Cards. By merging the performance of these discrete cards with Thunderbolt™ 3 users can now leverage the fast data transfer speeds and latest gaming technologies into a single Thunderbolt™ (USB Type-C™) cable.
    Note: Product features may vary by model. Photo for reference only.
    Graphics Support for Thunderbolt™ 3

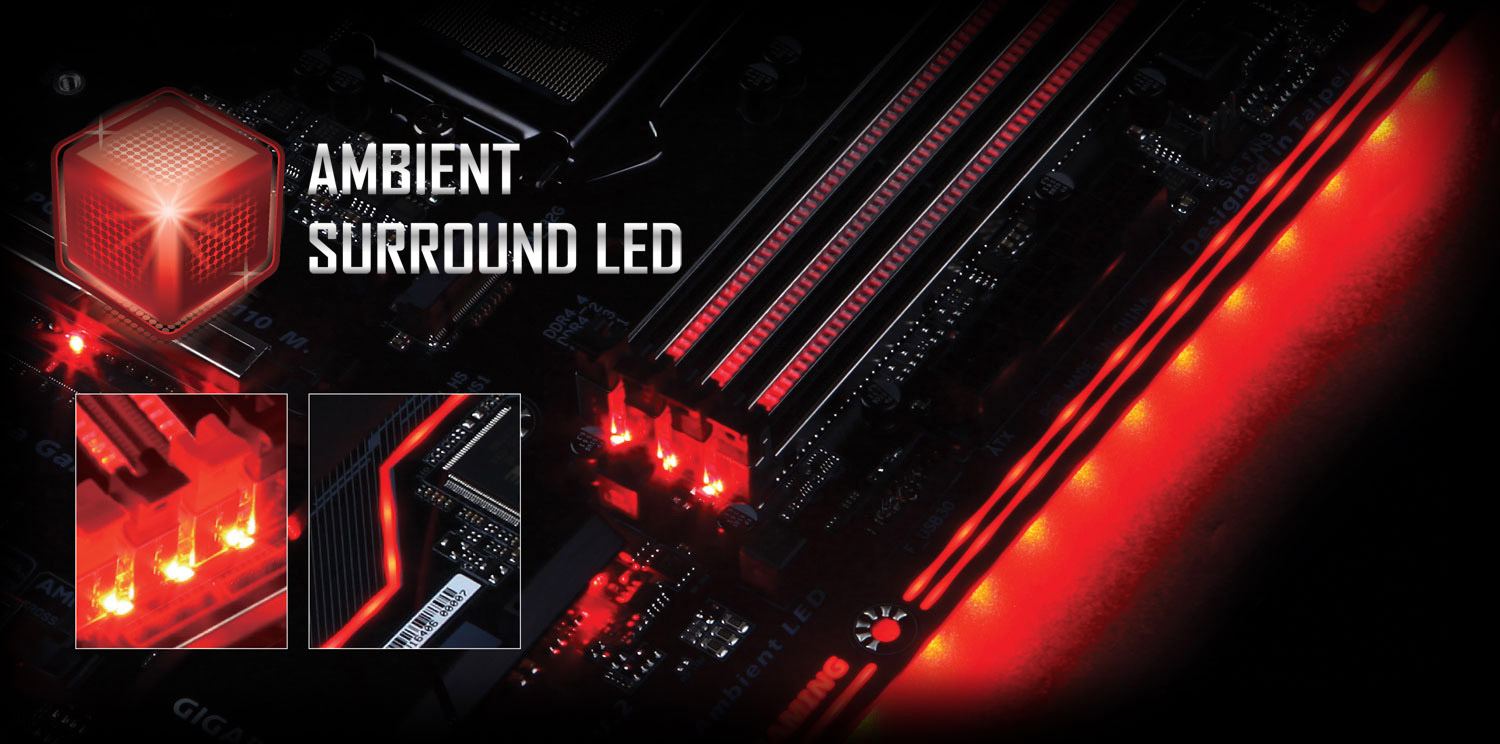

  • Ambient Surround LED
    Set the Color that Matches Your Style
    Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With a redesigned Ambient LED application, the user has complete control over the LEDs which surround the motherboard.
    Ambient Surround LED
  • Dual Hybrid Fan Headers
    Precise PWM and Voltage Control for Water pumps or Fans

    Many of today’s modern computers feature water cooling to ensure that the CPU or graphics cards stay cool and quiet while they are put under heavy load. In order to provide the best support for water cooling solutions, GIGABYTE has equipped its X99/Z170 motherboards with an additional water pump power header. This allows the user to have full control over two water pumps or fans. An additional benefit of these headers with GIGABYTE’s motherboards is the option to choose between voltage calibration or PWM modes.

    Photo for reference only. Water pumps and accessories not included.
    Dual Hybrid Fan Headers

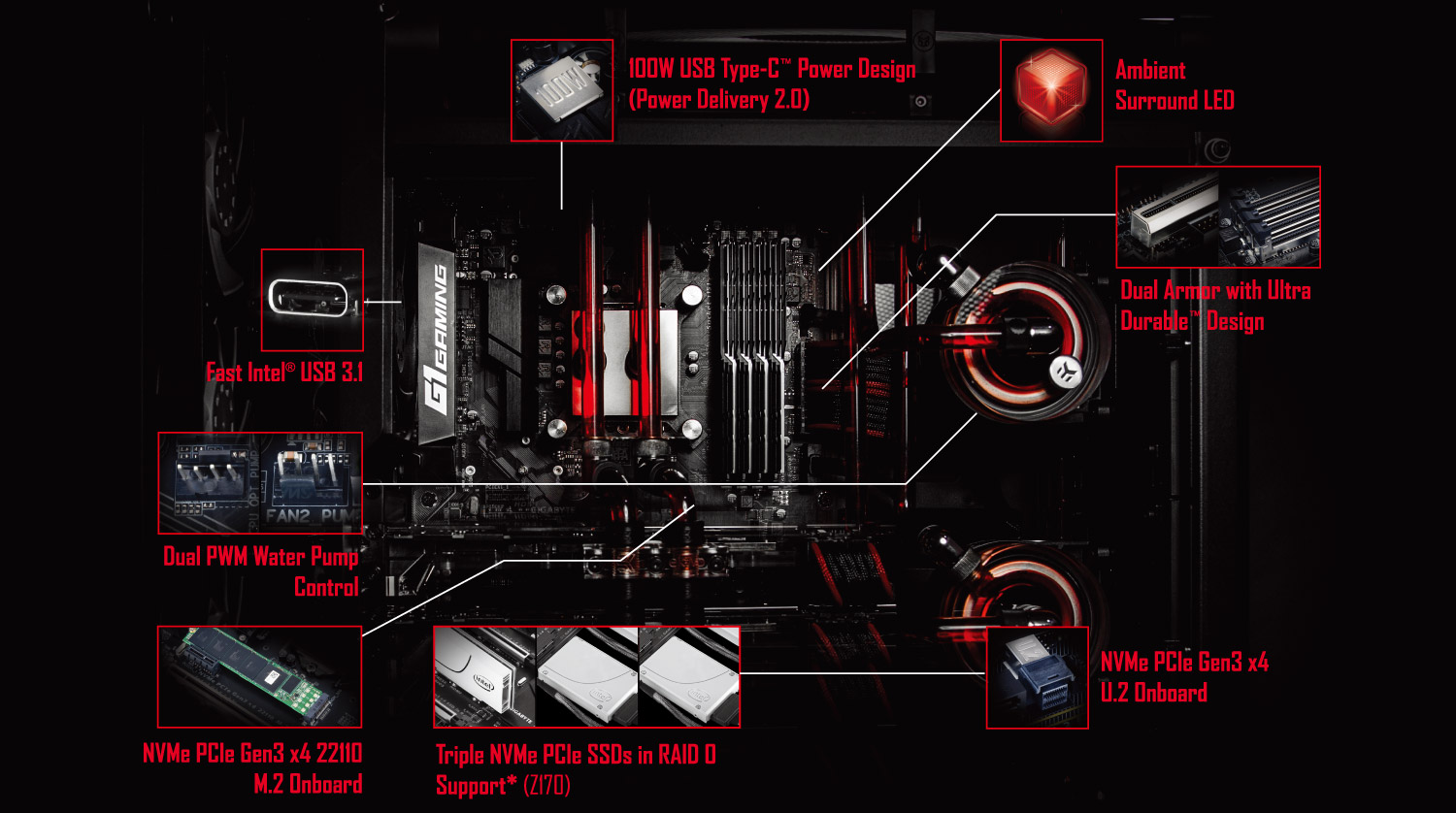

  • Customization Features and Water Cooling Support
    Product features may vary by model. Photo for reference only. Water pumps, SSDs, and accessories not included.
    Customization Features and Water Cooling Support
  • Immersive VR
    Gaming Experience
    > VR requires 30% more performance than Full HD graphics for a steady 60FPS or greater.
    > Only Gaming PCs can provide the best VR experience.
    To create a seamless VR experience GIGABYTE Motherboards offer the best features to make your virtual reality feel like your actual reality.

    With technologies such as Thunderbolt™ 3 to transfer data and video, NVMe support via M.2 or U.2, and a one piece metal shielding to brace for heavier discrete graphics cards its obvious that GIGABYTE has the tools you need to start your journey in VR. To set the mood GIGABYTE Motherboards include Ambient Surround LED to put you in the center of action.
    Recommended configuration for VR Gaming PC
    - Graphics Card: NVIDIA GTX 970 / AMD R9 290 or greater, Compatible HDMI 1.3 video output
    - CPU: Intel i5-6600K equivalent or greater
    - Motherboard: GIGABYTE X99/Z170/H170/B150 motherboards
    - Memory: 8GB RAM or greater
    - USB Ports:3x USB 3.0 ports plus 1x USB 2.0 port or greater
    - OS: Windows 7 SP1 64-bit or newer
    Any copyrighted images or trademarks displayed are the property of their respective owners and are shown for reference purposes only. Reference herein does not constitute or imply affiliation or endorsement of Gigabyte products by the respective trademark owners. VR Gaming photo for reference only.
    Immersive VR Gaming Experience
  • PURE SPEED, MORE POWER
    Exclusively on GIGABYTE Powered Motherboards

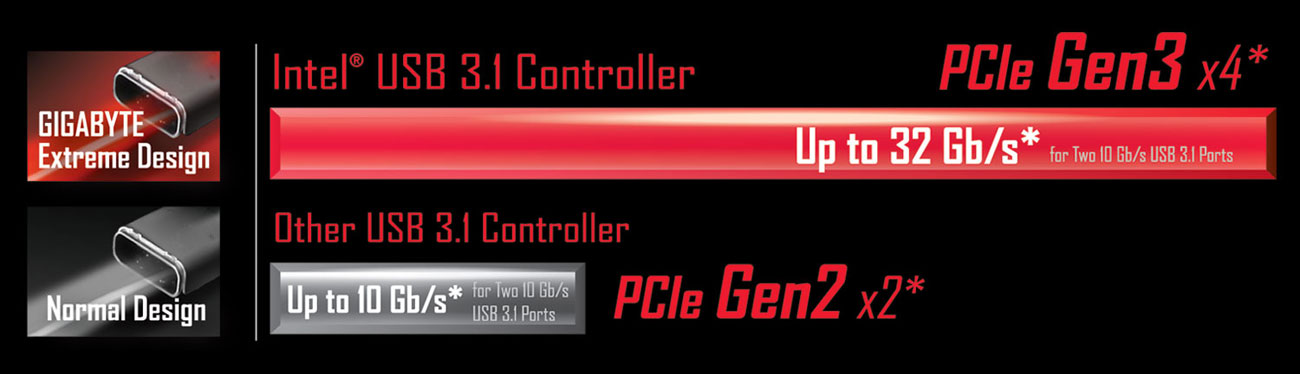

    Intel® USB 3.1 + Power Delivery 2.0
    The Intel® USB 3.1 controller (Alpine Ridge) utilizes 4 PCIe Gen3 lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.
    *Max. bandwidth allocated for the controller may vary by model.
    Bandwidth design for the controller
    Intel® USB 3.1

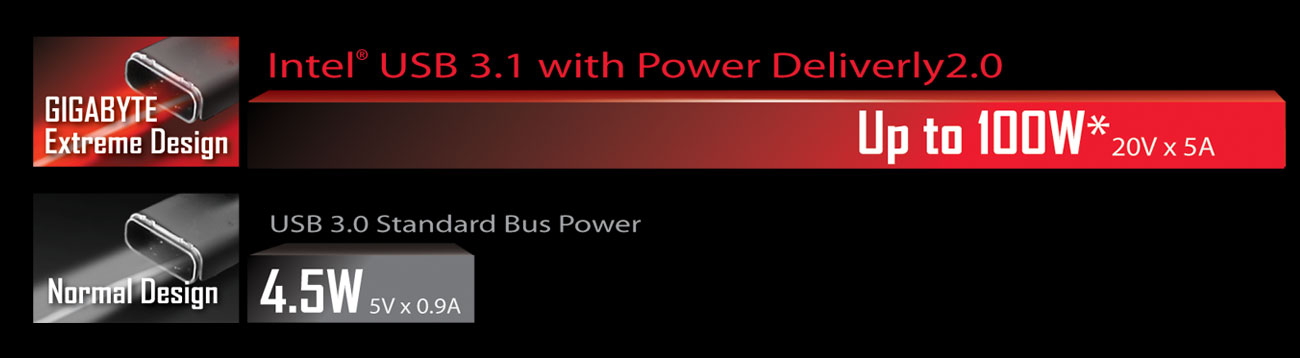

  • 100W USB Type-C™
    Power and Charge From USB Type-C With Power Delivery 2.0 Support
    Redesigned to take full advantage of all the features that USB Type-C can support, GIGABYTE’s new Z170 motherboards with Intel’s USB 3.1 controller not only supports USB 2.0, 3.0, and 3.1, but also completely supports Power Delivery 2.0. This means users are able to get up to 100 watts through their Intel powered USB Type-C port. This opens the door for users looking to clean up their cable cutter and power or recharge their devices through this universal connector, the Type-C Port.
    100W USB Type-C™
  • 2-Way SLI™ / CrossFire™ Multi-Graphics

    Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

    GIGABYTE Design By spacing the graphics cards in multi-graphics configurations, users are now able to obtain maximum airflow between cards.
    2-Way SLI™ / CrossFire™ Multi-Graphics

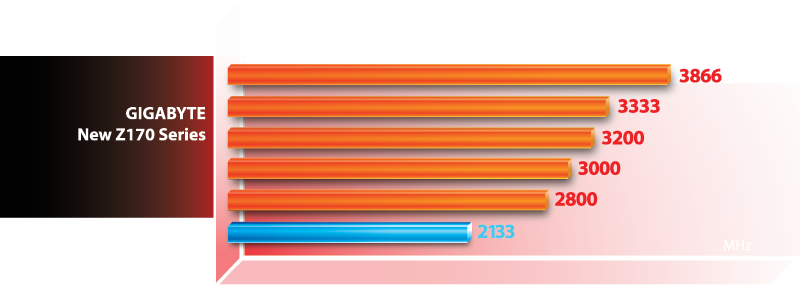

  • Support for DDR4 XMP Up to 4000MHz and Beyond*
    DDR4 memory modules are available at a stock frequency of 2133MHz, but memory vendors encode XMP profiles which can automatically modify the frequency and timings of the supported memory modules to work in par with your CPU. With the X99 Series, GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 3400MHz and beyond.
    What is XMP?
    The synchronization of the memory modules with the CPU is crucial for good performance of your system. DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

    * XMP Profile support may vary depending on memory module.
    Support for DDR4 XMP Up to 3866MHz

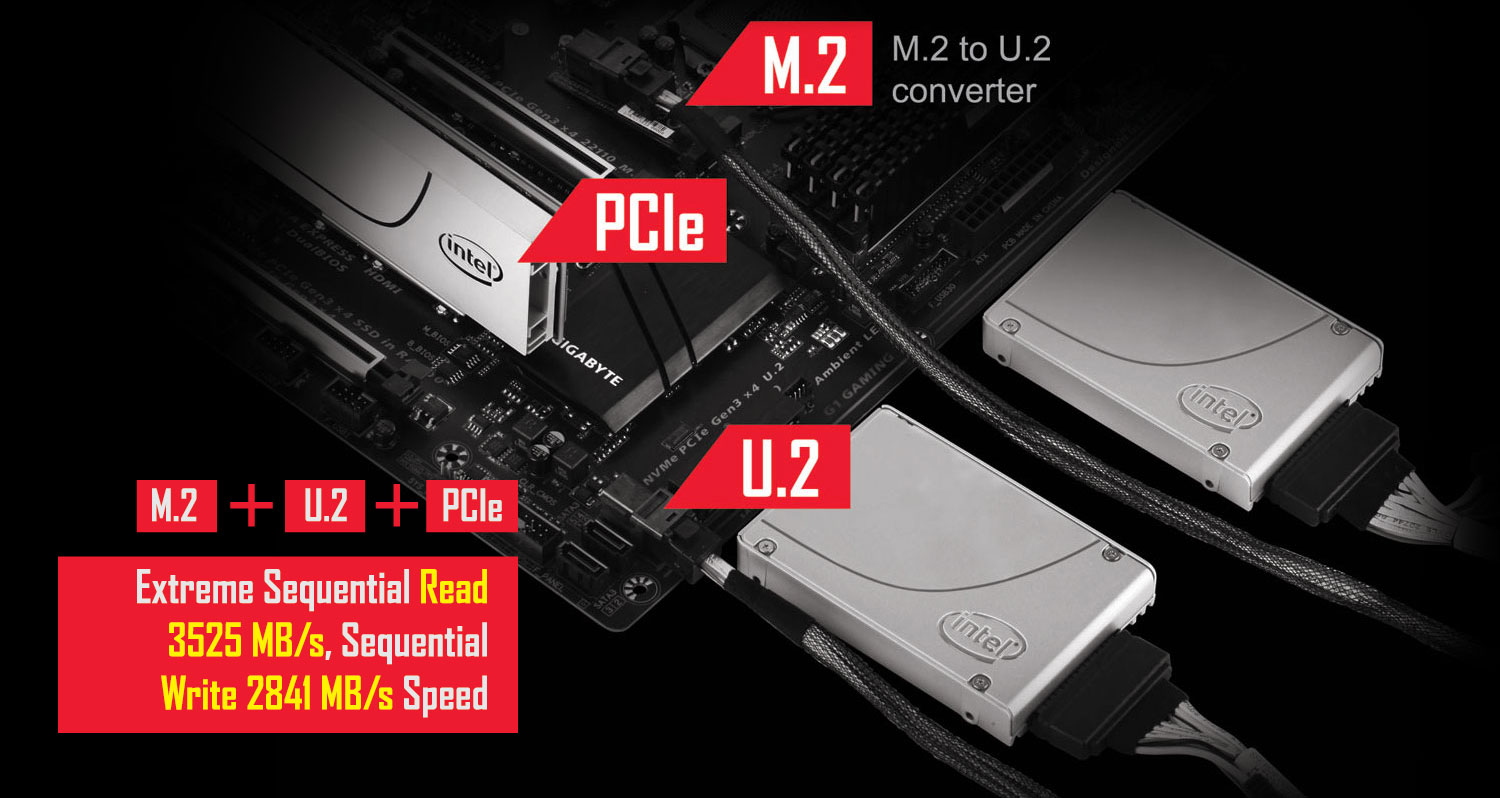

  • Triple NVMe SSDs in RAID 0 Support
    Extreme Performance with Gen.3 x4 NVMe PCIe SSDs
    GIGABYTE’s Z170 motherboards offers the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. GIGABYTE’s unique design supports up to three Intel® 750 Series NVMe PCIe SSDs which can be configured in RAID for record speeds of up to 3525 MB/s (Sequential Read), making GIGABYTE the obvious choice for the ultimate PC.
    Photo for reference only. SSDs, Cables, and M.2 to U.2 converter are not included.
    Triple NVMe SSDs in RAID 0 Support
  • NVMe PCIe Gen3 x4 U.2 Onboard
    NVMe Performance for PCIe SSDs
    The new Intel 750 series SSDs offer an incredible increase in performance over SATA drives. Using the NVMe protocol which takes advantage of the fast bandwidth of PCIe Gen3 x4 lanes (32 Gb/s), the drives are a clear advantage for users looking to boot their OS faster, load their games in a flash and access large files without waiting. By implementing the U.2 port onboard to support the 2.5" Intel 750 Series drive, GIGABYTE ensures that the users can benefit from the best performance.

    Photo for reference only.
    SSDs and cables not included.
    NVMe PCIe Gen3 x4 U.2 Onboard
  • Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
    GIGABYTE’s M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.
    Photo for reference only. M.2 SSDs and cables not included.
    U.2 Onboard
  • GIGABYTE Patented Double Locking Bracket
    GIGABYTE Patented Double Locking Bracket
  • Ultra Durable™ PCIe Armor
  • Ultra Durable™ PCIe Armor

    Enhanced Strength PCIe Design, Support for Heavy Graphics Cards For Extreme / VR Gaming Station
    Dual Armor DIMM and PCIe Metal Shielding
    Never worry about your heavy graphics card damaging your motherboard again. GIGABYTE’s proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a fool proof option which can save your PC’s life.
    Ultra Durable™ PCIe Armor
  • Intel® GbE LAN with cFosSpeed
    Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in a crowded LAN environments.
    Intel® GbE LAN with cFosSpeed
  • GIGABYTE Patented DualBIOS™ (UEFI) Design
    GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', Protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.
    DualBIOS
  • Long Lifespan Durable Black™ Solid Caps
    GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.


    Long Lifespan Durable Black™ Solid Caps
  • 15μ Gold Plated CPU Socket Design
    GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
    15μ Gold Plated CPU Socket Design
  • Supports High-Performance EK Monoblock
    Designed and engineered in co-operation with EK Water Blocks, this monoblock uses the award winning EK-Supremacy EVO cooling engine to ensure the best possible CPU cooling. It directly cools the CPU and power regulation (MOSFET) module as water flows directly over all critical areas. It is a very high flow water block that can be easily used with a system using weaker water pumps.

    Find out more at EKWB :
    Acetal+Nickel:
    https://www.ekwb.com/shop/ek-fb-ga-z170x-ultra-monoblock-acetal-nickel
    Nickel :
    https://www.ekwb.com/shop/ek-fb-ga-z170x-ultra-monoblock-nickel
    Photo for reference only.
    Supports High-Performance EK Monoblock
