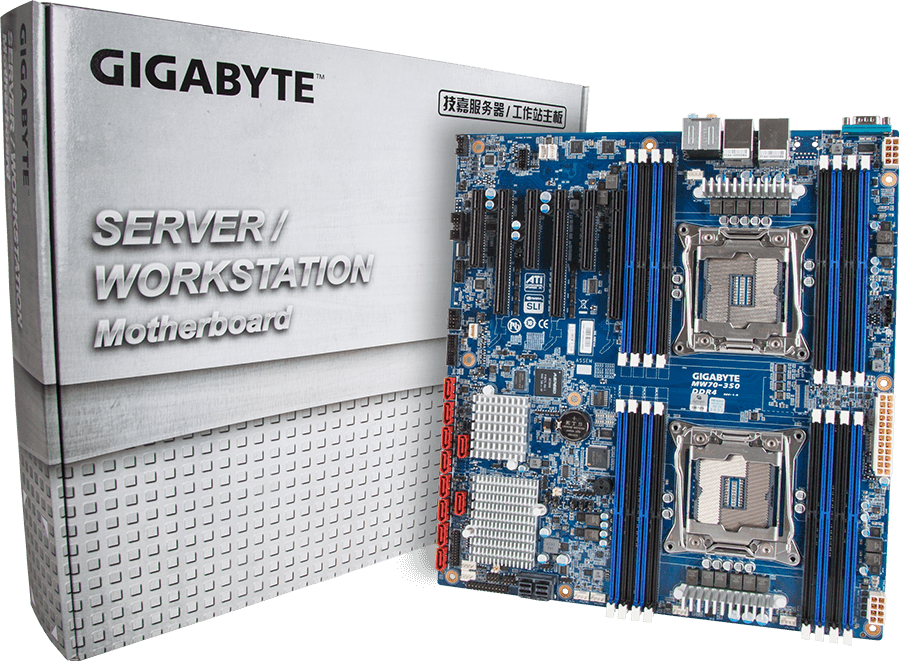

MW70-3S0Legacy | Firmware updates supported

E-ATX / SSI EEB
305W x 330D (mm)

Intel^® Xeon^® E5-2600 V3 processors
Intel^® Xeon^® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.

2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Intel^® C612

16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz

2 x GbE LAN ports (Intel^® I210)

-

Realtek^® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations

2 x Mini-SAS (for 8 x SAS 12Gb/s)
LSI SAS 3008 controller

8 x SATA III 6Gb/s ports
2 x SATA III 6Gb/s port supporting SATA DOM

Intel^® SATA RAID 0/1/10/5
LSI^® SAS RAID 0/1/1E/10

1 x PCIe x16 (Gen3 x16 bus) slot
2 x PCIe x16 (Gen3 x8 bus) slots
2 x PCIe x8 (Gen3 x8 bus) slots
1 x PCIe x8 (Gen3 x4 bus) slot

or (via PCIe switch):

3 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x8 (Gen3 x4 bus) slot
Support NVIDIA^® SLI™ & AMD^® CrossFireX™ technologies (2-way, 3-way)

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x Mini-SAS ports
10 x SATA III 6Gb/s ports
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x Front audio header
1 x Serial header
1 x TPM header
2 x SATA SGPIO headers
1 x Front panel header
1 x HDD back plane board header
1 x JTAG PLD header
1 x LSI UART header
1 x Chassis intrusion header
1 x JTAG BMC header
2 x LAN LED headers
1 x S/PDIF-Out header
1 x S/PDIF-In header
2 x SATA DOM jumpers
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x Clear CMOS jumper
1 x BMC FRB jumper
1 x S3 mask jumper
1 x PMBus connector
1 x IPMB connector

2 x USB 3.0
2 x USB 2.0
1 x Serial
2 x RJ45
5 x Audio jacks
1 x Optical S/PDIF-Out

1 x TPM header

Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Windows 7 Ultimate SP1 (x86/x64)
Windows 8 Enterprise (x86/x64)
Windows 8.1 Enterprise (x86/x64)
Windows 10 (x64)

Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)

SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)

Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)

VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1

-

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
ŠNon-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

1 x MW70-3S0
1 x User manual
1 x I/O shield
2 x SATA III 6Gb/s cables (500mm)
1 x CrossFire™ bridges
1 x 2-SLI™ bridge
1 x 3-SLI™ bridge
Box dimensions: 409 x 355 x 78 mm

10 x MW70-3S0
10 x I/O shields
Carton dimensions: 473 x 600 x 495 mm

Retail: 9AW703S0MR-00
Bulk: 9MW703S0NR-00
