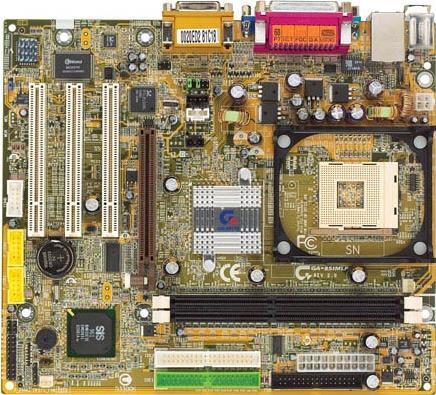

GA-8SIMLP (Rev. 2.x)

page.modelPage.tab.specpage.modelPage.tab.supportpage.modelPage.tab.consumer.newsAwardspage.modelPage.tab.whereToBuy

page.modelPage.tab.spec

  • Processor
    1. Socket 478 for Intel® new 0.13 micron-process Pentium® 4 processor
    2. 400 MHz FSB
  • Front Side Bus
    1. 400 MHz
  • Styrkrets
    1. North bridge: SiS650GX IGUI Host Memory Controller
    2. South bridge: SiS961(B) MuTIOL® Media I/O
    3. REALTEK RTL8100L LAN chip
    4. Sigmatel 9721 AC97 audio codec for rev 2.0.
      Realtek ALC101 AC97 audio codec for rev 2.1 and 3.x.
  • Minne
    1. Type: DDR266(PC2100)/DDR200(PC1600) - 184pin
    2. Max capacity: Up to 2GB by 2 DIMM slots
  • Expansionsplatser
    1. 1 x AGP slot (4x/2x-AGP 2.0 compliant)
    2. 3 x PCI slots (PCI 2.2 compliant)
  • Interna I/O kontakter
    1. 2 x UDMA ATA 133/100/66 Bus Master IDE ports
    2. 2 x USB 1.1 connectors (4 ports by cable with rear bracket)
    3. 1 x FDD port
  • Kontakter på baksidan
    1. 1 x VGA port
    2. 2 x USB 1.1 ports
    3. 1 x RJ45 LAN port
    4. PS/2 Keyboard / Mouse
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    6. 1 x COM port
    7. 1 x Game/Midi Port
  • Hårdvaru visning
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report power-in voltage, CPU voltage, and fan speed.
  • BIOS
    1. 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
  • Bundlad programvara
    1. Anti-Virus OEM version
    2. GIGABYTE Windows Utility Manager
  • Formfaktor
    1. Micro-ATX form factor, 4 layers PCB (24.4 x 22.7 cm)
  • Processor / AGP / DIMM inställningar
    1. CPU FSB adjustable (1MHz-linear) via BIOS
    2. Multiplier adjustable via BIOS
  • Drivrutiner
    1. SiS 650GX VGA driver
    2. REALTEK LAN driver
    3. SiS 7012 Audio driver(version 2.0)
    4. Realtek Audio Driver(version 2.1 and after)
  • Övriga funktioner
    1. @BIOS™, EasyTune™ 4, Q-Flash™, GMC™
    2. Suspend to RAM (STR)
    3. Supports USB KB / MS wake up from S3
    4. Poly fuse for keyboard over-current protection
  • Effekt
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • Anmärkningar
  • *Realtek Audio driver for M/B Rev. 2.1 and Rev 3.x
    *SiS 7012 Audio driver for M/B Rev 2.0
  • Processor
    1. Socket 478 for Intel® new 0.13 micron-process Pentium® 4 processor
    2. 400 MHz FSB
  • Front Side Bus
    1. 400 MHz
  • Styrkrets
    1. North bridge: SiS650GX IGUI Host Memory Controller
    2. South bridge: SiS961(B) MuTIOL® Media I/O
    3. REALTEK RTL8100L LAN chip
    4. Sigmatel 9721 AC97 audio codec for rev 2.0.
      Realtek ALC101 AC97 audio codec for rev 2.1 and 3.x.
  • Minne
    1. Type: DDR266(PC2100)/DDR200(PC1600) - 184pin
    2. Max capacity: Up to 2GB by 2 DIMM slots
  • Expansionsplatser
    1. 1 x AGP slot (4x/2x-AGP 2.0 compliant)
    2. 3 x PCI slots (PCI 2.2 compliant)
  • Interna I/O kontakter
    1. 2 x UDMA ATA 133/100/66 Bus Master IDE ports
    2. 2 x USB 1.1 connectors (4 ports by cable with rear bracket)
    3. 1 x FDD port
  • Kontakter på baksidan
    1. 1 x VGA port
    2. 2 x USB 1.1 ports
    3. 1 x RJ45 LAN port
    4. PS/2 Keyboard / Mouse
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    6. 1 x COM port
    7. 1 x Game/Midi Port
  • Hårdvaru visning
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report power-in voltage, CPU voltage, and fan speed.
  • BIOS
    1. 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
  • Bundlad programvara
    1. Anti-Virus OEM version
    2. GIGABYTE Windows Utility Manager
  • Formfaktor
    1. Micro-ATX form factor, 4 layers PCB (24.4 x 22.7 cm)
  • Processor / AGP / DIMM inställningar
    1. CPU FSB adjustable (1MHz-linear) via BIOS
    2. Multiplier adjustable via BIOS
  • Drivrutiner
    1. SiS 650GX VGA driver
    2. REALTEK LAN driver
    3. SiS 7012 Audio driver(version 2.0)
    4. Realtek Audio Driver(version 2.1 and after)
  • Övriga funktioner
    1. @BIOS™, EasyTune™ 4, Q-Flash™, GMC™
    2. Suspend to RAM (STR)
    3. Supports USB KB / MS wake up from S3
    4. Poly fuse for keyboard over-current protection
  • Effekt
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • Anmärkningar
  • *Realtek Audio driver for M/B Rev. 2.1 and Rev 3.x
    *SiS 7012 Audio driver for M/B Rev 2.0
