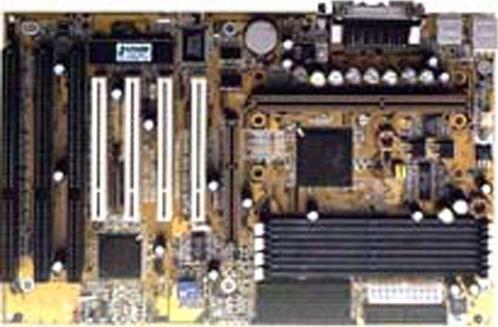

GA-686LX4

SpecificationsSupportWhere to Buy

Specifications

  • Procesor
    1. Intel Pentium ® II Processor 233MHz-333MHz.
    2. Slot 1 Socket for Future Expansion
  • Čipset
    1. Intel 82440 LX AGPset
    2. Winbound 83977 I/O (1Mb/S)
    3. Winbound 83781 Health Chip
  • Pamäť
    1. CPU Built-in 256KB/512KB L2 cache
    2. 4 x 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB DIMM Module
    4. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    5. Supports 8MB to 1GB DRAM Size
  • Rozširujúce sloty
    1. 4 x PCI 32-bit slots, PCI 2.1 compliant
    2. 3 x ISA 16-bit slots
    3. 1x AGP (1x & 2x Mode,66/133MHz) slot
    4. Support Cretive PCI Sound Card SB-Link
  • I/O ovládač
    1. 1x floppy port (360KB-2.88MB)
    2. 2x serial ports (16550 high-speed)
    3. 1x parallel port (EPP/ECP)
    4. PS/2 Keyboard
    5. PS/2 Mouse
    6. 2x USB
  • H/W monitorovanie
    1. Temperature Sensor Under Processor Heatsink
    2. Speaker Alarm When CPU Overheats or CPU Fan Failure
    3. Auto Speed Down When CPU Overheats
    4. System Health Status Detect & Report by BIOS, LDCM® & Winbond Health program.
    5. Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions
    3. LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
    4. Auto-detect & Report System Health Status
  • Rozmery
    1. ATX Form Factor, 4 layer PCB
    2. ATX Connector on Board
    3. Double Deck ATX Back Panel
  • Driver
    1. Intel Ultra DMA/33 Bus Master IDE Driver
    2. Intel LDCMR Utility
    3. Winbound Health Program
    4. Triones Ultra DMA/33 Bus Master IDE Driver ( & Intel)
    5. Suspend to Disk Utility (IDE ONLY)
  • Procesor
    1. Intel Pentium ® II Processor 233MHz-333MHz.
    2. Slot 1 Socket for Future Expansion
  • Čipset
    1. Intel 82440 LX AGPset
    2. Winbound 83977 I/O (1Mb/S)
    3. Winbound 83781 Health Chip
  • Pamäť
    1. CPU Built-in 256KB/512KB L2 cache
    2. 4 x 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB DIMM Module
    4. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    5. Supports 8MB to 1GB DRAM Size
  • Rozširujúce sloty
    1. 4 x PCI 32-bit slots, PCI 2.1 compliant
    2. 3 x ISA 16-bit slots
    3. 1x AGP (1x & 2x Mode,66/133MHz) slot
    4. Support Cretive PCI Sound Card SB-Link
  • I/O ovládač
    1. 1x floppy port (360KB-2.88MB)
    2. 2x serial ports (16550 high-speed)
    3. 1x parallel port (EPP/ECP)
    4. PS/2 Keyboard
    5. PS/2 Mouse
    6. 2x USB
  • H/W monitorovanie
    1. Temperature Sensor Under Processor Heatsink
    2. Speaker Alarm When CPU Overheats or CPU Fan Failure
    3. Auto Speed Down When CPU Overheats
    4. System Health Status Detect & Report by BIOS, LDCM® & Winbond Health program.
    5. Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions
    3. LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
    4. Auto-detect & Report System Health Status
  • Rozmery
    1. ATX Form Factor, 4 layer PCB
    2. ATX Connector on Board
    3. Double Deck ATX Back Panel
  • Driver
    1. Intel Ultra DMA/33 Bus Master IDE Driver
    2. Intel LDCMR Utility
    3. Winbound Health Program
    4. Triones Ultra DMA/33 Bus Master IDE Driver ( & Intel)
    5. Suspend to Disk Utility (IDE ONLY)

* Pojmy HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress a logá HDMI sú ochranné známky alebo registrované ochranné známky spoločnosti HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
