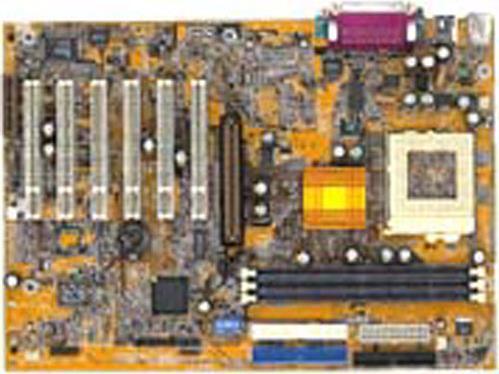

GA-6OXC (Rev. 1.1)

SpecificationsSupportWhere to Buy

Specifications

  • Procesor
    1. Socket 370 for Intel® FC-PGA Pentium® III or other compatible processors
    2. Supports Auto/66/100/133 MHz FSB (Front Side Bus)
  • Čipset
    1. Intel® 815P AGPset
    2. Intel® FW82801AA (ICH)
    3. iTE IT8712F Super I/O & health chip
  • Pamäť
    1. Supports up to 512 MB SDRAM memory
    2. 3 DIMMs 168-pin sockets
    3. Supports 32/64/128/256/512 MB SDRAM modules
  • Rozširujúce sloty
    1. 1 x AGP slot supports 2X/4X mode & AGP 2.0 compliant
    2. 6 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x AMR slot (reversed)
  • I/O ovládač
    1. 2 x UDMA ATA 66/33 IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 x USB ports on board
    4. 1 x SCR (Smart Card Reader) connector
    5. IrDA TX / RX header
  • H/W monitorovanie
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fan power & speed detection connectors
    3. System health status detect & report by BIOS
    4. H/W detect & report power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. 2M bit flash ROM BIOS, enhanced ACPI feature for PC98/Win98/Win2000/ WinME compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. Auto-detect & report system health status
    4. Supports @BIOS™ Live Update
  • Rozmery
    1. ATX form factor , 4 layer PCB (30.5*21.5 cm)
  • Driver
    1. Gigabyte Windows Manager Utility
    2. Gigabyte EasyTune III™ and @BIOS™ utility
    3. Intel® LDCM® and 815 patch utility for Windows
    4. Hardware monitor utility
  • Other Features
    1. Supports Wake-On-LAN (WOL)
    2. Supports Internal / External Modem Ring On
    3. Includes 3 fan power connectors
    4. Poly fuse for keyboard over-current protection
    5. Supports EasyTune III™
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 95/98/Me/2000/NT shut down & Switch
  • Procesor
    1. Socket 370 for Intel® FC-PGA Pentium® III or other compatible processors
    2. Supports Auto/66/100/133 MHz FSB (Front Side Bus)
  • Čipset
    1. Intel® 815P AGPset
    2. Intel® FW82801AA (ICH)
    3. iTE IT8712F Super I/O & health chip
  • Pamäť
    1. Supports up to 512 MB SDRAM memory
    2. 3 DIMMs 168-pin sockets
    3. Supports 32/64/128/256/512 MB SDRAM modules
  • Rozširujúce sloty
    1. 1 x AGP slot supports 2X/4X mode & AGP 2.0 compliant
    2. 6 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x AMR slot (reversed)
  • I/O ovládač
    1. 2 x UDMA ATA 66/33 IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 x USB ports on board
    4. 1 x SCR (Smart Card Reader) connector
    5. IrDA TX / RX header
  • H/W monitorovanie
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fan power & speed detection connectors
    3. System health status detect & report by BIOS
    4. H/W detect & report power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. 2M bit flash ROM BIOS, enhanced ACPI feature for PC98/Win98/Win2000/ WinME compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. Auto-detect & report system health status
    4. Supports @BIOS™ Live Update
  • Rozmery
    1. ATX form factor , 4 layer PCB (30.5*21.5 cm)
  • Driver
    1. Gigabyte Windows Manager Utility
    2. Gigabyte EasyTune III™ and @BIOS™ utility
    3. Intel® LDCM® and 815 patch utility for Windows
    4. Hardware monitor utility
  • Other Features
    1. Supports Wake-On-LAN (WOL)
    2. Supports Internal / External Modem Ring On
    3. Includes 3 fan power connectors
    4. Poly fuse for keyboard over-current protection
    5. Supports EasyTune III™
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 95/98/Me/2000/NT shut down & Switch

* Pojmy HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress a logá HDMI sú ochranné známky alebo registrované ochranné známky spoločnosti HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
