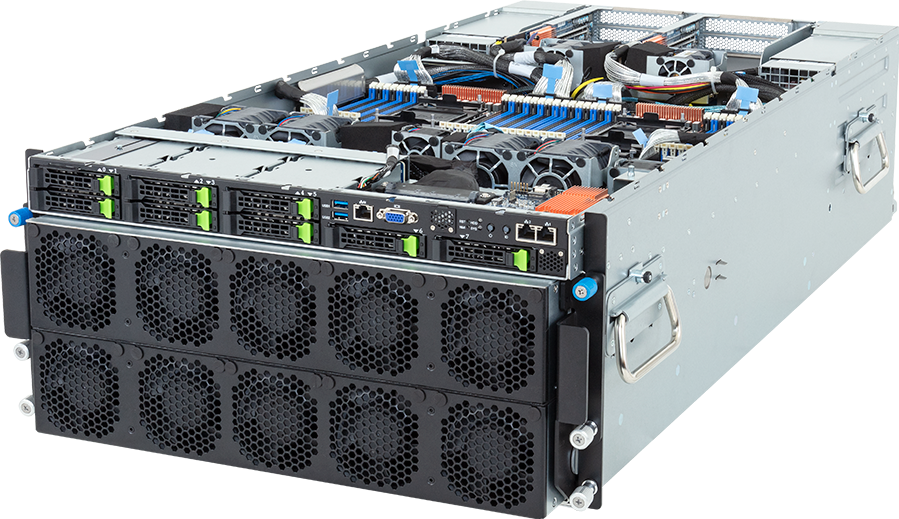

G593-SX1-AAX1

Other SKUCompare

AAX1Air Cooling

LAX1DLC

5U
447 x 219.7 x 945

MSB3-G41

5th Generation Intel^® Xeon^® Scalable Processors
4th Generation Intel^® Xeon^® Scalable Processors
Intel^® Xeon^® CPU Max Series

Dual processor, TDP up to 350W

^[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

2 x LGA 4677
Socket E

Intel^® C741

32 x DIMM slots
DDR5 memory supported
8-Channel memory per processor

5th Gen Intel^® Xeon^®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

4th Gen Intel^® Xeon^®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Intel^® Xeon^® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Front (I/O board - CDCG120):
2 x 10Gb/s LAN (1 x Intel^® X710-AT2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN

^[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.

Integrated in ASPEED^® AST2600
- 1 x VGA port

Front hot-swap:
8 x 2.5" Gen5 NVMe/SATA/SAS-4 ^[1]
- (NVMe from PEX89104)

^[1] SAS card is required to support SAS drives.

Require SAS add-in cards

Intel^® SATA RAID 0/1/10/5

Support optional RAID add-in cards

8 x AMD Instinct™ MI300X OAM GPUs

Extension Board CPBG044 x 2:
- 8 x LP x16 (Gen5 x16), from PEX89104

Riser Card CPBGD20 x 2:
- 4 x FHHL x16 (Gen5 x16), from PEX89048

I/O board - CDCG120:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

MLAN board - CDB66:
1 x MLAN port

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

4+2 3000W 80 PLUS Titanium redundant power supplies ^[1]

AC Input:
- 100-120V~/ 16A, 50/60Hz
- 200-240V~/ 16A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1320W/ 100-110V~
+54V/ 24.4A
+12Vsb/ 3A
- Max 1500W/ 111-120V~
+54V/ 27.8A
+12Vsb/ 3A
- Max 2810W/ 200-207V~
+54V/ 52A
+12Vsb/ 3A
- Max 3000W/ 208-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A

^[1] The system power supply requires C19 power cord.

ASPEED^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Please refer to OS compatibility table in support page

Motherboard:
2 x 40x40x28mm (25,000rpm)
4 x 60x60x56mm (24,000rpm)

PCIe slots:
4 x 40x40x28mm (25,000rpm)
2 x 40x40x56mm (32,000rpm)

GPU tray:
16 x 80x80x80mm (17,000rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

1200 x 800 x 485 mm

1 x G593-SX1-AAX1
2 x CPU heatsinks
6 x Carriers
1 x L-shape Rail kit

- Barebone with AMD module: 6NG593SX1DR000ABX1*
- Motherboard: 9MSB3G41NR-000*
- L-shape Rail kit: 25HB2-A96102-K0R
- CPU heatsink: 25ST1-24320H-M1R
- Backplane board - CBPG680: 9CBPG680NR-00*
- Fan module 40x40x28mm: 25ST2-44282D-D0R
- Fan module 40x40x56mm: 25ST2-40562M-A0R
- Fan module 60x60x56mm: 25ST2-665620-S1R
- Fan module 80x80x80mm: 25ST2-888032-S1R
- Fan module 80x80x80mm: 25ST2-808037-S1R
- Riser card - CPBGD20: 9CPBGD20NR-00*
- I/O board - CDCG120: 9CDCG120UR-00*
- PCIe extension board - CPBG044: 9CPBG044NR-00*
- PCIe switch board - CPBG903: 9CPBG903NR-00*
- Rear MLAN board - CDB66: 9CDB66NR-00*
- Power supply: 25EP0-203K00-L0S
