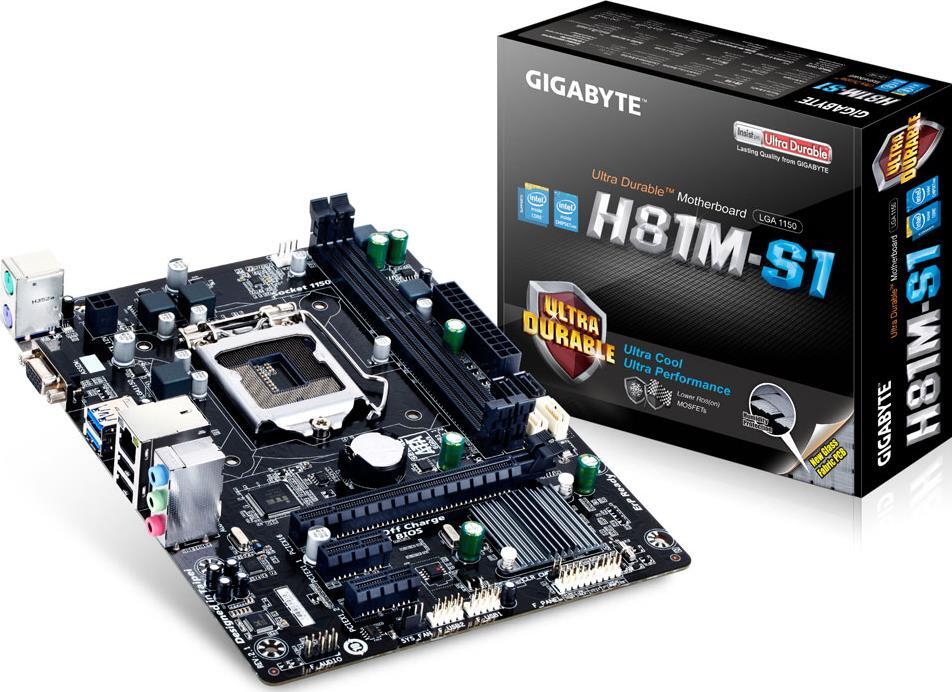

GA-H81M-S1 (Rev. 2.1)

Rev. 2.1Rev. 1.0Rev. 2.0Rev. 2.2Rev. 3.x
Intel® H81 Chipset
ภาพรวมสเปคสินค้าการสนับสนุนข่าว & รางวัลWhere to Buy

สเปคสินค้า

  • Processor
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® H81 Express Chipset
  • Memory
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3 1600/1333 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor - Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
    2. Maximum shared memory of 1 GB
  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
    2. 2 x PCI Express x1 slots
      (The PCI Express slots conform to PCI Express 2.0 standard.)
  • IDE ATA
  • Chipset:
    1. 2 x SATA 6Gb/s connectors (SATA3 0/1)
    2. 2 x SATA 3Gb/s connectors (SATA2 2/3)
  • USB
  • Chipset:
    1. 2 x USB 3.0/2.0 ports on the back panel
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 2 x SATA 6Gb/s connectors
    4. 2 x SATA 3Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x system fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 2 x USB 2.0/1.1 headers
    10. 1 x Clear CMOS jumper
  • Rear Panel I/O
    1. 1 x PS/2 mouse port
    2. 1 x PS/2 Keyboard port
    3. 1 x D-Sub port
    4. 2 x USB 3.0/2.0 ports
    5. 2 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 32 Mbit flash
    2. Use of licensed AMI EFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for Q-Flash
    2. Support for Xpress Install
    3. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
      @BIOS
      EasyTune
      EZ Setup
      USB Blocker
      Smart TimeLock
      Smart Recovery 2
    4. Support for ON/OFF Charge
  • Bundle Software
    1. Norton® Internet Security (OEM version)
  • Operating System
    1. Support for Windows 10/8.1/8/7
  • Form Factor
    1. Micro ATX Form Factor; 22.6cm x 17cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Processor
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. Intel® H81 Express Chipset
    • Memory
      1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR3 1600/1333 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
    • Integrated Graphics Processor - Intel® HD Graphics support:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
      2. Maximum shared memory of 1 GB
    • Audio
      1. Realtek® ALC887 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    • LAN
      1. Realtek® GbE LAN chip (10/100/1000 Mbit)
    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16
      2. 2 x PCI Express x1 slots
        (The PCI Express slots conform to PCI Express 2.0 standard.)
    • IDE ATA
    • Chipset:
      1. 2 x SATA 6Gb/s connectors (SATA3 0/1)
      2. 2 x SATA 3Gb/s connectors (SATA2 2/3)
    • USB
    • Chipset:
      1. 2 x USB 3.0/2.0 ports on the back panel
      2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 2 x SATA 6Gb/s connectors
      4. 2 x SATA 3Gb/s connectors
      5. 1 x CPU fan header
      6. 1 x system fan header
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 2 x USB 2.0/1.1 headers
      10. 1 x Clear CMOS jumper
    • Rear Panel I/O
      1. 1 x PS/2 mouse port
      2. 1 x PS/2 Keyboard port
      3. 1 x D-Sub port
      4. 2 x USB 3.0/2.0 ports
      5. 2 x USB 2.0/1.1 ports
      6. 1 x RJ-45 port
      7. 3 x audio jacks (Line In, Line Out, Mic In)
    • I/O
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU/System overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 32 Mbit flash
      2. Use of licensed AMI EFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for Q-Flash
      2. Support for Xpress Install
      3. Support for APP Center
        * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
        @BIOS
        EasyTune
        EZ Setup
        USB Blocker
        Smart TimeLock
        Smart Recovery 2
      4. Support for ON/OFF Charge
    • Bundle Software
      1. Norton® Internet Security (OEM version)
    • Operating System
      1. Support for Windows 10/8.1/8/7
    • Form Factor
      1. Micro ATX Form Factor; 22.6cm x 17cm
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * คำว่ำ HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress และโลโก้ HDMI เป็ นเคร ื่องหมำยกำรค้ำหรือเครื่องหมำยกำรค้ำจดทะเบียนของ HDMI Licensing Administrator, Inc.
      * ข้อมูลเบื้องต้นมีใว้สำหรับอ้างอิงเท่านั้น GIGABYTE ขอสงวนสิทธิ์ในการปรับเปลี่ยนหรือแก้ไขเนื้อหาได้ตลอดเวลาโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
      * ประสิทธิภาพสูงสุดที่ใช้ในการประชาสัมพันธ์เป็นเพียงข้อมูลตามทฤษฎีจากผู้ผลิตชิพเซตที่เกี่ยวข้อง หรือองค์กรที่กำหนดคุณสมบัติอินเตอร์เฟส ประสิทธิภาพที่แท้จริงอาจแตกต่างกันโดยการตั้งค่าของระบบที่ไม่เหมือนกัน
      * เครื่องหมายการค้าและโลโก้คุณสมบัติต่างๆ เป็นของผู้ถือสิทธิ์นั้นๆ
      * เนื่องจากความต้องการหน่วยความจำมาตรฐานของสถาปัตยกรรมคอมพิวเตอร์ต่อหน่วยที่ไม่เหมือนกัน ดังนั้นขนาดหน่วยความจำที่จำเป็นอาจน้อยกว่าจำนวนที่ระบุไว้ก็ได้
