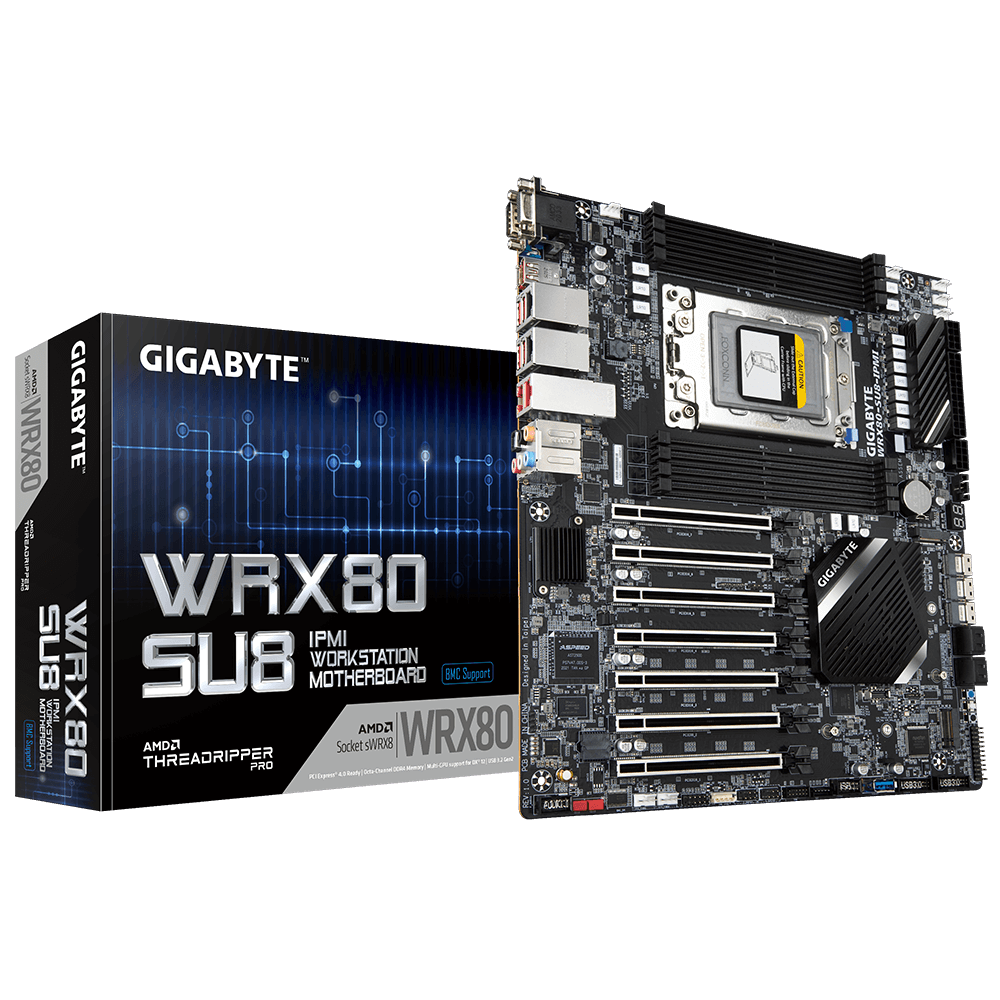

AMD WRX80 Motherboard with sWRX8 4094 Socket, 8-Channel DDR4 RDIMM 8 x DIMMs, Aspeed® AST2500 BMC, Dual M.2, Dual Intel® Server 10G and 1G LAN, 7 x PCIe 4.0 x16 Slots for multi cards

  • AMD Ryzen™ Threadripper™ PRO 3000WX Series Processors, sWRX8 4094 Socket
  • 8-Channel DDR4 RDIMM/LRDIMM 8 x DIMMs
  • Aspeed® AST2500 BMC
  • Dual Intel® Server 10G LAN and GbE LAN
  • 7 PCIe 4.0 x16 Slots for Multi-GPU, supports for DirectX® 12
  • Multiple storage interface: 4 SATA3 Ports, 3 SlimSAS ports (NVMe and SATA are available)
  • Next-gen transfer speeds: Dual M.2 (NVMe and SATA mode) and 6 USB 3.2 Gen2 including 1 Type-C
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
  • 120dB SNR AMP-UP Audio with ALC1220
SPEC OVERVIEW
PERFORMANCE
CONNECTIVITY
GIGABYTE Remote Management
AUDIO
ULTRA DURABLE
SPEC OVERVIEW
PERFORMANCE
CONNECTIVITY
GIGABYTE Remote Management
AUDIO
ULTRA DURABLE
1
8-Channel DDR4 RDIMM/LRDIMM 8 x DIMMs
2
6 x USB3.2 Gen2
(5 x Type-A + 1 x Type-C)
3
Dual 10GbE LAN (Intel® X550)
+ Dual 1GbE LAN (Intel® i210)
4
AST2500 BMC
and shared management port for remote management
5
AMD THREADRIPPER PRO LGA 4094 Socket sWRX8
6
7 x PCIe x16 4.0 Slots for multi cards
7
2 x M.2 Connectors for SSD
(PCIe 4.0 x4 or SATA3 mode)
8
3 x SlimSAS Connectors for SSD
(PCIe 4.0 x4 or SATA3 x4 mode)
9
4 x SATA3 Ports
PERFORMANCE
PCIe 4.0 Design
WRX80-SU8-IPMI equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, Switches that are specifically designed for PCIe 4.0. There will be no compromised on PCIe 4.0 performance on PCIe, M.2 and SlimSAS interface.
Low Signal Loss PCB
SlimSAS port PCIe 4.0 Ready
(from WRX80 Chipset)
2 x M.2 PCIe 4.0 Connectors
(from CPU)
7x PCIe 4.0 Slot
(from CPU)
PCIe 4.0 Re-Driver (at the back)
Low Signal Loss PCB

1. SlimSAS port PCIe 4.0 Ready (from WRX80 Chipset)
2. 2 x M.2 PCIe 4.0 Connectors (from CPU)
3. 7x PCIe 4.0 Slot (from CPU)
4. PCIe 4.0 Re-Driver (at the back)
7 PCIe 4.0 Slots to enrich your various card configuration
With leadership architecture of AMD Ryzen™ Threadripper™ PRO, max out the 128 PCIe 4.0 lanes from 3000WX series with 6 PCIe 4.0 x16 and 1 PCIe 4.0 x8 slot that makes WRX80-SU8-IPMI the various card configuration and fulfill your content creation, deep learning and virtual machine application.
Multiple storage interface:
4 SATA3 Ports + 3 SlimSAS Ports
Plentiful NVMe and SATA interface can fulfill your hot and cold data processing requirement at once.
4 x SATA ports
for cold data from WRX80 chipset
3 x SlimSAS ports
(PCIe 4.0 x4 or SATA3x4 mode) from WRX80 chipset



Dual-Mode M.2 Slot Design (PCIe 4.0 x4 or SATA mode)
Support both PCIe NVMe + SATA SSDs
WRX80-SU8-IPMI are built with dual M.2 Slots with a PCIe NVMe + SATA dual-mode design. It can offer user flexible storage configuration and adaptation to fit most users’ requests.
Up to 64 Gb/s* (NVMe)
Up to 32 Gb/s* (NVMe)
* Theoretical Bandwidth
PCIe 4.0x4 M.2
PCIe 3.0x4 M.2
Carefully Selected Components
GIGABYTE’s passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years’ company-wide experience in motherboard design to attain the highest reliability levels.
CONNECTIVITY
Dual Intel® Server 10GbE and GbE LAN
The Intel® X550AT2 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T Ethernet Controller which is able to provide up to 10 GbE network connectivity as well as Intel SR-IOV feature. It is perfectly designed for media centers, workstations and virtual machine requirement.

The i210AT supports Windows server OS with fault tolerance, link aggregation, load balancing feature. The network interface is shared with IPMI management with NCSI. User can choose data transferring or remote management on GbE LAN by their requirement.
Native USB 3.2 Gen2
Connecting the Future - USB Type-C™
AMD's native USB 3.2 Gen2 provides USB 3.2 Gen2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
USB 3.2 Gen2 Type-C™ Front Panel Connector
The onboard USB Type-C™ header for USB 3.2 Gen2 makes access convenient when connecting a USB 3.2 Gen2 drive or charging your new mobile device.
GIGABYTE Remote Management
GIGABYTE Remote Management
With ASPEED AST 2500 BMC, Gigabyte server boards can provide an IPMI 2.0 compliant solution for IT managers to do remote management through the web interface.

Key Features include:
  1. Redfish enable
  2. IPMI 2.0 implementation
  3. Full configuration via web interface
  4. Hardware status monitor
  5. Remote power control
  6. Remote BIOS/firmware update
  7. Remote KVM with image redirection
  8. Event log and reporting
  9. Easy and convenient user management
GIGABYTE Control Center

GIGABYTE Control Center is a windows-based application that helps IT managers to fully control and monitor multiple servers without hassle.

Key Features include:

  1. Hardware status monitor
  2. BIOS update
  3. Security management
  4. Easy and convenient user management

AUDIO
ALC 1220 120dB SNR HD Audio with Smart Headphone Amp
ALC 1220 120dB SNR HD Audio
The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.
True High-Fidelity Music (Realtek ALC1220-VB)
Paired with Realtek's latest ALC1220 Codec, playback for surround sound audio and DSD enabled music are easier than ever.
Audiophile Grade Capacitors (Nichicon Fine Gold)
To ensure a studio-quality experience, Nichicon Fine Gold capacitors are used to provide power to the overall system.
ULTRA DURABLE
GIGABYTE Patented Double Locking Bracket
Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
