GB-SIOPS-4550ULegacy | Firmware updates supported
OPS Digital Signage
- Intel® Core™ i7-4550U processor
- Intel HD Graphics 5000
- 1 x GbE LAN port (Intel I218-LM)
- Realtek ALC887 controller
- 1 x 2.5" HDD/SDD bay
- 產品介紹
- 產品規格
- 支援與下載
產品規格
Operating Properties
Operating temperature: 0°C to 45°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
Processor Supported
Intel Core i7-4550U
1.5GHz - 3.0GHz
2 cores 4 threads
4MB L2 cache
15W TDP
1.5GHz - 3.0GHz
2 cores 4 threads
4MB L2 cache
15W TDP
Socket
1 x BGA 1168
Memory Type
2 x SO-DIMM DDR3L slots
Up to 16GB
1.35V 1600/1333MHz
Up to 16GB
1.35V 1600/1333MHz
Integrated Network
1 x GbE LAN port (Intel I218-LM)
Integrated Video Controller
Intel HD Graphics 5000
Max. resolution 3840 x 2160 @ 30Hz
Max. resolution 3840 x 2160 @ 30Hz
Integrated Audio Controller
Realtek ALC887 controller
Supports 2/4/5.1/7.1 channel configurations
Supports 2/4/5.1/7.1 channel configurations
Integrated SATA Controller
1 x SATA III 6Gb/s port
Expansion Slot
1 x mSATA slot
1 x Half-size Mini-PCIe slot
Pre-installed:
- 1 x WiFi + Bluetooth card
- Azurwave® AW-NB159H
1 x Half-size Mini-PCIe slot
Pre-installed:
- 1 x WiFi + Bluetooth card
- Azurwave® AW-NB159H
On Board Connectors
1 x SATA III 6Gb/s port
1 x LPC (80h) header
1 x USB 2.0 header
1 x SATA power connector
1 x Battery connector
1 x LPC (80h) header
1 x USB 2.0 header
1 x SATA power connector
1 x Battery connector

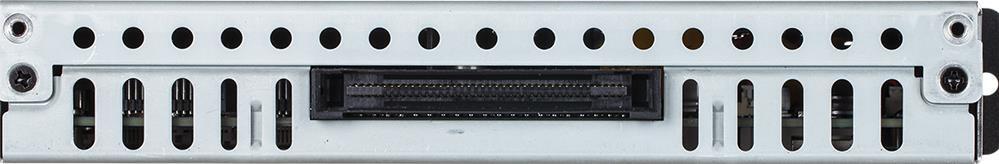

Rear I/O Connectors
1 x 80-pin JAE TX25 OPS connector
TPM
TPM module onboard
Infineon SLB9635TT1.2 controller
Infineon SLB9635TT1.2 controller
OS Driver Supported
Windows Embedded 7
Windows 7 64bit
Windows 8.1 64bit
Windows 7 64bit
Windows 8.1 64bit
Power
Power delivery through 80-pin JAE TX25 OPS connector
Packaging Bundle
1 x Mini-PCIe card bracket with 2 x screws
1 x Mini-PCIe screw
2 x HDD screws
1 x Mini-PCIe screw
2 x HDD screws
Ordering Information
5 pieces carton:
- Includes WiFi card - 362 x 333 x 242 mm
- 6BSIOPS3WMS-SI
- Includes WiFi card - 362 x 333 x 242 mm
- 6BSIOPS3WMS-SI
Storage
1 x 2.5" HDD/SSD bay, SATA III 6Gb/s

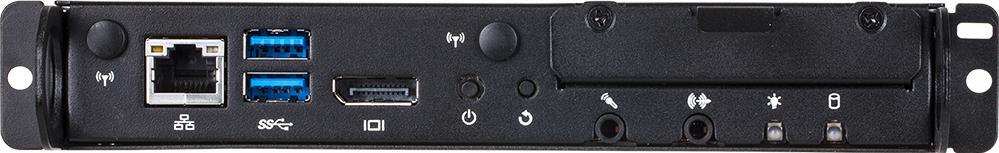

Front I/O
2 x WiFi antenna slots
1 x RJ45
2 x USB 3.0
1 x DisplayPort
1 x Power button
1 x Reset button
1 x Mic-In
1 x Line-Out
1 x RJ45
2 x USB 3.0
1 x DisplayPort
1 x Power button
1 x Reset button
1 x Mic-In
1 x Line-Out
System Fans
Active fan
Dimension
180 x 119 x 30 mm (WxDxH)
Motherboard
MIOPS3-SI
Weight
750g
