MZBAYAD

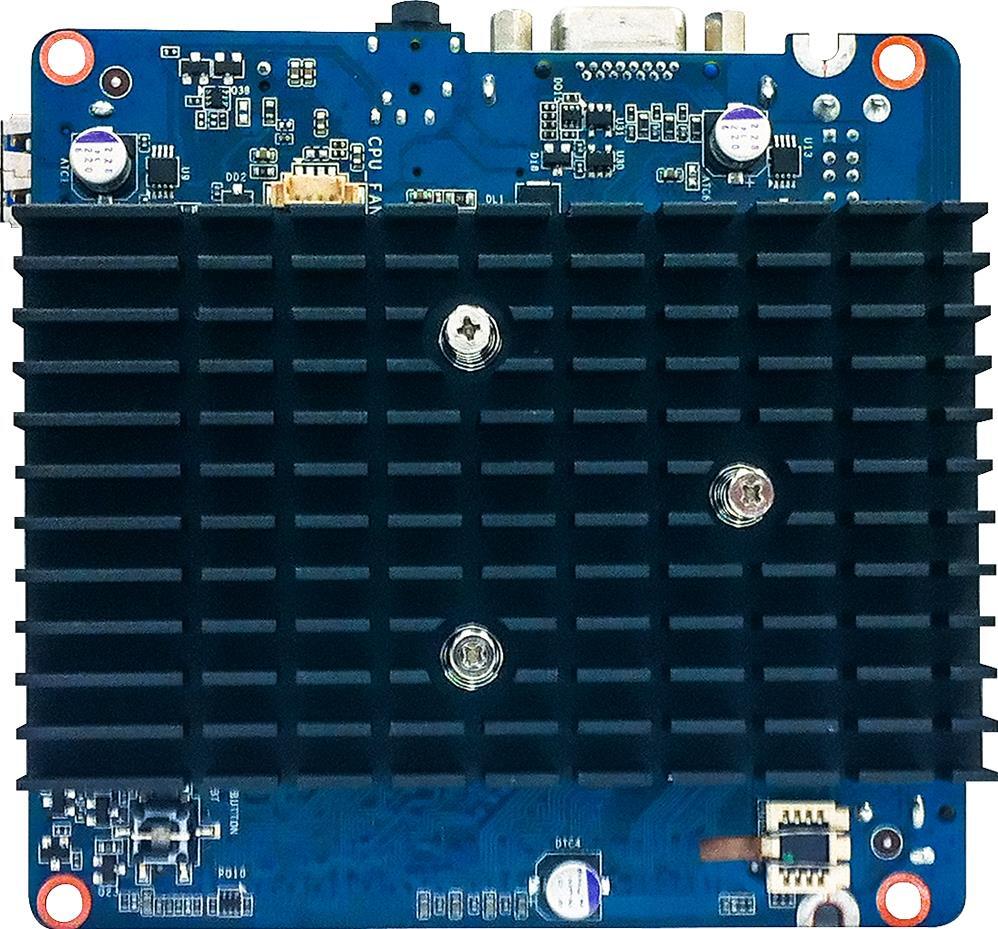

Legacy | Firmware updates supportedIntel Moon Island IoT Gateway Motherboard
Build to Order
- 100(W) x 108.5(D) mm small form factor
- Intel® Atom™ processor E3825
- 1 x SO-DIMM DDR3L slot
- 1 x GbE LAN (Realtek RTL8111G)
- 1 x SATA II 3Gb/s port
產品規格
Board Size
Proprietary
100(W) x 108.5(D) mm
100(W) x 108.5(D) mm
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Processor Supported
Intel Atom processor E3825
Dual core, 22nm
1.33GHz
1MB cache
6W TDP
Dual core, 22nm
1.33GHz
1MB cache
6W TDP
Socket
1 x BGA 1170
Memory Type
1 x SO-DIMM slot
DDR3L memory
Up to 8GB
1066Mhz
DDR3L memory
Up to 8GB
1066Mhz
Flash Memory
-
Integrated Network
1 x GbE LAN port (Realtek RTL8111G)
Integrated Video Controller
Intel HD Graphics
Integrated Audio Controller
Realtek ALC283 controller
Integrated SATA Controller
1 x SATA II 3Gb/s port
Expansion Slot
1 x Half-size Mini-PCIe slot
On Board Connectors
1 x Hard disk connector
1 x Battery connector
1 x GPIO connector
1 x Expansion card connectors
1 x Battery connector
1 x GPIO connector
1 x Expansion card connectors
Rear I/O Connectors
1 x RJ45
1 x HDMI v1.4
1 x USB 3.0
2 x USB 2.0
1 x DC-in
1 x VGA
1 x Line-out / MIC-in
1 x HDMI v1.4
1 x USB 3.0
2 x USB 2.0
1 x DC-in
1 x VGA
1 x Line-out / MIC-in
TPM
-
OS Driver Supported
Windows 7 (32bit / 64bit)
Windows 8.1 (32bit / 64bit)
Windows 8.1 (32bit / 64bit)
PSU Connectors
-
Power
AC 100~240V
12V DC-in
12V DC-in
Packaging Bundle
-
Ordering Information
Bilk: 9MZBAYADNR-00
Box size: 311x258x199mm
Optional 30W adapter: 25EP2-500303-A3S
Box size: 311x258x199mm
Optional 30W adapter: 25EP2-500303-A3S
