G221-Z30Legacy | Software updates supported

2U
430 x 87 x 710 mm

MZ31-AR0 Rev. 3.0

AMD EPYC™ 7003 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Conditional support 280W

Compatible with AMD EPYC™ 7002 series processor family

Socket SP3

System on Chip

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

2 x SFP+ 10Gb/s LAN ports (Broadcom^® BCM 57810S)
1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

N/A

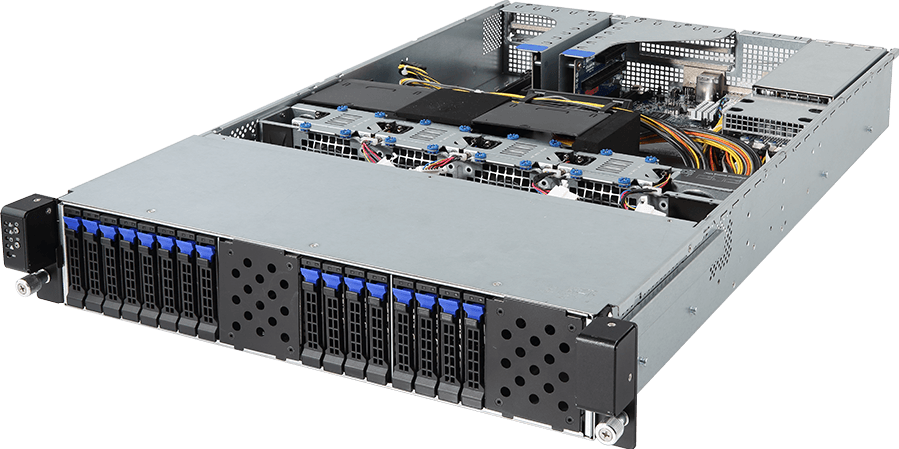

Total 16 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
- 8 x 2.5" SATA from onboard connectors
- 8 x 2.5" SATA/SAS via optional SAS RAID Card

Default configuration supports:
8 x SATA drives from onboard connectors

SAS card is required to enable the drive bays

N/A

N/A

N/A

Riser Card CRS2012: (Slot_6)
- 1 x PCIe x8 slot (Gen3 x8 or x0), Full height half-length
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height full-length

Slot_5: 1 x PCIe x16 (Gen3 x8 bus) slot
Supported for Low Profile RAID Card

Riser Card CRS2010: (Slot_4)
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height full-length
- 1 x PCIe x8 slot (Gen3 x8 or x0), Full height half-length

Riser Card CRSG018: (Slot_3)
- 1 x PCIe x16 slot (Gen3 x16), Low profile half-length

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer

1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

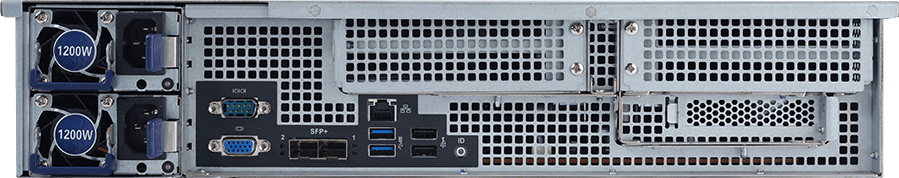

2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x COM_1
2 x SFP+
1 x MLAN
1 x ID button with LED

Backplane P/N: 9CBP20O1NR-00
Speed and bandwidth:
SAS 12Gb/s, SATA 6Gb/s

1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000

2 x 1200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input:
- 240Vdc/ 6A

DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc Input
+ 12V/ 97A
+ 12Vsb/ 3A

NOTE:
* Select 1600W power supply if using 280W CPU with full loading configuration

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• JAVA Based Serial Over LAN
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage/Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

4 x 80x80x38mm (16,300rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

NOTE: Ambient temperature limited to 30°C if using 280W CPU

982 x 588 x 268 (mm)

1 x G221-Z30 system
1 x CPU heatsink
1 x Rail kit

- Rackmount: 6NG221Z30MR-00 Rev. B00
- Motherboard: 9MZ31AR0MR-00 Rev. 3.0
- CPU heatsink: 25ST1-44320G-A0R
- Back plane board: 9CBP20O1NR-00
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-212002-F3S
- Rail Kit: 25HB2-3A6804-I0R
