G262-ZO0

2U
448 x 86.8 x 850

MZ62-HD5 Rev. 3.0

AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors

Dual processor, cTDP up to 280W

^[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

2 x LGA 4094
Socket SP3

System on Chip

16 x DIMM slots
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200/2933 MT/s

Front:
2 x 1Gb/s LAN (1 x Intel^® I350-AM2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in ASPEED^® AST2500
- 1 x Mini-DP

Front hot-swap:
4 x 2.5" Gen4 NVMe/SATA/SAS ^[1]
- (NVMe from PEX88096)

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0

Internal M.2 (CMTP072):
2 x M.2 (2242/2260/2280/22110), PCIe Gen4 x4, from CPU_1

^[1] SAS card is required to support SAS drives.

Require SAS add-in cards

Require RAID add-in cards

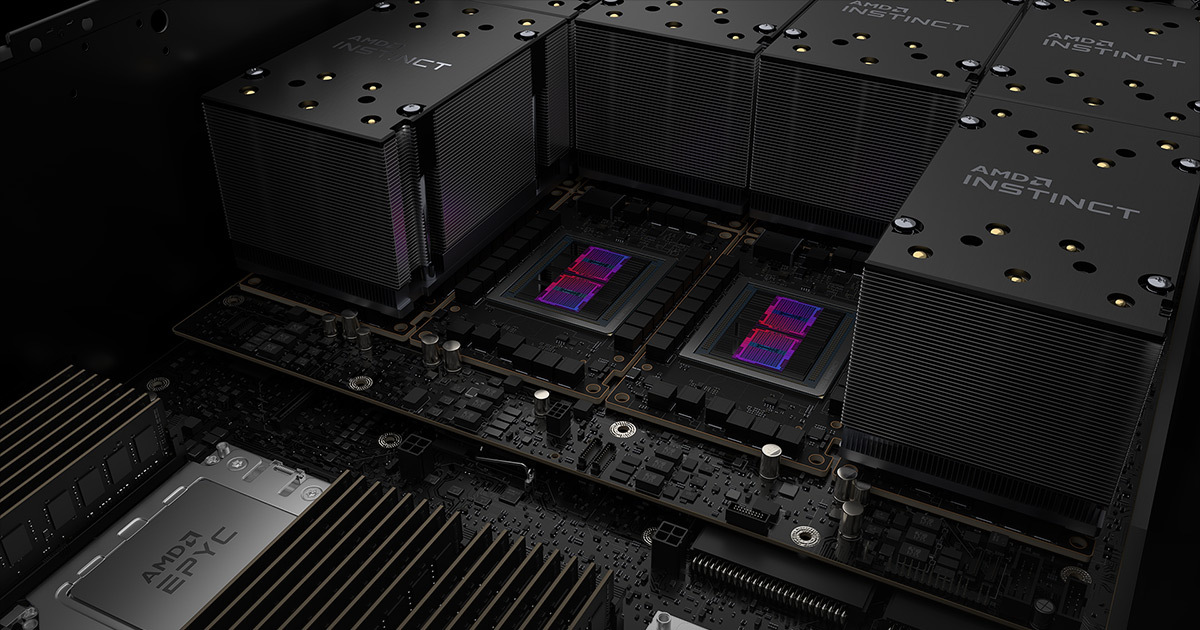

4 x AMD Instinct™ MI250 OAM GPUs

Front:
1 x LP x16 (Gen4 x16), from CPU_0
1 x LP x16 (Gen4 x16), from CPU_1

Rear:
4 x LP x16 (Gen4 x16), from PEX88096

1 x OCP NIC 3.0 (Gen4 x16), from CPU_0
- Supports NCSI function

2 x USB 3.0 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED

N/A

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Dual 3000W 80 PLUS Platinum redundant power supply ^[1]

AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-240V~/ 15.8A, 50-60Hz

DC Input:
- 240Vdc/ 14A

DC Output:
- Max 1200W/ 100-127V~
+54V/ 95.6A
+12Vsb/ 3.5A
- Max 3000W/ 200-240V~
+54V/ 178.1A
+12Vsb/ 3.5A

^[1] The system power supply requires C19 power cord.

ASPEED^® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage/Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Citrix Hypervisor 8.2.0 or later.

Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

2 x 60x60x76mm (21,700rpm)
5 x 80x80x80mm (17,000rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Net Weight: 25.2 kg

1135 x 685 x 304 mm

1 x G262-ZO0
2 x CPU fansinks
1 x L-shape Rail kit

- Barebone package: 6NG262ZO0MR-00-A*
- Motherboard: 9MZ62HD5NR-00*
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU fansink: 25ST1-3532G0-M1R/25ST1-3532G1-M1R
- Backplane board - COBP540: 9COBP540NR-00*
- Front panel board - CFP1000: 9CFP1000NR-00*
- Fan module: 25ST2-667630-S1R
- Fan module: 25ST2-808034-S1R
- Fan module: 25ST2-808035-S1R
- Power supply: 25EP0-230003-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- RMA packaging: 6NG262ZO0SR-RMA-A100
