1/6
G4L4-ZD3-LAX7

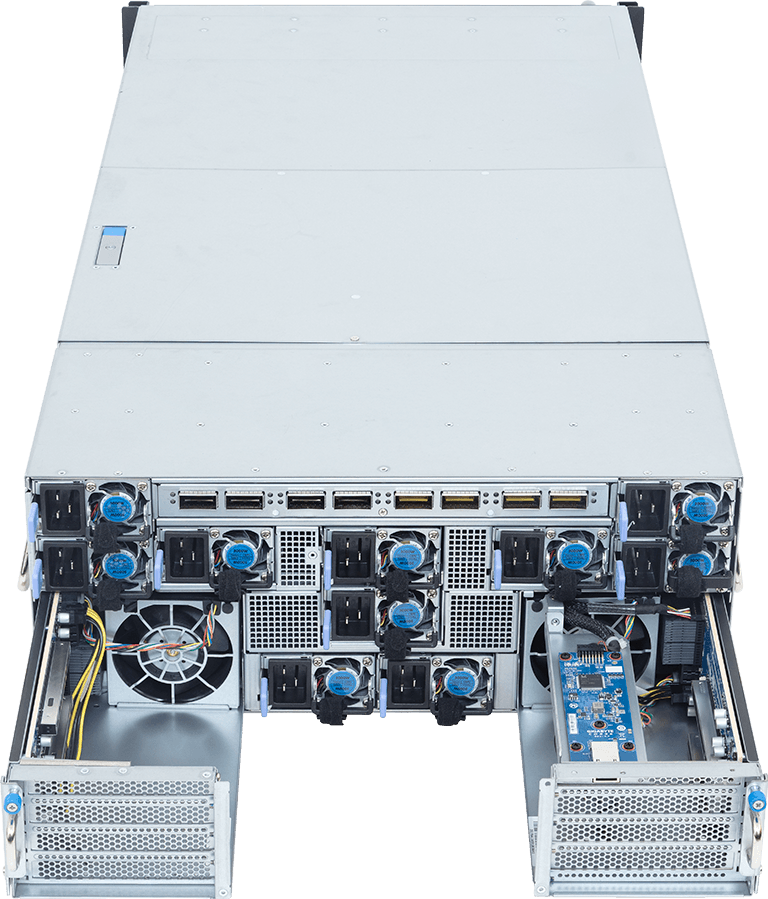

HPC/AI Server - AMD EPYC™ 9005/9004 Server Processors - 4U DP NVIDIA HGX™ B300 DLC

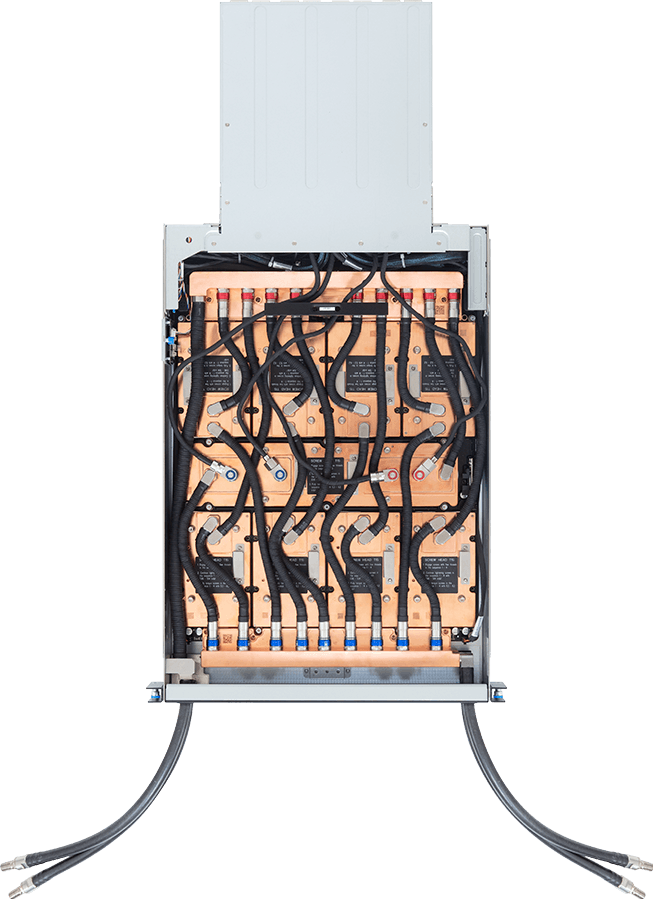

- Liquid-cooled NVIDIA HGX™ B300

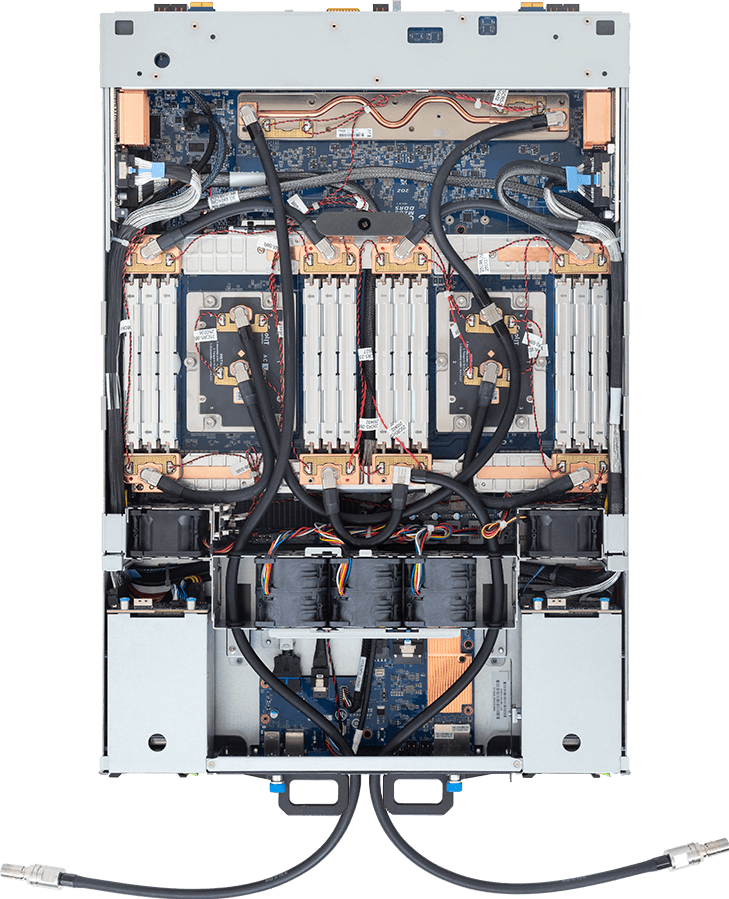

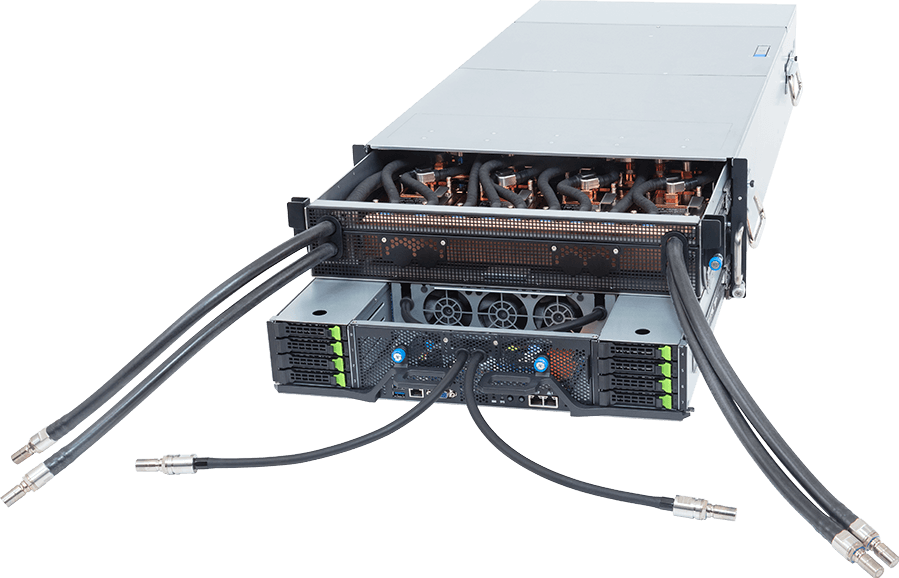

- Integrated-manifold DLC solution with leak detection
- 8 x 800 Gb/s OSFP XDR InfiniBand or dual 400 Gb/s Ethernet GPU networking ports via onboard NVIDIA ConnectX®-8 SuperNIC™
- 1.8 TB/s GPU-to-GPU bandwidth with NVIDIA NVLink™ and NVIDIA NVLink™ Switch
- Dual AMD EPYC™ 9005/9004 Server Processors
- 12-Channel DDR5 RDIMM per CPU with 24 x DIMMs
- Compatible with NVIDIA BlueField®-3 DPUs
- 2 x 10 Gb/s LAN ports via Intel® X710-AT2
- 2 x M.2 slots with PCIe Gen3 x4 and x1
- 8 x 2.5" Gen5 NVMe hot-swap bays
- 4 x FHHL PCIe x16 slots with Gen5 x16 lanes
- 5+5 3000 W 80 PLUS Titanium redundant power supplies
Ordering Numbers: 6NG4L4ZD3DR000LCX7*
產品規格
Dimensions (WxHxD, mm)
4U
447 x 175.5 x 901
447 x 175.5 x 901
Motherboard
MZB3-PE3
CPU
AMD EPYC™ 9005 Server Processors
AMD EPYC™ 9004 Server Processors
[DLC] Dual processors, cTDP up to 500 W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 9004 Server Processors
[DLC] Dual processors, cTDP up to 500 W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
[DLC] 24 x DIMM slots
Support DDR5 RDIMM
12-Channel memory per processor
AMD EPYC™ 9005:
Up to 6400 MT/s
AMD EPYC™ 9004:
Up to 4800 MT/s
Support DDR5 RDIMM
12-Channel memory per processor
AMD EPYC™ 9005:
Up to 6400 MT/s
AMD EPYC™ 9004:
Up to 4800 MT/s
LAN
Front (I/O board):
2 x 10 Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mb/s Management LAN
Rear:
[DLC] 8 x 800 Gb/s OSFP XDR InfiniBand or dual 400 Gb/s Ethernet, for GPU networking, via NVIDIA ConnectX®-8 SuperNIC™
Rear (MLAN board):
1 x 10/100/1000 Mb/s Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
2 x 10 Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mb/s Management LAN
Rear:
[DLC] 8 x 800 Gb/s OSFP XDR InfiniBand or dual 400 Gb/s Ethernet, for GPU networking, via NVIDIA ConnectX®-8 SuperNIC™
Rear (MLAN board):
1 x 10/100/1000 Mb/s Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video
Integrated in ASPEED® AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
8 x 2.5" Gen5 NVMe
- (NVMe from PEX89072)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
8 x 2.5" Gen5 NVMe
- (NVMe from PEX89072)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
Modular GPU
[DLC] NVIDIA HGX™ B300 with 8 x SXM GPUs
PCIe Expansion Slots
PCIe Bridge Board x 2:
- 4 x FHHL x16 (Gen5 x16), from PEX89072
- 4 x FHHL x16 (Gen5 x16), from PEX89072

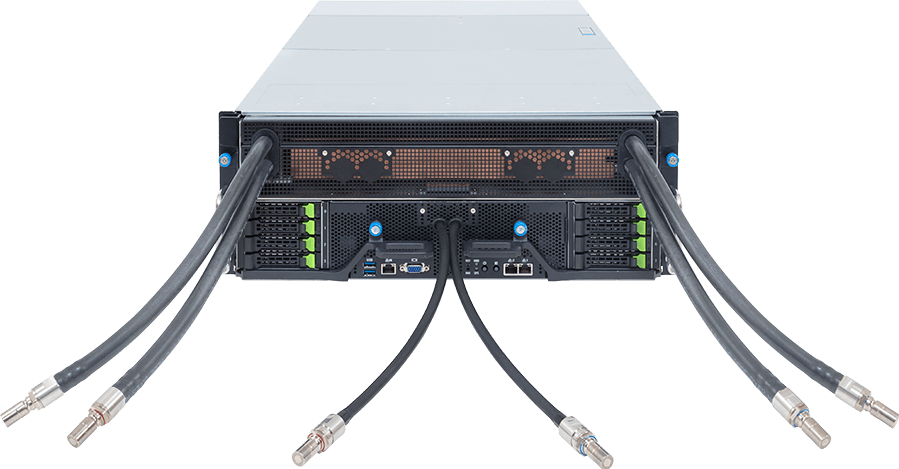

Front I/O
I/O board:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

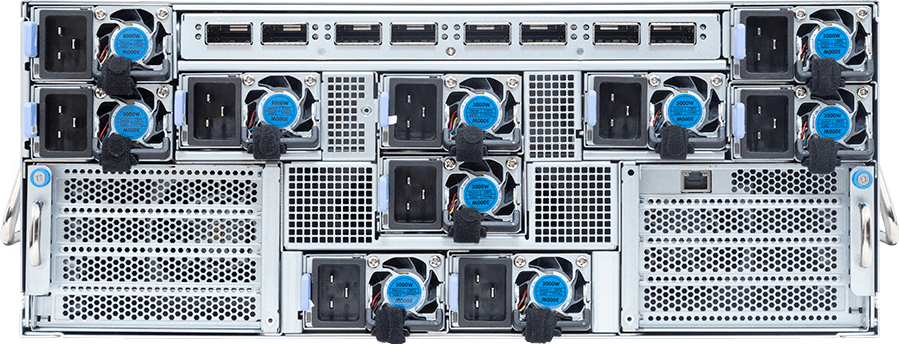

Rear I/O
8 x OSFP ports
MLAN board:
1 x MLAN port
MLAN board:
1 x MLAN port
Security Modules
1 x TPM header with SPI interface
- Optional TPM 2.0 kit: CTM012
- Optional TPM 2.0 kit: CTM012
Power Supply[#1]
5+5 3000 W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 115-127V~, 14.2A, 50-60Hz
- 200-220V~, 15.8A, 50-60Hz
- 220-240V~, 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc, 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
AC Input:
- 115-127V~, 14.2A, 50-60Hz
- 200-220V~, 15.8A, 50-60Hz
- 220-240V~, 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc, 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
System Fans
Motherboard:
2 x 60x60x38mm
3 x 60x60x56mm
PCIe slots:
2 x 80x80x56mm
2 x 60x60x38mm
3 x 60x60x56mm
PCIe slots:
2 x 80x80x56mm
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
[Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C.
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
[Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C.
Packaging Dimensions
1300 x 800 x 444 mm
Packaging Content
1 x G4L4-ZD3-LAX7
1 x L-shape Rail kit
1 x L-shape Rail kit
Part Numbers
- Barebone with NVIDIA module: 6NG4L4ZD3DR000LCX7*
- Motherboard: 9MZB3PE3UR-000*
- L-shape Rail kit: 25HB2-A96102-K0R
- Front panel board - CFPG440: 9CFPG440NR-00*
- Backplane board - CBPG641: 9CBPG641NR-00*
- Motherboard: 9MZB3PE3UR-000*
- L-shape Rail kit: 25HB2-A96102-K0R
- Front panel board - CFPG440: 9CFPG440NR-00*
- Backplane board - CBPG641: 9CBPG641NR-00*
[#1] 伺服器產品未附帶電源線。客戶需自行選擇適當的電源線 (可選配件)，或聯繫業務協助客製化。
