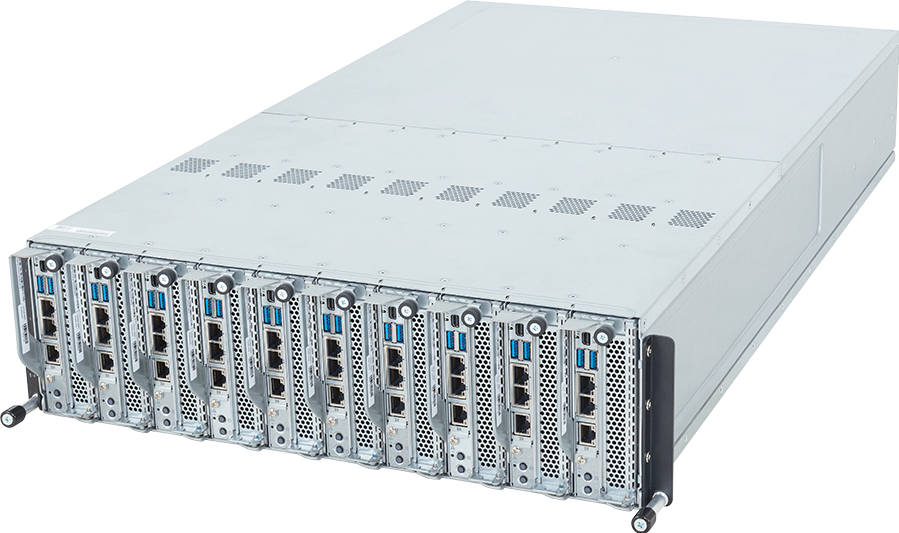

B343-C40-AAJ1

3U 10-Node - Front access
447 x 132 x 770

MC43-BL0

AMD EPYC^™ 4005 Series Processors
AMD Ryzen^™ 9000 Series Processors

Single processor per node, TDP up to 170W

^[Note] Overclocking is not supported due to thermal limitations.

10 x AM5

AMD B650E

4 x DIMM slots per node
Support DDR5 ECC/Non-ECC memory
Dual Channel memory per processor
UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)

Front (I/O board - CDCB010):
2 x 1Gb/s LAN (1 x Intel^® I350-AM2) per node
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN per node

Rear (LAN board - CLBH010 x 2):
2 x Chassis Management LAN

Integrated in ASPEED^® AST2600
- 1 x Mini-DP per node

Internal:
2 x 2.5" Gen5 NVMe/SATA per node

Internal M.2:
1 x M.2 (2280/22110) per node, PCIe Gen3 x1, from FCH

N/A

SATA RAID 0/1

Riser Card CRCB010:
- 1 x FHHL x16 (Gen5 x16) per node, from CPU

3 x OCP NIC 3.0 (Gen4 x4 per node), from FCH <sup>[1]

[1]</sup> Supports only validated multi-host add-in NIC cards.

Per node:
1 x Power button with LED
1 x ID button with LED
1 x System status LED
I/O board - CDCB010:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED

2 x CMC ports

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s

1 x TPM header with SPI interface per node
- Optional TPM2.0 kit: CTM010

4 x 2000W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A

ASPEED^® AST2600 Baseboard Management Controller
ASPEED^® AST2620 Chassis Management Controller
GIGABYTE Management Console web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced Power Capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

EPYC 4005 Series:
Ubuntu 22.04
Ubuntu 24.04
Windows Server 2022
Windows Server 2025

Ryzen 9000 Series:
Windows 10 21H2
Windows 11

5 x 80x80x80mm

Operating temperature: 10°C to 30°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)

1100 x 700 x 564 mm

1 x B343-C40-AAJ1
10 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x L-shape Rail kit

- Barebone package: 6NB343C40MR000AAJ1*
- Motherboard: 9MC43BL0NR-000*
- L-shape Rail kit: 25HB2-A86108-K0R
- CPU heatsink: 25ST1-15310D-A3R
- M.2 heatsink: 12SP2-11000E-00GR
- Backplane board - CBPB020: 9CBPB020NR-00*
- Fan module: 25ST2-88802J-A0R
- Riser card - CRCB010: 9CRCB010NR-00*
- OCP card - CPBBE50: 9CPBBE50NR-00*
- CMC card - CNBB90: 9CNBB90NR-00*
- I/O board - CDCB010: 9CDCB010NR-00*
- MLAN board - CLBH010: 9CLBH010NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-22000L-G1S
