B343-C40-AAJ2

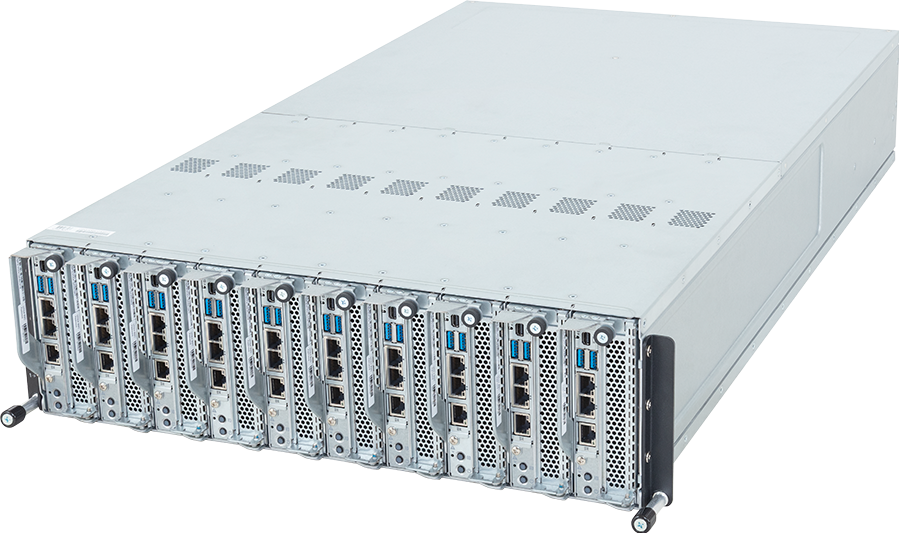

Blade Server - AMD EPYC™ 4005 & Ryzen™ 9000 - 3U 10-Node UP 20-Bay Gen5 NVMe/SATA
- 3U 10-node front access server system
- Single AMD EPYC™ 4005 & Ryzen™ 9000 Series Processors per node
- Dual Channel DDR5 ECC/Non-ECC UDIMM, 4 x DIMMs per node
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416 per node
- 2 x 2.5" Gen5 NVMe/SATA internal bays per node
- 1 x M.2 slot with PCIe Gen3 x1 interface per node
- 1 x FHHL PCIe Gen5 x16 slot per node
- 3 x OCP NIC 3.0 PCIe Gen4 slots for multi-host NICs
- 4 x 2000W 80 PLUS Titanium redundant power supplies
Ordering Numbers: 6NB343C40MR000AAJ2*
- 產品介紹
- 產品規格
- 支援與下載
- 相關資源
產品規格
Dimensions (WxHxD, mm)
3U 10-Node - Front access
447 x 132 x 770
447 x 132 x 770
Motherboard
MC43-BL0
CPU
AMD EPYC™ 4005 Series Processors
AMD Ryzen™ 9000 Series Processors
Single processor per node, TDP up to 170W
[Note] Overclocking is not supported due to thermal limitations.
AMD Ryzen™ 9000 Series Processors
Single processor per node, TDP up to 170W
[Note] Overclocking is not supported due to thermal limitations.
Socket
10 x AM5
Chipset
AMD B650E
Memory
4 x DIMM slots per node
Support DDR5 ECC/Non-ECC memory
Dual Channel memory per processor
UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)
Support DDR5 ECC/Non-ECC memory
Dual Channel memory per processor
UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)
LAN
Front (I/O board - CDCB020):
2 x 10Gb/s LAN (1 x Broadcom® BCM57416) per node
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN per node
Rear (LAN board - CLBH010 x 2):
2 x Chassis Management LAN
2 x 10Gb/s LAN (1 x Broadcom® BCM57416) per node
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN per node
Rear (LAN board - CLBH010 x 2):
2 x Chassis Management LAN
Video
Integrated in ASPEED® AST2600
- 1 x Mini-DP per node
- 1 x Mini-DP per node
Storage
Internal:
2 x 2.5" Gen5 NVMe/SATA per node
Internal M.2:
1 x M.2 (2280/22110) per node, PCIe Gen3 x1, from FCH
2 x 2.5" Gen5 NVMe/SATA per node
Internal M.2:
1 x M.2 (2280/22110) per node, PCIe Gen3 x1, from FCH
SAS
N/A
RAID
SATA RAID 0/1
PCIe Expansion Slots
Riser Card CRCB010:
- 1 x FHHL x16 (Gen5 x16) per node, from CPU
3 x OCP NIC 3.0 (Gen4 x4 per node), from FCH [1]
[1] Supports only validated multi-host add-in NIC cards.
- 1 x FHHL x16 (Gen5 x16) per node, from CPU
3 x OCP NIC 3.0 (Gen4 x4 per node), from FCH [1]
[1] Supports only validated multi-host add-in NIC cards.
Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x System status LED
I/O board - CDCB020:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
1 x Power button with LED
1 x ID button with LED
1 x System status LED
I/O board - CDCB020:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
Rear I/O
2 x CMC ports
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s
PCIe Gen5 x4 or SATA 6Gb/s
Security Modules
1 x TPM header with SPI interface per node
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply[#1]
4 x 2000W 80 PLUS Titanium redundant power supplies
AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A
AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A
System Management
ASPEED® AST2600 Baseboard Management Controller
ASPEED® AST2620 Chassis Management Controller
GIGABYTE Management Console web interface
ASPEED® AST2620 Chassis Management Controller
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced Power Capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
EPYC 4005 Series:
Ubuntu 22.04
Ubuntu 24.04
Windows Server 2022
Windows Server 2025
Ryzen 9000 Series:
Windows 10 21H2
Windows 11
Ubuntu 22.04
Ubuntu 24.04
Windows Server 2022
Windows Server 2025
Ryzen 9000 Series:
Windows 10 21H2
Windows 11
System Fans
5 x 80x80x80mm
Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Packaging Dimensions
1100 x 700 x 564 mm
Packaging Content
1 x B343-C40-AAJ2
10 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x L-shape Rail kit
10 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NB343C40MR000AAJ2*
- Motherboard: 9MC43BL0NR-000*
- L-shape Rail kit: 25HB2-A86108-K0R
- CPU heatsink: 25ST1-15310D-A3R
- M.2 heatsink: 12SP2-11000E-00GR
- Backplane board - CBPB020: 9CBPB020NR-00*
- Fan module: 25ST2-88802J-A0R
- Riser card - CRCB010: 9CRCB010NR-00*
- OCP card - CPBBE50: 9CPBBE50NR-00*
- CMC card - CNBB90: 9CNBB90NR-00*
- I/O board - CDCB020: 9CDCB020NR-00*
- MLAN board - CLBH010: 9CLBH010NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-22000L-G1S
- Motherboard: 9MC43BL0NR-000*
- L-shape Rail kit: 25HB2-A86108-K0R
- CPU heatsink: 25ST1-15310D-A3R
- M.2 heatsink: 12SP2-11000E-00GR
- Backplane board - CBPB020: 9CBPB020NR-00*
- Fan module: 25ST2-88802J-A0R
- Riser card - CRCB010: 9CRCB010NR-00*
- OCP card - CPBBE50: 9CPBBE50NR-00*
- CMC card - CNBB90: 9CNBB90NR-00*
- I/O board - CDCB020: 9CDCB020NR-00*
- MLAN board - CLBH010: 9CLBH010NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-22000L-G1S
