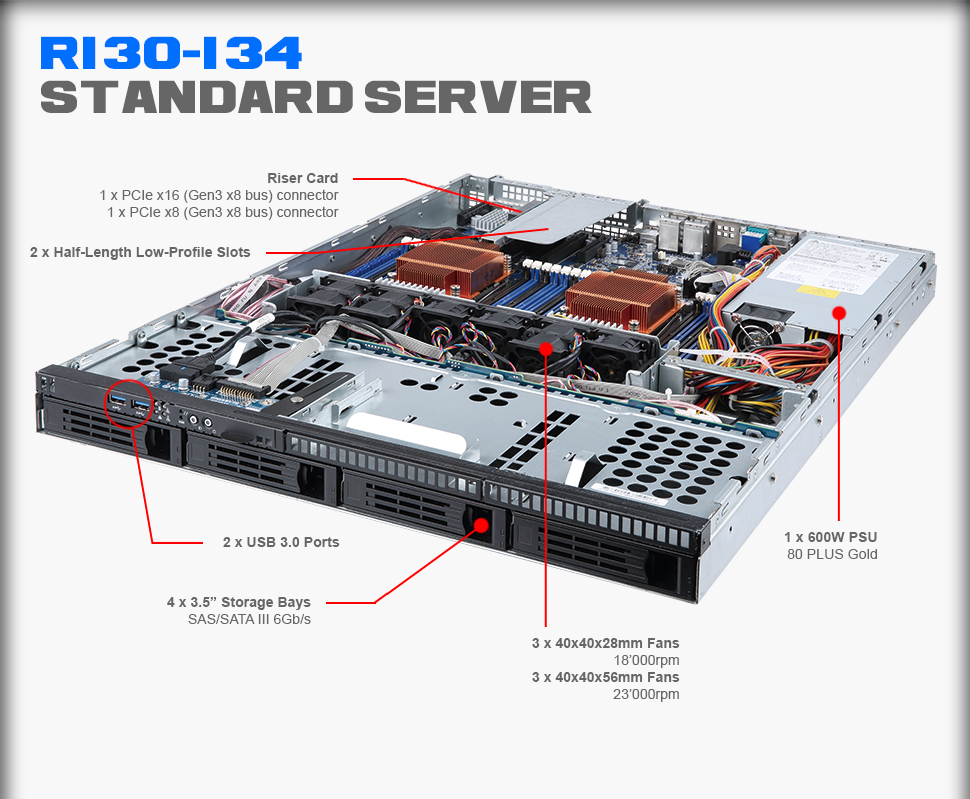

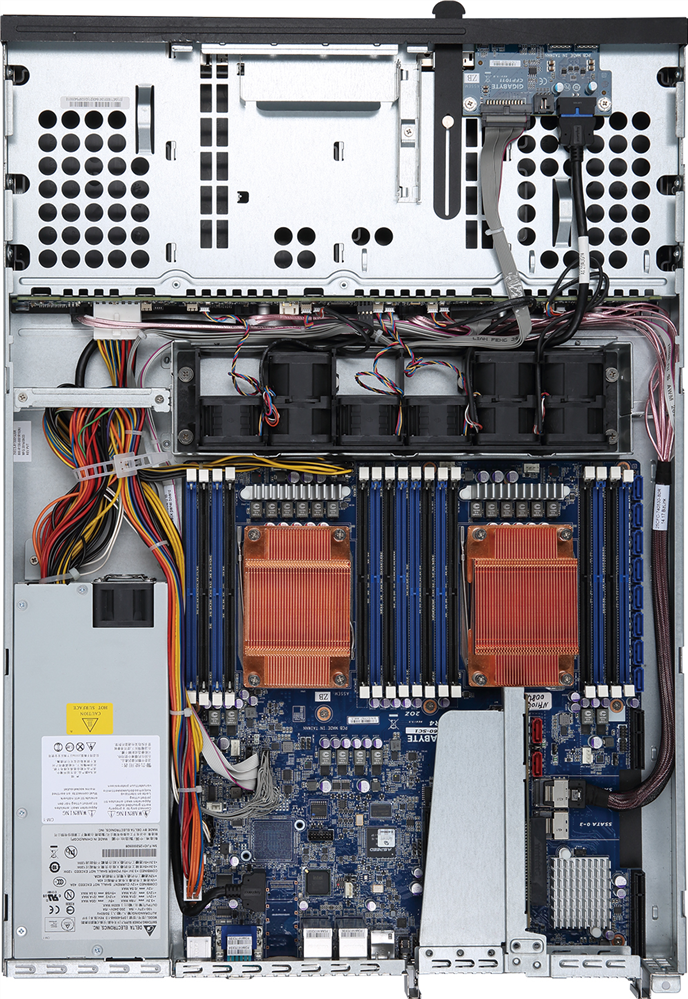

R130-134

1U
444 x 43 x 615

Intel^® Xeon^® E5-2600 V3 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.

2 x LGA 2011-3
Mounting pitch: narrow ILM (56x94mm)
Recommended cooling device dimension: 70x106mm
Compatible coolers (for reference only):

• Noctua NH-U9DX i4
• Noctua NH-U12DX i4
• Dynatron R27
• Dynatron R25
• Dynatron R24
• Dynatron T318A
• Dynatron R23
• Dynatron T318
• Dynatron R13
• Dynatron R19
• Dynatron R14
• Dynatron R12

Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Intel^® C612

16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz

2 x GbE LAN ports (Intel^® I350-AM2)
1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

-

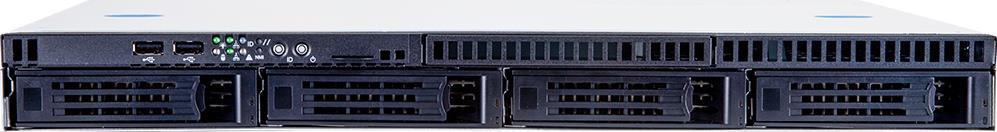

4 x 3.5" hot-swappable HDD/SSD bays

2 x Mini-SAS (for 8 x SATA III 6Gb/s ports)
2 x SATA III 6Gb/s ports supporting SATA DOM

8 x SAS 6Gb/s ports
(disabled, can be enabled with the CRA220-8 add-on card)

Intel^® SATA RAID 0/1/10/5

-

2 x Half-length low-profile slots
1 x PCIe x16 (Gen3 x8 bus) connector
1 x PCIe x8 (Gen3 x8 bus) connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
8 x SAS 6Gb/s ports
2 x SATA III 6Gb/s ports
2 x Mini-SAS cable connectors
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x Serial header
1 x TPM header
1 x Front panel header
2 x LAN activity LED headers
1 x HDD back plane board header
2 x SAS SGPIO headers
1 x Chassis intrusion header
1 x Management LAN port link LED header
1 x Management LAN port active LED header
1 x PMBus connector
1 x IPMB connector
2 x SATA DOM support jumpers
1 x Clear CMOS jumper
1 x ME update jumper
1 x Clearing supervisor password jumper
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x S3 power on select jumper
1 x Intel / LSI software RAID key jumper
1 x Force to stop FRB timer jumper

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x ID LED
1 x Alert LED

6 x USB 3.0
1 x PS/2
1 x VGA
1 x Serial
3 x RJ45
1 x ID button with LED

4 x SAS/SATA ports

1 x TPM header

1 x 600W PSU
80 PLUS Gold
100~220V AC

Aspeed^® AST2400 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (launch, configuration)

Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.5 (x64)
Red Hat Enterprise Linux 6.6 (x64)
Red Hat Enterprise Linux 7.0 (x64)

SUSE Linux Enterprise Server 11 SP3 (x64)
SUSE Linux Enterprise Server 12 (x64)

VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0

3 x 40x40x56mm (23'000rpm)
3 x 40x40x28mm (18'000rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

10 kg

800 x 570 x 220 mm

1 x R130-134
1 x Driver CD
2 x CPU heatsinks
1 x Rail kit

Barebone package: 6NR130134MR-00
Spare parts:
- Rail kit: 25HB2-3C6100-K0R
- CPU heatsink: 25ST1-443100-T4R
- Back plane board: 9CBS14U2NR-00
- Power supply: 25EP0-206001-D0S
- Riser card - CRE1U2A: 9CRE1U2ANS-00
