R272-Z32
(rev. 100)

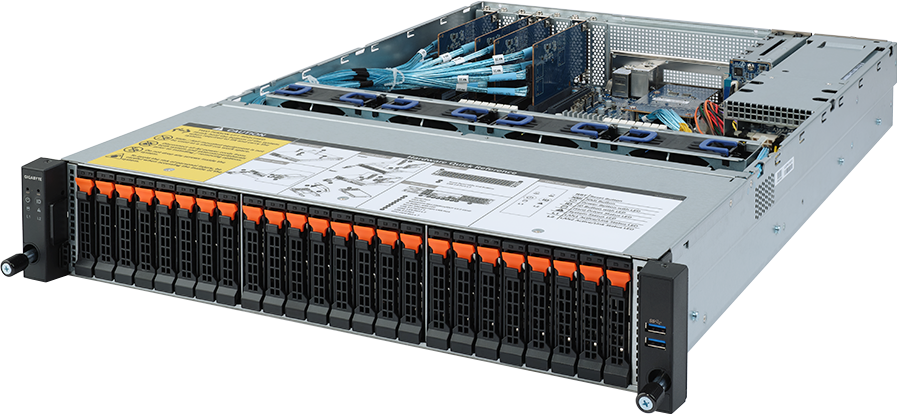

Rack Server - AMD EPYC™ 7002 - 2U UP 24+2-Bay Gen3 NVMe/SATA/SAS
- Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card
- AMD EPYC™ 7002 Series processors
- Single processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 24 x 2.5" Gen3 NVMe hot-swappable bays
- 2 x 2.5" SATA/SAS hot-swappable bays on rear side
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 1 x LP PCIe Gen4 x8 slot
- Aspeed® AST2500 remote management controller
- 1+1 1200W 80 PLUS Platinum redundant power supplies
Get a Quote
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 660
Motherboard
CPU
AMD EPYC™ 7002 Series processors
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Conditional supports 280W
Compatible with AMD EPYC™ 7001 Series processors
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Conditional supports 280W
Compatible with AMD EPYC™ 7001 Series processors
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MHz
*Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MHz
*Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
24 x 2.5" Gen3 NVMe hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
24 x 2.5" Gen3 NVMe hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
RAID
N/A
Expansion Slots
Total 1 x PCIe Gen4 low-profile slot
Slot_6: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4 x NVMe HBA
Slot_5: 1 x PCIe x16 (Gen4 x8) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4 x NVMe HBA
Slot_3: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4 x NVMe HBA
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8) slot, disabled
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8) slot, occupied by CNV3024, 4 x NVMe HBA
NOTE: Slot_7 is not available for this system model
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16, occupied by CNVO124, 4 x NVMe HBA
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
Slot_6: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4 x NVMe HBA
Slot_5: 1 x PCIe x16 (Gen4 x8) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4 x NVMe HBA
Slot_3: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4 x NVMe HBA
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8) slot, disabled
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8) slot, occupied by CNV3024, 4 x NVMe HBA
NOTE: Slot_7 is not available for this system model
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16, occupied by CNVO124, 4 x NVMe HBA
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
Internal I/O
2 x M.2 slots
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

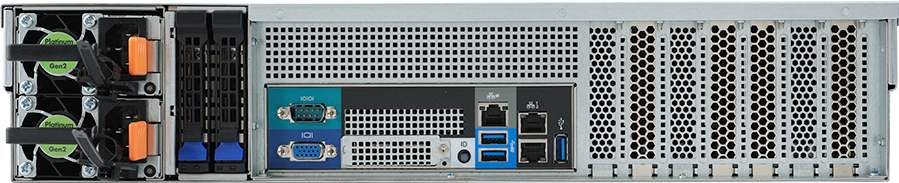

Rear I/O
3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBP20O5: PCIe Gen3 x4
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
Front side - CBP20O5: PCIe Gen3 x4
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
1+1 1200W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Output: - Max 1000W/ 100-127V~ + 12V/ 82A + 12Vsb/ 2A - Max 1200W/ 200-240V~ + 12V/ 98A + 12Vsb/ 2A
DC Output: - Max 1000W/ 100-127V~ + 12V/ 82A + 12Vsb/ 2A - Max 1200W/ 200-240V~ + 12V/ 98A + 12Vsb/ 2A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 Update3 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 7.0 U1
VMware ESXi 8.0 or later
Citrix Hypervisor 8.1.0 or later
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 Update3 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 7.0 U1
VMware ESXi 8.0 or later
Citrix Hypervisor 8.1.0 or later
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 17.78 kg
Gross Weight: 24.76 kg
Gross Weight: 24.76 kg
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R272-Z32
1 x CPU heatsink
1 x 2-Section Rail kit
1 x CPU heatsink
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR272Z32MR-00-1*
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O5: 9CBP20O5NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- PCIe pass through board: 9CEPM080NR-00
- PCIe NVMe Card: 9CNV3024NR-00
- OCP NVMe Card: 9CNVO124NR-00
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-212003-D0S
Optional parts:
- Fan duct for 280W CPU: 25HA8-R27231-S5R
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
b) SupremeRAID License: 25FC1-SRBUN0-AFS (32-native NVMe RAID)
- RMA packaging: 6NR272Z32SR-RMA-A100
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O5: 9CBP20O5NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- PCIe pass through board: 9CEPM080NR-00
- PCIe NVMe Card: 9CNV3024NR-00
- OCP NVMe Card: 9CNVO124NR-00
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-212003-D0S
Optional parts:
- Fan duct for 280W CPU: 25HA8-R27231-S5R
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
b) SupremeRAID License: 25FC1-SRBUN0-AFS (32-native NVMe RAID)
- RMA packaging: 6NR272Z32SR-RMA-A100
* 產品規格會依各國家地區出貨而有所變動，應以各地實際出貨狀況為準。誠摯建議與當地經銷商或零售商確認最新產品販售規格。
