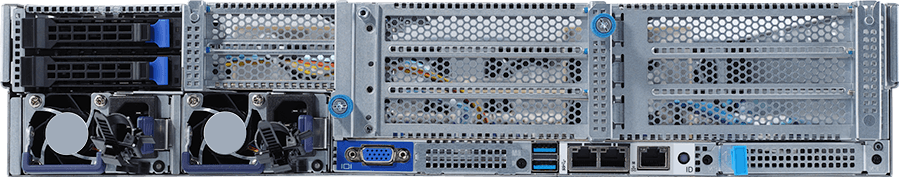

AMD EPYC™ 7002 DP Server System - 2U 24-Bay Gen4 NVMe
| Application:
網路伺服器
Application:
- Hardware-level root of trust support
- Dual AMD EPYC™ 7002 series processor family
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 24 x 2.5" Gen4 U.2 hot-swappable SSD bays in front side
- 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays in rear side
- Ultra-Fast M.2 with PCIe Gen4 x4 interface
- 1 x PCIe Gen4 expansion slots
- 1600W 80 PLUS Platinum redundant power supply
Request a Quote
1/4
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87 x 730
Motherboard
MZ92-FS1
CPU
AMD EPYC™ 7002 series processor family
Dual processors, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully support 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7001 series processor family
Dual processors, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully support 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7001 series processor family
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
Front side: 24 x 2.5" Gen4 U.2 hot-swappable HDD/SSD bays
Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays, from onboard SATA ports
1 x M.2 slot:
- M-key
- PCIe Gen4 x4
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays, from onboard SATA ports
1 x M.2 slot:
- M-key
- PCIe Gen4 x4
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
RAID
-
Peripheral Drives
-
Expansion Slots
Riser Card CRS2014:
- 1 x PCIe x16 slot (Gen4 x16), Occupied by CNV3134, 4 x NVMe HBA
Riser Card CRS2033:
- 1 x PCIe x16 slot (Gen4 x16), FHHL
- 1 x PCIe x8 slot (Gen4 x8), FHHL, Occupied by CNV3132, 2 x NVMe HBA
- 1 x PCIe x8 slot (Gen4 x8), FHHL, Occupied by CNV3132, 2 x NVMe HBA
Riser Card CRS2033:
- 1 x PCIe x16 slot (Gen4 x16), FHHL, Occupied by CNV3134, 4 x NVMe HBA
- 1 x PCIe x8 slot (Gen4 x8), FHHL, Occupied by CNV3132, 2 x NVMe HBA
- 1 x PCIe x8 slot (Gen4 x8), FHHL, Occupied by CNV3132, 2 x NVMe HBA
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function, Occupied by CNV9134, 4 x NVMe HBA
1 x OCP 2.0 mezzanine slot with PCIe Gen4 x8 bandwidth (Type1, P1, P2)
Supported NCSI function, Occupied by CNVO132, 2 x NVMe HBA
- 1 x PCIe x16 slot (Gen4 x16), Occupied by CNV3134, 4 x NVMe HBA
Riser Card CRS2033:
- 1 x PCIe x16 slot (Gen4 x16), FHHL
- 1 x PCIe x8 slot (Gen4 x8), FHHL, Occupied by CNV3132, 2 x NVMe HBA
- 1 x PCIe x8 slot (Gen4 x8), FHHL, Occupied by CNV3132, 2 x NVMe HBA
Riser Card CRS2033:
- 1 x PCIe x16 slot (Gen4 x16), FHHL, Occupied by CNV3134, 4 x NVMe HBA
- 1 x PCIe x8 slot (Gen4 x8), FHHL, Occupied by CNV3132, 2 x NVMe HBA
- 1 x PCIe x8 slot (Gen4 x8), FHHL, Occupied by CNV3132, 2 x NVMe HBA
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function, Occupied by CNV9134, 4 x NVMe HBA
1 x OCP 2.0 mezzanine slot with PCIe Gen4 x8 bandwidth (Type1, P1, P2)
Supported NCSI function, Occupied by CNVO132, 2 x NVMe HBA
Internal I/O
1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
Front side_CBP20O8: 24 x NVMe ports
Rear side_CBP2022: 2 x SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s, SAS 12Gb/s or PCIe Gen4 x4 per port
Rear side_CBP2022: 2 x SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s, SAS 12Gb/s or PCIe Gen4 x4 per port
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
2 x 1600W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10.0A, 50-60Hz
DC Input:
240Vdc, 10A
DC Output:
- Max 1000W/ 100-120V~ +12V/ 81.5A +12Vsb/ 2.5A - Max 1600W at 200-240V or 240Vdc Input +12V/ 133A +12Vsb/ 2.5A
80 PLUS Platinum
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10.0A, 50-60Hz
DC Input:
240Vdc, 10A
DC Output:
- Max 1000W/ 100-120V~ +12V/ 81.5A +12Vsb/ 2.5A - Max 1600W at 200-240V or 240Vdc Input +12V/ 133A +12Vsb/ 2.5A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
Weight
Net Weight: 18.5 kg
Gross Weight: 25.5 kg
Gross Weight: 25.5 kg
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
982 x 588 x 268 (mm)
Packaging Content
1 x R282-Z94 system
2 x CPU heatsinks
1 x Rail kit
2 x CPU heatsinks
1 x Rail kit
Part Numbers
Barebone package: 6NR282Z94MR-00
Spare parts:
- Motherboard: 9MZ92FS1NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_24-port: 9CBP20O8NR-00
- Back plane board_2-port: 9CBP2022NR-00
- PCIe pass through board: 9CEP2080NR-00
- Front panel board: 9CFP2001NR-00
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-216008-L0S
- Riser card - CRS2014: 9CRS2014NR-00 - Riser card - CRS2033: 9CRS2033NR-00 - OCP 3.0 4-port Gne4 NVMe HBA: 9CNV9134NR-00
- OCP 2.0 2-port Gen4 NVMe HBA: 9CNVO132NR-00
- PCIe 4-port Gen4 NVMe HBA: 9CNV3134NR-00
- PCIe 2-port Gen4 NVMe HBA: 9CNV3132NR-00
Spare parts:
- Motherboard: 9MZ92FS1NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_24-port: 9CBP20O8NR-00
- Back plane board_2-port: 9CBP2022NR-00
- PCIe pass through board: 9CEP2080NR-00
- Front panel board: 9CFP2001NR-00
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-216008-L0S
- Riser card - CRS2014: 9CRS2014NR-00 - Riser card - CRS2033: 9CRS2033NR-00 - OCP 3.0 4-port Gne4 NVMe HBA: 9CNV9134NR-00
- OCP 2.0 2-port Gen4 NVMe HBA: 9CNVO132NR-00
- PCIe 4-port Gen4 NVMe HBA: 9CNV3134NR-00
- PCIe 2-port Gen4 NVMe HBA: 9CNV3132NR-00
* 產品規格會依各國家地區出貨而有所變動，應以各地實際出貨狀況為準。誠摯建議與當地經銷商或零售商確認最新產品販售規格。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SUPPORT
- Choose your OS
- Choose your OS
- Windows Server 2019
- Windows Server 2016 64bit
晶片組
晶片組
版本
檔案大小
日期
AMD Chipset Driver
For AMD EPYC 7001/ 7002
For AMD EPYC 7001/ 7002
Version : 1.07.12.1102
17.05 MB
2019/08/06
作業系統: Windows Server 2016 64bit,Windows Server 2019
網路介面
網路介面
版本
檔案大小
日期
Intel® LAN Driver and Utility
Version : 24.0
542.58 MB
2019/08/06
作業系統: Windows Server 2016 64bit,Windows Server 2019
顯示介面
顯示介面
版本
檔案大小
日期
ASPEED Graphic Driver
Version : 1.06
1.78 MB
2019/08/06
作業系統: Windows Server 2016 64bit,Windows Server 2019
BIOS
說明
版本
檔案大小
日期
1. Fixed system wait long time randomly when boot in OS
2. Fixed redfish load boot order default fail
2. Fixed redfish load boot order default fail
Version : R16_F01
23.96 MB
2020/07/08
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.39 MB
2020/04/27
Warning:
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
- Choose your OS
- Choose your OS
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
工具程式
說明
版本
檔案大小
日期
GSM CLI
Version : 2.1.44
114.54 MB
2021/03/06
作業系統: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019
GSM Server
Version : 2.04
1147.65 MB
2020/12/04
作業系統: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 1.02
671.51 MB
2018/09/21
作業系統: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
說明
版本
檔案大小
日期
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
1. ErP Lot9 Supported
2. Guidelines to Preserve Configuration Settings (ErP Lot9 Update)
3. Vertiv BMC EOL & Update Procedure
(AST2500 AMI)
1. ErP Lot9 Supported
2. Guidelines to Preserve Configuration Settings (ErP Lot9 Update)
3. Vertiv BMC EOL & Update Procedure
Version : 12.49.06
94.56 MB
2020/11/29
英語
使用手冊
說明
版本
檔案大小
日期
Resources
Success Case
Articles
Video
News
Others
Back to R282-Z94
立即比較
全部清除
最多只能選取 5 個產品!
關閉視窗
Contact our sales team
Please contact us if you would like to know more about our products. For services and support, please visit eSupport.
* Inquiries:
* Are you a system integrator?
To ensure our emails be delivered to your inbox, please avoid using free-to-use email services such as Yahoo, Gmail, Hotmail etc.
0 / 1000
Submitted Successfully
