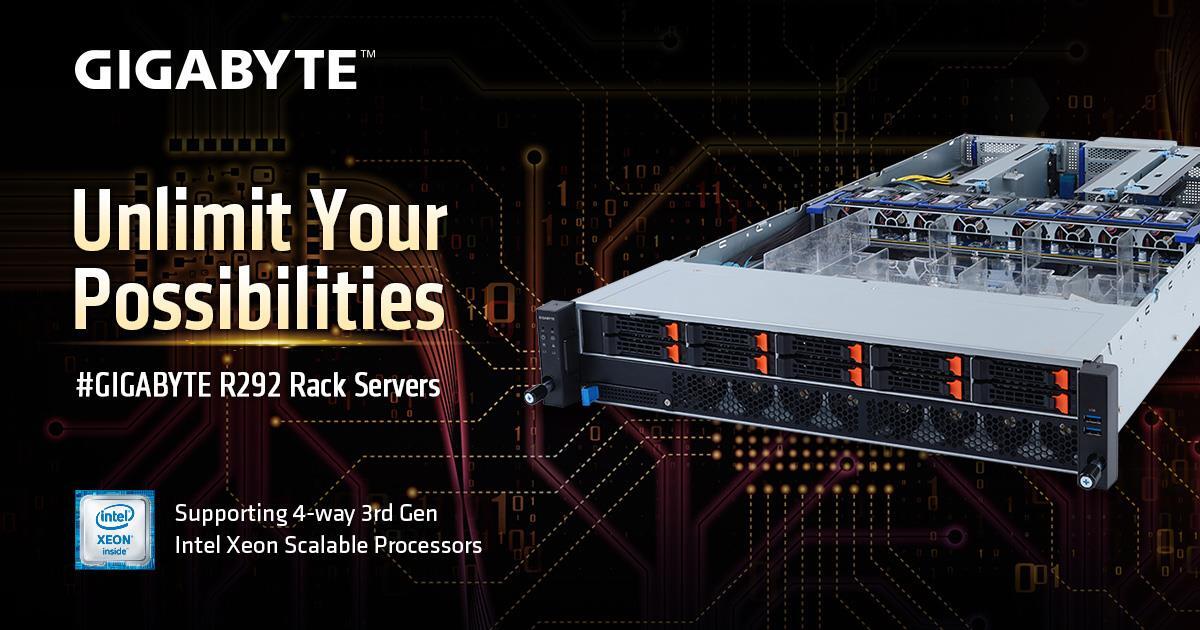

R292-4S0

2U
438 x 87.5 x 858

MRQ2-4S0

3rd Generation Intel^® Xeon^® Scalable Processors
Intel^® Xeon^® Platinum 8300 Processors
Intel^® Xeon^® Gold 6300 Processors
6 UPI Links per processor
Quad processor, TDP up to 165W

4 x LGA 4189
Socket P5

Intel^® C621A

Total 48 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
Supports Intel^® Optane™ Persistent Memory 200 series
1.2V modules: 3200 (1DPC)/2933 (2DPC) MT/s

Rear side:
2 x 10Gb/s LAN ports (1 x Intel^® X710-AT2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed^® AST2500
- 1 x VGA port

Front side:
10 x 2.5" Gen3 NVMe/SAS/SATA hot-swappable bays

SAS card is required for SAS devices support

Supported

Depends on SAS add-in cards

Intel^® SATA RAID 0/1/10/5

Supports 4 x FHFL Dual slot GPUs or 6 x FHFL PCIe HBAs

Riser Card CRS202A:
- 2 x PCIe x16 (Gen3 x16) FHFL slots, from CPU_0 and CPU_1

Riser Card CRS2040:
- 2 x PCIe x16 (Gen3 x16) FHFL slots, from CPU_0 and CPU_3

Riser Card CRS2029:
- 2 x PCIe x16 (Gen3 x16) FHFL slots, from CPU_2 and CPU_3

1 x OCP 3.0 slot with PCIe Gen3 x16 bandwidth (Supports OCP 3.0 SFF standard), from CPU_1

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from PCH
- Supports 2280 cards

1 x TPM header
1 x VROC connector

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

2 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Dual 3200W 80 PLUS Platinum redundant power supply

AC Input:
- 100-127V~/ 14A, 50/60Hz
- 200-208V~/ 16A, 50/60Hz
- 214-234V~/ 16A, 50/60Hz
- 240V~/ 16A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1106W/ 100-127V~
+12.3V/ 87A
+12Vsb/ 3A
- Max 2434W/ 200-208V~
+12.3V/ 195A
+12Vsb/ 3A
- Max 2828W/ 214-234V~
+12.3V/ 227A
+12Vsb/ 3A
- Max 3234W/ 240V~ or 240Vdc Input
+12.3V/ 260A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.
Note: 1+1 3000W redundant supported if without GPU card installed.

Aspeed^® AST2500 Baseboard Management Controller
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Hardware information
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Fan profiles
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (HTML5)

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 7.0 U1 or later
VMware ESXi 8.0 or later

Windows Server 2016
Windows Server 2019
Windows Server 2022

16 x 40x40x56mm (29,000rpm)
1 x 80x80x38mm (16,300rpm)

*Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

*Please contact GIGABYTE technical support for optimized temperature if installed with 4 x GPUs.

1177 x 670 x 291 mm

1 x R292-4S0
4 x CPU heatsinks
1 x 2-Section Rail kit

- Barebone package: 6NR2924S0MR-00-1*
- Motherboard: 9MRQ24S0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-243104-C1R
- M.2 heatsink: 12SP2-080027-00R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP10A5: 9CBP10A5NR-00
- Fan module: 25ST2-405624-A0R
- Fan module: 25ST2-405625-A0R
- Fan module: 25ST2-405626-A0R
- Fan module: 25ST2-405627-A0R
- Fan module: 25ST2-883827-D0R
- Riser card - CRS202A: 9CRS202ANR-00
- Riser card - CRS2040: 9CRS2040NR-00
- Riser card - CRS2029: 9CRS2029NR-00
- Power supply: 25EP0-232002-D0S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
