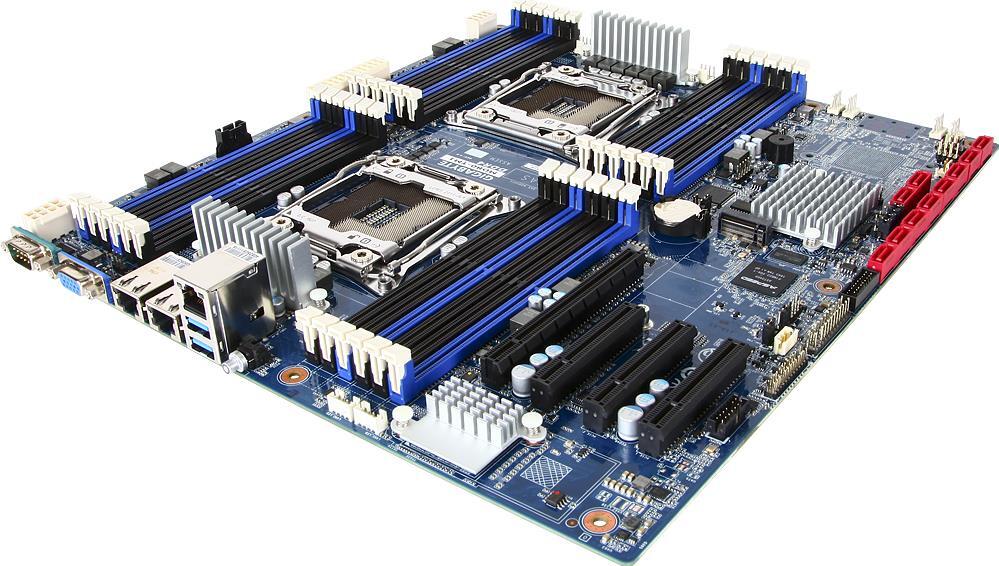

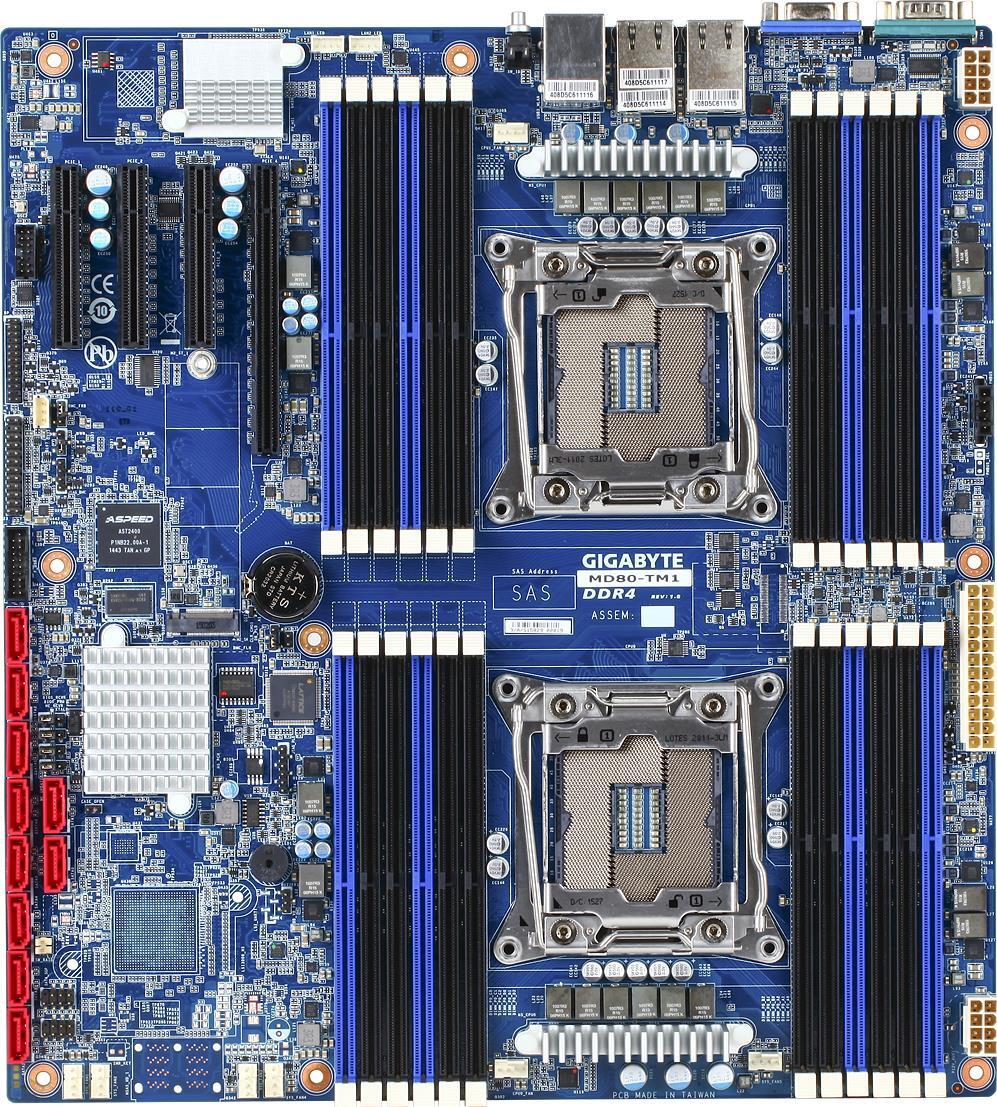

MD80-TM1
Legacy | Software updates supported
Intel® C612 chipset
- Intel® Xeon® processor E5-2600 V3 / V4 product families
- 24 x RDIMM/LRDIMM ECC DDR4 DIMM slots
- 2 x GbE LAN ports (Intel® I350-BT2)
- 10 x SATA III 6Gb/s
- 1 x M.2 slot
- 1 x USB 3.0 header
- Aspeed® AST2400 remote management controller
[#1] 本網站所提供之產品規格、圖片及其他資訊僅供參考，如有差異應以實際產品為準。技嘉科技保留隨時修改內容的權利，並不對因使用上述資料而導致的任何損失承擔責任。
[#2] 本產品所標示之效能數據為晶片廠商或相關介面標準制定組織所公佈的最大理論值，實際效能可能因系統配置及使用環境而有所不同。
[#3] 本文所使用的所有商標及企業識別標誌均為其合法所有者的財產。
[#2] 本產品所標示之效能數據為晶片廠商或相關介面標準制定組織所公佈的最大理論值，實際效能可能因系統配置及使用環境而有所不同。
[#3] 本文所使用的所有商標及企業識別標誌均為其合法所有者的財產。
SPECIFICATIONS
Board Size
E-ATX / SSI EEB
305W x 330D (mm)
305W x 330D (mm)
Processor Supported
Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Socket
2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset Description
Intel® C612
Memory Type
24 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
Integrated Network
2 x GbE LAN ports (Intel® I350-BT2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Integrated Video Controller
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Integrated Audio Controller
-
Integrated SAS Controller
-
Integrated SATA Controller
10 x SATA III 6Gb/s ports
Support RAID Function
Intel® SATA RAID 0/1/10/5
Expansion Slot
1 x PCIe x16 (Gen3 x16 bus) slot
3 x PCIe x8 (Gen3 x8 bus) slots
1 x M.2 (Gen2 x4 bus) slot:
- Socket 3
- M key
- Max. width: 22mm
- Max. length: 80mm
On-Board Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
5 x System fan headers
10 x SATA III 6Gb/s ports
1 x USB 3.0 header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x IMR key header
2 x SGPIO headers
1 x Software RAID header
1 x Chassis intrusion header
1 x LSI UART header
1 x JTAG PLD header
1 x BMC JTAG header
1 x Clear CMOS jumper
1 x ME update jumper
1 x ME recovery jumper
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x S3 mask jumper
1 x BMC FRB jumper
1 x PMBus connector
1 x IPMB connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
5 x System fan headers
10 x SATA III 6Gb/s ports
1 x USB 3.0 header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x IMR key header
2 x SGPIO headers
1 x Software RAID header
1 x Chassis intrusion header
1 x LSI UART header
1 x JTAG PLD header
1 x BMC JTAG header
1 x Clear CMOS jumper
1 x ME update jumper
1 x ME recovery jumper
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x S3 mask jumper
1 x BMC FRB jumper
1 x PMBus connector
1 x IPMB connector

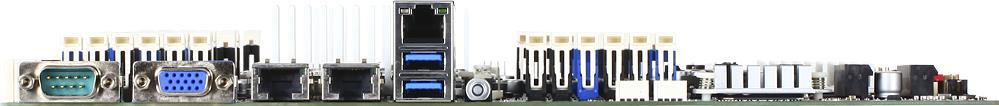

Rear I/O Connectors
2 x USB 3.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED
TPM
1 x TPM header
OS Driver Supported
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Server Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Bundle
1 x MD80-TM1
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA III 6Gb/s cables
Box dimensions: 409 x 355 x 78 mm
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA III 6Gb/s cables
Box dimensions: 409 x 355 x 78 mm
Bulk Packaging Content
10 x MD80-TM1
10 x I/O shields
Carton dimensions: 473 x 600 x 495 mm
10 x I/O shields
Carton dimensions: 473 x 600 x 495 mm
Ordering Information
Retail: 9MD80TM1MR-00
Bulk: 9MD80TM1NR-00
Bulk: 9MD80TM1NR-00
[#1] 本網站所提供之產品規格、圖片及其他資訊僅供參考，如有差異應以實際產品為準。技嘉科技保留隨時修改內容的權利，並不對因使用上述資料而導致的任何損失承擔責任。
[#2] 本產品所標示之效能數據為晶片廠商或相關介面標準制定組織所公佈的最大理論值，實際效能可能因系統配置及使用環境而有所不同。
[#3] 本文所使用的所有商標及企業識別標誌均為其合法所有者的財產。
[#2] 本產品所標示之效能數據為晶片廠商或相關介面標準制定組織所公佈的最大理論值，實際效能可能因系統配置及使用環境而有所不同。
[#3] 本文所使用的所有商標及企業識別標誌均為其合法所有者的財產。
SUPPORT
驅動程式
BIOS
工具程式
Firmware
QVL
- All
- All
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Ubuntu 14.04 LTS x86
- Ubuntu 14.04 LTS x64
- Ubuntu 12.04 LTS x86
- Ubuntu 12.04 LTS x64
- SLES 12 x64
- SLES 11.4 x86
- SLES 11.4 x64
- RHEL 7.2 x64
- RHEL 6.7 x86
- RHEL 6.7 x64
晶片組
晶片組
版本
檔案大小
日期
Intel® INF Driver
Version : 10.1.2.10
2.76 MB
Mar 28, 2016
作業系統: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Management Engine Driver
Version : 9.1.0.1120
102.8 MB
Sep 24, 2014
作業系統: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
網路介面
網路介面
版本
檔案大小
日期
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
Mar 28, 2016
作業系統: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
Mar 28, 2016
作業系統: Ubuntu 14.04 LTS x86,Ubuntu 14.04 LTS x64,RHEL 6.7 x86,RHEL 6.7 x64,RHEL 7.2 x64,Ubuntu 12.04 LTS x86,Ubuntu 12.04 LTS x64,SLES 11.4 x86,SLES 11.4 x64,SLES 12 x64
Intel® LAN Driver and Utility
Version : 21.1
303.94 MB
Mar 22, 2017
作業系統: Windows Server 2016 64bit
SATA RAID/AHCI
SATA RAID/AHCI
版本
檔案大小
日期
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.5.0.1333
18.62 MB
Mar 28, 2016
作業系統: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.5.0.1333
3.59 MB
Mar 28, 2016
作業系統: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.6.0.1085
19.4 MB
Mar 21, 2017
作業系統: Windows Server 2016 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.6.0.1085
7.41 MB
Mar 21, 2017
作業系統: Windows Server 2016 64bit
USB 3.0
USB 3.0
版本
檔案大小
日期
Etron USB 3.0 Driver
Version : 0.119
11.42 MB
Sep 09, 2014
作業系統: Windows Server 2012 64bit,Windows Server 2012 R2 64bit
Intel® USB 3.0 Driver
Version : 3.0.0.33
5.17 MB
Sep 16, 2014
作業系統: Windows Server 2008 R2 64bit
Etron USB 3.0 Driver
Version : 0.118
11.41 MB
Sep 17, 2014
作業系統: Windows Server 2008 R2 64bit
顯示介面
顯示介面
版本
檔案大小
日期
ASPEED Graphic Driver
Version : 0.99
35.32 MB
Sep 09, 2014
作業系統: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
ASPEED Graphic Driver
Version : 1.03
0.57 MB
Aug 28, 2017
作業系統: Windows Server 2012 R2 64bit,Windows Server 2016 64bit
BIOS
說明
版本
檔案大小
日期
Security update for 2019.2 Intel Platform Update (IPU)
[1] Update Microcode:Hasswell-EP M6F306F2_00000043,Broadwell-EP MEF406F1_0B000038
[2] Update ACM :SINIT 3.1.3
[3] Update Update SPS 03.01.03.72.0
[1] Update Microcode:Hasswell-EP M6F306F2_00000043,Broadwell-EP MEF406F1_0B000038
[2] Update ACM :SINIT 3.1.3
[3] Update Update SPS 03.01.03.72.0
Version : R10
13.19 MB
Dec 06, 2019
1. SPEED VBIOS update to 1.09.0 for CVE-2019-6260
2. Fixed INTEL-SA-00233
2. Fixed INTEL-SA-00233
Version : R09
13.11 MB
Jun 17, 2019
