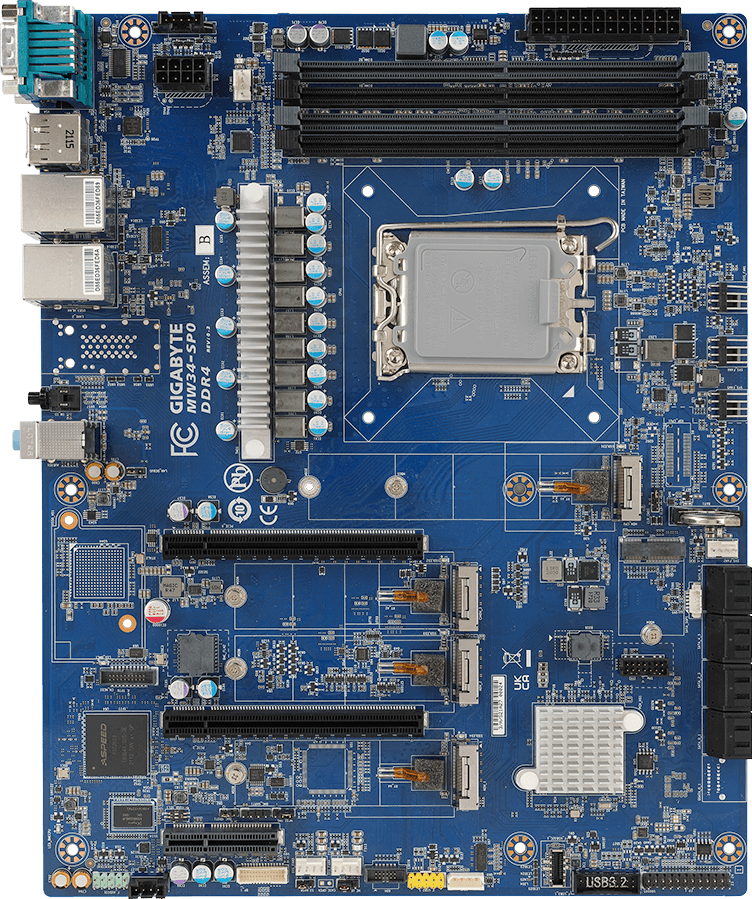

MW34-SP0
(rev. 1.1)
Motherboard - 14th/13th/12th Gen Intel® Core™ - ATX UP
- Single 14th/13th/12th Gen Intel® Core™ Desktop Processor
- Intel® W680 Chipset
- Dual Channel UDIMM DDR4, 4 x DIMMs
- 1 x 2.5G LAN port via Intel® I225
- 8 x SATA 6Gb/s ports
- 4 x M.2 slots with PCIe Gen4 x4 interface
- 1 x M.2 slot with PCIe Gen3 x1 interface for Wi-Fi add-in cards
- 2 x PCIe Gen5 x16 and x8 expansion slots
- 1 x PCIe Gen3 x4 expansion slot
Get a Quote
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SPECIFICATIONS
Board Size
ATX
305W x 244D mm
305W x 244D mm
Processor Supported
14th Gen Intel® Core™ Desktop Processor
13th Gen Intel® Core™ Desktop Processor
12th Gen Intel® Core™ Desktop Processor
Single processor
13th Gen Intel® Core™ Desktop Processor
12th Gen Intel® Core™ Desktop Processor
Single processor
Socket
1 x LGA 1700
Chipset Description
Intel® W680
Memory Type
4 x DIMM slots
DDR4 memory supported only
Dual channel memory architecture
ECC UDIMM supported
Total capacity up to 128GB
Memory speed: Up to 3200 MT/s
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
DDR4 memory supported only
Dual channel memory architecture
ECC UDIMM supported
Total capacity up to 128GB
Memory speed: Up to 3200 MT/s
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
Integrated Network
1 x 2.5Gb/s LAN port (Intel® I225)
1 x 10/100/1000 Mbps Management LAN
1 x 10/100/1000 Mbps Management LAN
Integrated Video Controller
Integrated in Intel® Processor:
- 1 x DisplayPort, supports DisplayPort 1.4a
- 1 x HDMI port, supports for HDMI 2.0b
Integrated in ASPEED® AST2600:
- 1 x VGA Port
- 1 x DisplayPort, supports DisplayPort 1.4a
- 1 x HDMI port, supports for HDMI 2.0b
Integrated in ASPEED® AST2600:
- 1 x VGA Port
Integrated Audio Controller
Realtek® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
3 x Audio Jacks (Audio in/Audio out/Mic)
Supports 2/4/5.1/7.1 channel configurations
3 x Audio Jacks (Audio in/Audio out/Mic)
Storage Interface
PCH:
- 8 x SATA 6Gb/s ports
- 8 x SATA 6Gb/s ports
Support RAID Function
Intel® RAID 0/1/10/5
Expansion Slot
Slot_6: PCIe x16 (Gen5 x16 or x8) slot, from CPU, shared with Slot_3
Slot_3: PCIe x16 (Gen5 x8) slot, from CPU
Slot_1: PCIe x4 (Gen3 x4) slot, from PCH
1 x M.2 slot for storage:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards
3 x M.2 slots for storage:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from PCH
- Supports 2230 cards
Slot_3: PCIe x16 (Gen5 x8) slot, from CPU
Slot_1: PCIe x4 (Gen3 x4) slot, from PCH
1 x M.2 slot for storage:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards
3 x M.2 slots for storage:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from PCH
- Supports 2230 cards
On-Board Connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
6 x System fan headers
1 x Front audio header
1 x USB3.2 Gen2x2 header
1 x USB3.2 Gen1 x2 header
1 x USB2.0 x2 header
4 x M.2 slots for storage
1 x M.2 slot for Wi-Fi
8 x SATA connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
1 x 8-pin ATX 12V power connector
1 x CPU fan header
6 x System fan headers
1 x Front audio header
1 x USB3.2 Gen2x2 header
1 x USB3.2 Gen1 x2 header
1 x USB2.0 x2 header
4 x M.2 slots for storage
1 x M.2 slot for Wi-Fi
8 x SATA connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header

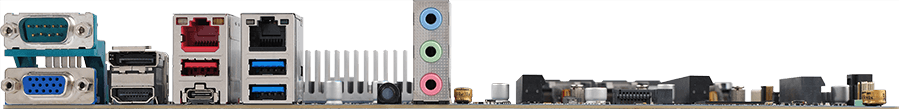

Rear I/O Connectors
1 x USB 3.2 Gen2x1 (Type-C)
3 x USB 3.2 Gen1 (Type-A)
1 x HDMI
1 x DP
1 x VGA
1 x COM
1 x RJ45
1 x MLAN
3 x Audio jacks
1 x ID button with LED
3 x USB 3.2 Gen1 (Type-A)
1 x HDMI
1 x DP
1 x VGA
1 x COM
1 x RJ45
1 x MLAN
3 x Audio jacks
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
OS Driver Supported
Windows 10 (x64)
Windows 11 (x64)
Windows 11 (x64)
Server Management
ASPEED® AST2600
PSU Connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

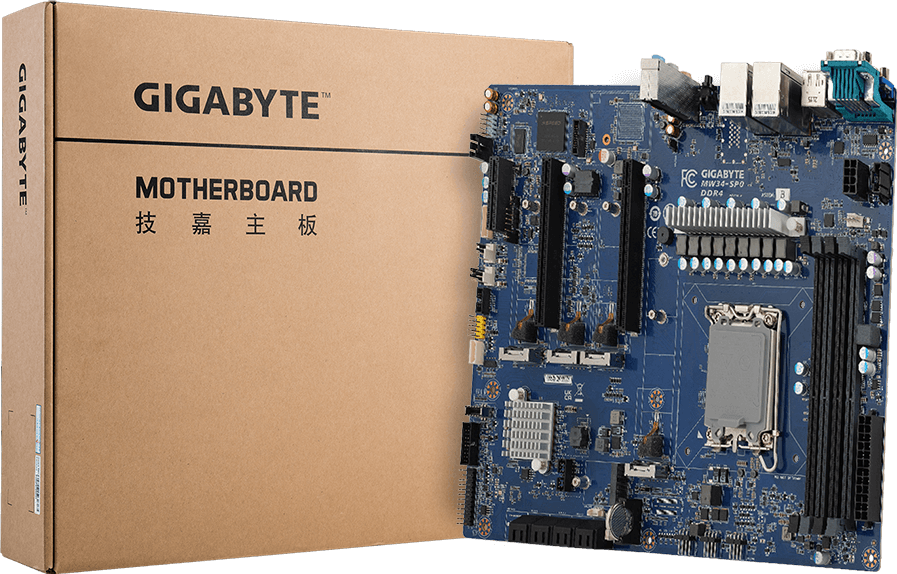

Packaging Bundle
1 x MW34-SP0
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables (500mm)
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables (500mm)
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MW34-SP0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Ordering Information
Retail: 9MW34SP0MR-00-11*
Bulk: 9MW34SP0NR-00-11*
Part Numbers:
- I/O shield: 12AIO-MW34S0-00R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT01-31R
Bulk: 9MW34SP0NR-00-11*
Part Numbers:
- I/O shield: 12AIO-MW34S0-00R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT01-31R
