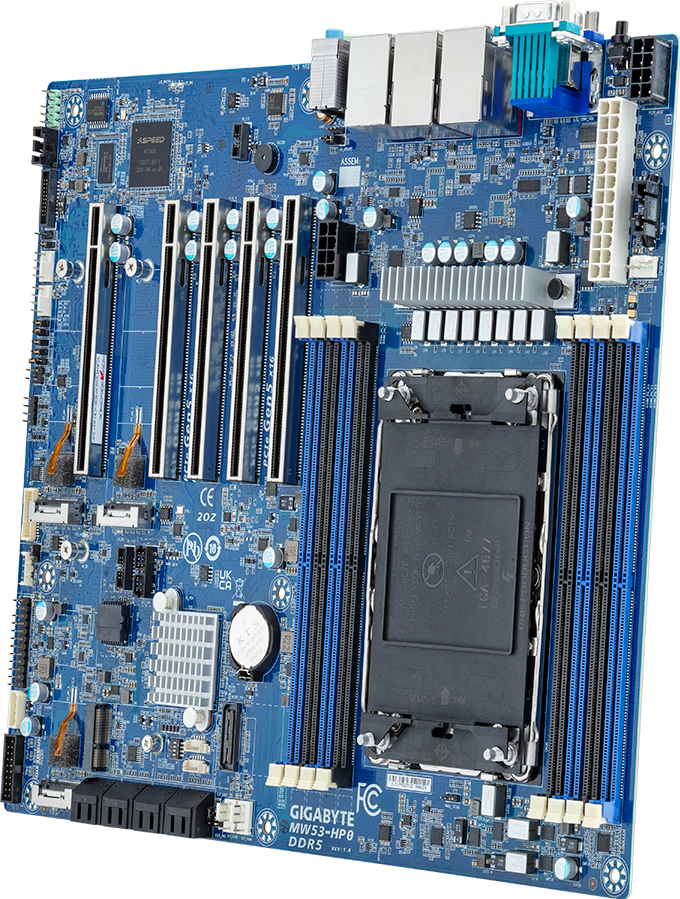

MW53-HP0

ATX
304.8 x 244 mm

Intel^® Xeon^® W-3500 Processors ^[1]
Intel^® Xeon^® W-2500 Processors
Intel^® Xeon^® W-3400 Processors ^[1]
Intel^® Xeon^® W-2400 Processors
Single processor, TDP up to 385W

^[1] Carriers for Intel^® Xeon^® W-3500/3400 Processors are not included. Please refer to the optional parts for proper support.

1 x LGA 4677

Intel^® W790

8 x DIMM slots
DDR5 memory supported
4-channel memory per processor
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

^[Note] When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.

2 x 2.5Gb/s LAN (2 x Intel^® I226-LM)
1 x 10/100/1000 Mbps Management LAN

Integrated in ASPEED^® AST2600
- 1 x VGA port

Realtek^® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
3 x Audio jacks (Audio in/Audio out/Mic)

SATA 7-pin:
8 x SATA, from PCH

M.2:
3 x M.2 (2280), PCIe Gen4 x4, from PCH

Intel^® SATA RAID 0/1/10/5

Slot_7: PCIe x16 (Gen5 x16), from CPU
Slot_6: PCIe x16 (Gen5 x16), from CPU
Slot_5: PCIe x16 (Gen5 x16), from CPU
Slot_4: PCIe x16 (Gen5 x16), from CPU
Slot_2: PCIe x16 (Gen3 x4), from PCH

1 x M.2 E-Key 2230 (PCIe Gen3 x1), from PCH, for Wi-Fi

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
4 x System fan headers
1 x Front audio header
2 x USB 3.2 Gen1 headers
3 x M.2 slots for storage
1 x M.2 slot for Wi-Fi
8 x SATA connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header

1 x USB 3.2 Gen2x2 port (Type-C)
5 x USB 3.2 Gen2x1 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
3 x Audio jacks
1 x ID button with LED

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

CentOS Stream 9
Debian 11.5.0
Red Hat Enterprise Linux 9.0
Ubuntu 22.04 LTS
Windows 11 Enterprise

ASPEED^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating temperature: 10°C to 40°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)

1 x MW53-HP0
1 x I/O shield
1 x Quick start guide
1 x W-2500/2400 (E1B) carrier ^[1]
3 x M.2 heatsinks
4 x SATA 6Gb/s cables (500mm)

Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton

^[1] Carriers for Intel^® Xeon^® W-3500/3400 Processors are not included. Please refer to the optional parts for proper support.

10 x MW53-HP0
10 x I/O shields
10 x W-2500/2400 (E1B) carriers ^[1]

Carton dimensions: 600 x 473 x 495 mm

^[1] Carriers for Intel^® Xeon^® W-3500/3400 Processors are not included. Please refer to the optional parts for proper support.

Retail (W-3500/2500): 9MW53HP0MR-000-3*
Bulk (W-3500/2500): 9MW53HP0NR-000-3*
Retail (W-3400/2400): 9MW53HP0MR-000-1*
Bulk (W-3400/2400): 9MW53HP0NR-000-1*

Part Numbers:

- I/O shield: 12AIO-MW53HP-10R
- W-2500/2400 (E1B) carrier: 12KRC-0I4677-12R
- M.2 heatsink: 12SP2-080027-00R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT01-31R

Optional parts:

- CPU fansink: 25ST0-0Z9221-A3R
- W-3500/3400 (E1A) carrier: 12KRC-0I4677-00R
