W793-ZU0-LA71
即將推出GPU Workstation - AMD EPYC™ 9005/9004 - UP 4 x PCIe Gen5 GPUs DLC
- CPU+GPU closed-loop liquid cooling solution with leak detection

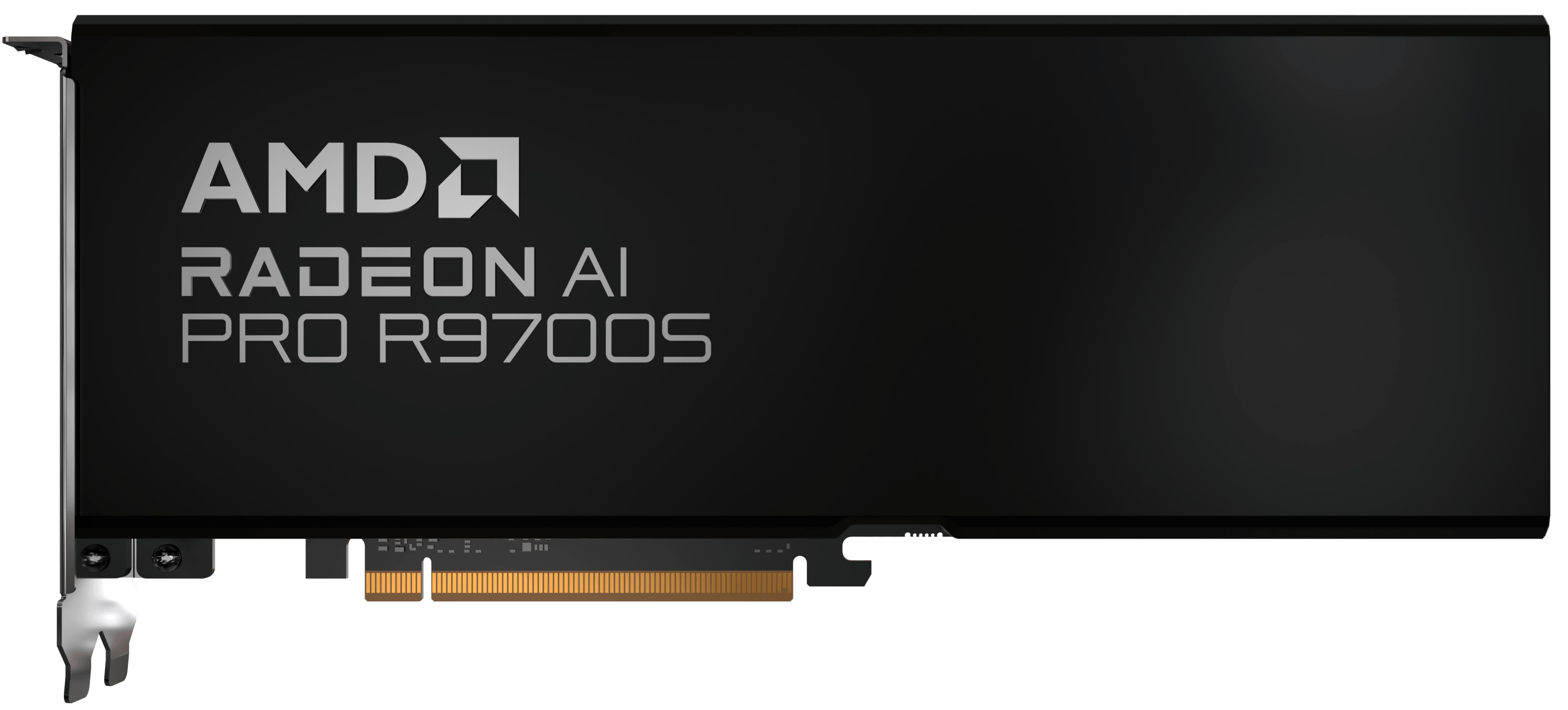

- Supports up to 4 x liquid-cooled AMD Radeon™ AI PRO R9700 GPUs
- Single AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 12 x DIMMs
- 2 x 10Gb/s LAN ports via Intel® X550-AT2
- 4 x 2.5" Gen5 NVMe hot-swap bays
- 4 x FHFL PCIe Gen5 x16 slots for GPUs
- 3 x FHHL PCIe Gen5 x16 slots for NICs
- 2+1 2400W liquid-cooled 80 PLUS Titanium redundant power supplies
產品規格
Dimensions (WxHxD, mm)
Pedestal
218 x 449 x 780
218 x 449 x 780
Motherboard
MZU3-MG0
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
[DLC] Single processor, cTDP up to 400W
- At 30°C ambient, cTDP up to 500W
AMD EPYC™ 9004 Series Processors
[DLC] Single processor, cTDP up to 400W
- At 30°C ambient, cTDP up to 500W
Socket
1 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
12 x DIMM slots
Support DDR5 RDIMM
12-Channel memory per processor
AMD EPYC™ 9005:
Up to 6400 MT/s
AMD EPYC™ 9004:
Up to 4800 MT/s
Support DDR5 RDIMM
12-Channel memory per processor
AMD EPYC™ 9005:
Up to 6400 MT/s
AMD EPYC™ 9004:
Up to 4800 MT/s
LAN
Front (I/O board - CFPX142):
2 x 10Gb/s LAN (1 x Intel® X550-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN (1 x Intel® X550-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Audio
N/A
Storage
Front hot-swap:
4 x 2.5" Gen5 NVMe
4 x 2.5" Gen5 NVMe
RAID
N/A
Peripheral Drives
N/A
PCIe Expansion Slots
PCIe Cable x 7:
- [DLC] 4 x FHFL x16 (Gen5 x16), for GPUs
- 3 x FHHL x16 (Gen5 x16), for NICs
[Note] The system is only validated with a uniform GPU model.
- [DLC] 4 x FHFL x16 (Gen5 x16), for GPUs
- 3 x FHHL x16 (Gen5 x16), for NICs
[Note] The system is only validated with a uniform GPU model.
Front I/O
I/O board - CFPX142:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
N/A
Security Modules

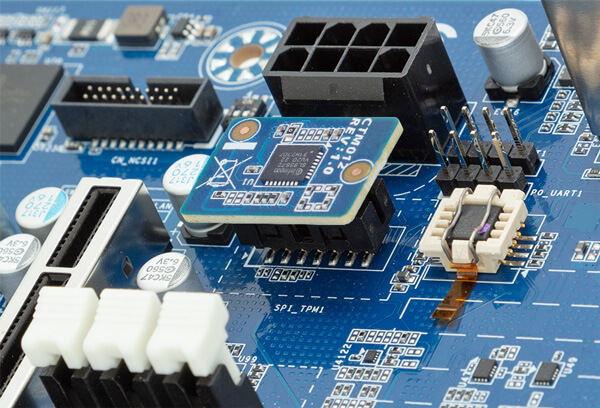

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
- Optional TPM2.0 kit: CTM012
Power Supply[#1]
2+1 2400W 80 PLUS Titanium redundant power supplies
System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
System Fans
N/A
[#1] 伺服器產品未附帶電源線。客戶需自行選擇適當的電源線 (可選配件)，或聯繫業務協助客製化。
[#2] 本網站所提供之產品規格、圖片及其他資訊僅供參考，如有差異應以實際產品為準。技嘉科技保留隨時修改內容的權利，並不對因使用上述資料而導致的任何損失承擔責任。
[#3] 本產品所標示之效能數據為晶片廠商或相關介面標準制定組織所公佈的最大理論值，實際效能可能因系統配置及使用環境而有所不同。
[#4] 本文所使用的所有商標及企業識別標誌均為其合法所有者的財產。
