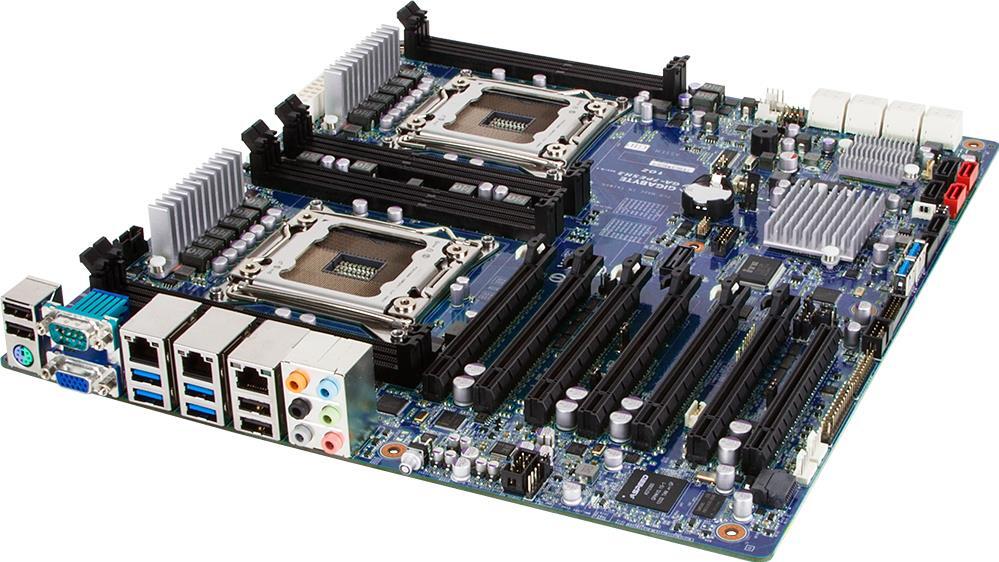

GA-7PESH3Legacy | Software updates supported

E-ATX / SSI EEB
305W x 330D (mm)

Supports:

• Intel^® Xeon^® E5-2600 V2 processors
• Intel^® Xeon^® E5-1600 V2 processors (single CPU configuration only)
• Intel^® Xeon^® E5-2600 processors
• Intel^® Xeon^® E5-1600 processors (single CPU configuration only)

2 x LGA 2011
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Intel^® C602

8 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz

*Supported by Intel^® Xeon^® E5-2600 V2 processors only

Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors

2 x GbE LAN ports (Intel^® 82574L)
1 x 10/100 management LAN

Integrated in Aspeed^® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Realtek^® ALC892 controller

• Supports 2/4/5.1/7.1 channel configurations
• Support for Dolby Home Theater
• Support for S/PDIF In/Out
• Support for CD-In

8 x SAS 6Gb/s ports

2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports

Intel^® SATA RAID 0/1/10/5
LSI^® SAS2008 RAID 0/1/1E/10

1 x PCIe x16 (Gen3 x16 bus) slot
6 x PCIe x16 (Gen3 x8 bus) slots

or (via PCIe switch):

4 x PCIe x16 (Gen3 x16 bus) slots
Support NVIDIA^® SLI™ and AMD^® CrossFireX™ technologies (4-way)

2 x CPU fan headers
4 x System fan headers
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x PMBus connector
2 x SAS SGPIO headers
4 x SAS 6Gb/s ports
1 x SATA SGPIO header
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x LSI RAID key header
2 x SATA port DOM support jumpers
2 x USB 3.0 vertical Type A
1 x TPM header
1 x CMOS battery
1 x BIOS write protect jumper
1 x Clear CMOS jumper
1 x USB 3.0 header
1 x USB 2.0 header
1 x HDD back plane board header
1 x Front panel header
1 x Skip supervisor password jumper
1 x S3 Power On Select jumper
1 x ME recovery jumper
1 x Chassis intrusion header
1 x BIOS recovery jumper
1 x IPMB connector
1 x BMC firmware readiness LED
1 x Force to Stop FRB1 Timer jumper
1 x Front audio header
1 x S/PDIF-Out header
1 x PMBus Power Select jumper

4 x USB 3.0
4 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
3 x RJ45
6 x Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
1 x ID button with LED

1 x TPM header

Windows Server 2008 SP2 (x86) & R2 (x64)
Windows Vista SP2 (x86/x64)

Red Hat Enterprise Linux 5.6 (x86/x64)
Red Hat Enterprise Linux 6.11 (x86/x64)

SUSE Linux Enterprise Server 11.1 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2

Aspeed^® AST2300 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (launch, configuration)

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

1 x Driver CD
1 x Quick reference guide chassis sticker
1 x I/O shield
1 x Quad SLI™ bridge
1 x Tri SLI™ bridge
1 x SLI™ bridge
3 x CrossFireX™ bridges
2 x SATA III 6Gb/s cables (600mm)
4 x SATA II 3Gb/s cables (500mm)

Retail: 9A7PESH3MS-00
Bulk: 9M7PESH3NS-00
