SPECIFICATIONS

Form Factor
Mini-ITX
170W x 170D (mm)
CPU
Supports Intel® Xeon® processor E3-1200 V6/V5 product family
Supports 7th/ 6th Gen Intel® Core™ i3 processors, Intel® Celeron® processors, Intel® Pentium® processors
Socket
1 x LGA 1151
Chipset
Intel® C232
Memory
2 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 32GB
Supported speeds: 2400/2133 MHz
LAN
2 x GbE LAN ports (Intel® I210)
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
NVMe
1 x Mini-SAS HD connector (for 1 x NVMe device)
PCIe Gen3 x4 bus
SAS
-
SATA
4 x SATA III 6Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) connector
1 x Mini-SAS HD connector
Internal I/O
1 x 24-pin ATX main power connector
1 x 4-pin power connector
4 x SATA III 6Gb/s ports
1 x Mini-SAS HD port
1 x CPU fan header
3 x System fan headers
1 x USB 3.0 header
1 x Front VGA header
1 x TPM header
1 x Front panel header
1 x JTAG PLD header
1 x Chassis intrusion header
1 x Power DET header
1 x IPMB connector

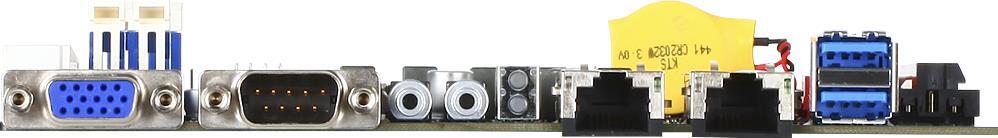

Rear I/O
1 x Serial
1 x VGA
1 x ID button with LED
1 x Power button with LED
1 x Reset button
1 x NMI button
2 x RJ45
2 x USB 3.0
TPM
1 x TPM header
OS Supported
Windows Server 2012 R2
Windows Server 2016
RHEL 7.2 (x64)
Ubuntu 12.04 LTS x64
Ubuntu 14.04 LTS x64
SUSE Linux Enterprise Server 11.4 x64
SUSE Linux Enterprise Server 12 x64
VMware 5.5 U3 (x64)
VMware 6.0 U1 (x64)
Board Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
1 x 4-pin power connector
Operating Properties
Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MX11-PC0
1 x I/O shield
1 x Quick start guide
2 x SATA III 6Gb/s cables
Box dimensions: 233 x 214 x 62 mm
Bulk Packaging Content
10 x MX11-PC0
10 x I/O shields
Reference Numbers
Retail: 9MX11PC0MR-00
Bulk: 9MX11PC0NR-00
