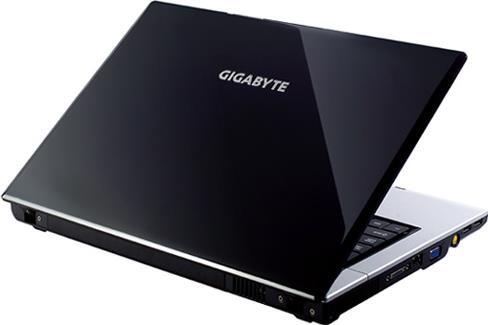

W566U
Specifications
- OS
- Genuine Windows® Vista Home Premium
- CPU
- Intel® Centrino® processor technology
Intel® Core™ 2 Duo T7100~T9500
( 65nm, FSB 800MHz, L2 cache 2MB or 4MB)
- Video Graphics
- Intel ® Crestline GM 965 / GMA X3100
- Display
- 15.4" TFT-LCD WXGA, 1280x800, Glare type
- System Memory
- 0 on board and 2 SO-DIMM / 512MB to Max. 4GB
533/667MHz DDRII SDRAM
- Chipset
- Mobile Intel ® Express Chipset GM965 + ICH8M
- Storage
- 2.5" 9.5mm IDE HDD 5400 rpm SATA Supported capacities of 80/100/120/160/250 GB
Intel Robson support (Option)
* For the compatible HDDs & RAMs by model, please refer "Notebook FAQ".
- Optical Disk Drive
- Modularized 5.25" 12.7mm ODD
8/4/8/5X Super Multi
- I/O Port
- USB 2.0 X4, IEEE 1394 X1, Microphone-in x1 ,Headphone-out x1, Line-in X1 S-Video x1,
VGA X1, RJ-45 connector for Ethernet X1, RJ-11 connector for Modem X1,
4-in-1 card reader x1( SD/MMC/MS/MS Pro) (SDHC compliance),
Type II PCI Express Card Bus 34/35 X1, Port replicator port X1(option), DC-in jack X1
- Audio
- 2 channel HD Audio
Dual array Microphone and two stereo speaker
- Communications
- LAN: PCI-E Ethernet 10/100/1000M Base T on board
Wireless LAN: Support triple band antenna, 4965 a/g/n, 3945 a/b/g
Bluetooth: Bluetooth V2.0 (Option)
- Security
- HDD password, Kensington Lock
- Battery
- Li-Ion 6 cells
- Dimensions
- 355(W)x254.5(D)x25.5~35.2 (H)mm
- Weight
- ~2.74Kg (with 6 cell battery, HDD,ODD)
- OS
- Genuine Windows® Vista Home Premium
- CPU
- Intel® Centrino® processor technology
Intel® Core™ 2 Duo T7100~T9500
( 65nm, FSB 800MHz, L2 cache 2MB or 4MB)
- Video Graphics
- Intel ® Crestline GM 965 / GMA X3100
- Display
- 15.4" TFT-LCD WXGA, 1280x800, Glare type
- System Memory
- 0 on board and 2 SO-DIMM / 512MB to Max. 4GB
533/667MHz DDRII SDRAM
- Chipset
- Mobile Intel ® Express Chipset GM965 + ICH8M
- Storage
- 2.5" 9.5mm IDE HDD 5400 rpm SATA Supported capacities of 80/100/120/160/250 GB
Intel Robson support (Option)
* For the compatible HDDs & RAMs by model, please refer "Notebook FAQ".
- Optical Disk Drive
- Modularized 5.25" 12.7mm ODD
8/4/8/5X Super Multi
- I/O Port
- USB 2.0 X4, IEEE 1394 X1, Microphone-in x1 ,Headphone-out x1, Line-in X1 S-Video x1,
VGA X1, RJ-45 connector for Ethernet X1, RJ-11 connector for Modem X1,
4-in-1 card reader x1( SD/MMC/MS/MS Pro) (SDHC compliance),
Type II PCI Express Card Bus 34/35 X1, Port replicator port X1(option), DC-in jack X1
- Audio
- 2 channel HD Audio
Dual array Microphone and two stereo speaker
- Communications
- LAN: PCI-E Ethernet 10/100/1000M Base T on board
Wireless LAN: Support triple band antenna, 4965 a/g/n, 3945 a/b/g
Bluetooth: Bluetooth V2.0 (Option)
- Security
- HDD password, Kensington Lock
- Battery
- Li-Ion 6 cells
- Dimensions
- 355(W)x254.5(D)x25.5~35.2 (H)mm
- Weight
- ~2.74Kg (with 6 cell battery, HDD,ODD)
