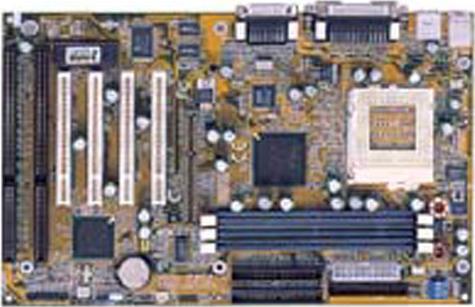

GA-6LX7A

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Intel® PPGA Celeron™ Processor 300 to 433 MHz
    2. Socket 370 for future Processor support
    3. 66/75*/83* MHz System Speed
    4. Auto Detect CPU Voltage
    5. Clock multiplier 3.0/3.5/ ...... /6.5
  • Chipset
    1. Intel 82440 LX AGPset
    2. Winbond 83977EF I/Oset
    3. ESS Solo-1 PCI sound chip
  • Memory
    1. 8MB to 768MB DRAM size
    2. 3 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128 MB EDO DIMM Module
    4. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
    5. Supports ECC Type DIMM Module
  • Expansion Slots
    1. 1 x AGP Slot Support 66/133 MHz speed
    2. 4 x PCI Slots Support 33MHz & PCI 2.2 compliant
    3. 2 x ISA Slots
  • I/O Controller
    1. 2 x Ultra DMA/33 Bus Master IDE ports
    2. 2 x USB ports onboard
    3. 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x MIC onboard
    4. IrDA TX/RX Header (optional)
  • BIOS
    1. #149;2 Mbit FLASH RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Form Factor
    1. ATX , 4 layer PCB (30.5*19.0 cm)
  • Driver
    1. Intel Ultra DMA/33 Bus Master IDE Driver
    2. Intel PIIX4 Patch Utility for Windows 95
    3. ESS Solo-1 PCI sound driver
  • Other Features
    1. Supports Wake On LAN Header (WOL)
    2. Supports Internal/External modem wake on
    3. Supports 3 Fan Detection Connectors
    4. Poly fuse for keyboard overcurrent protection
  • Power
    1. ATX Power connector
    2. Power on by Keyboard, PS/2 Mouse, LAN, RTC Alarm,Modem Ring & Switch
    3. Power Off by WindowsR 98 Shut down & Switch
    4. AC Recovery ON/OFF control
    5. Stop CPU Fan during entering suspend mode
    6. 3 Level ACPI LED Support
  • CPU
    1. Intel® PPGA Celeron™ Processor 300 to 433 MHz
    2. Socket 370 for future Processor support
    3. 66/75*/83* MHz System Speed
    4. Auto Detect CPU Voltage
    5. Clock multiplier 3.0/3.5/ ...... /6.5
  • Chipset
    1. Intel 82440 LX AGPset
    2. Winbond 83977EF I/Oset
    3. ESS Solo-1 PCI sound chip
  • Memory
    1. 8MB to 768MB DRAM size
    2. 3 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128 MB EDO DIMM Module
    4. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
    5. Supports ECC Type DIMM Module
  • Expansion Slots
    1. 1 x AGP Slot Support 66/133 MHz speed
    2. 4 x PCI Slots Support 33MHz & PCI 2.2 compliant
    3. 2 x ISA Slots
  • I/O Controller
    1. 2 x Ultra DMA/33 Bus Master IDE ports
    2. 2 x USB ports onboard
    3. 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x MIC onboard
    4. IrDA TX/RX Header (optional)
  • BIOS
    1. #149;2 Mbit FLASH RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Form Factor
    1. ATX , 4 layer PCB (30.5*19.0 cm)
  • Driver
    1. Intel Ultra DMA/33 Bus Master IDE Driver
    2. Intel PIIX4 Patch Utility for Windows 95
    3. ESS Solo-1 PCI sound driver
  • Other Features
    1. Supports Wake On LAN Header (WOL)
    2. Supports Internal/External modem wake on
    3. Supports 3 Fan Detection Connectors
    4. Poly fuse for keyboard overcurrent protection
  • Power
    1. ATX Power connector
    2. Power on by Keyboard, PS/2 Mouse, LAN, RTC Alarm,Modem Ring & Switch
    3. Power Off by WindowsR 98 Shut down & Switch
    4. AC Recovery ON/OFF control
    5. Stop CPU Fan during entering suspend mode
    6. 3 Level ACPI LED Support
