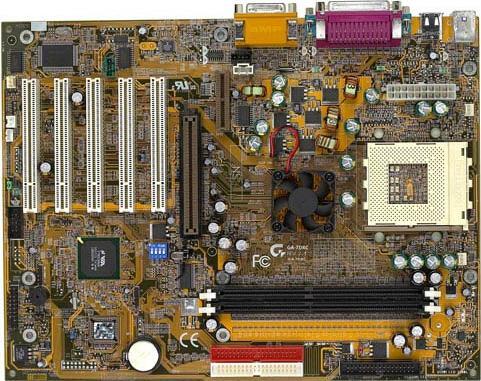

GA-7DXC (Rev. 2.4)

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket A for AMD Athlon™ /Duron™ 200MHz FSB processors
    2. Could Run at 95/100/103*/105*/110*/115*/133* MHz
    3. Auto-detects CPU voltage
  • Chipset
    1. AMD-761™ north bridge
    2. VIA 686B south bridge
    3. Creative CT5880 sound chip
  • Memory
    1. Supports up to 2GB of PC1600 / DDR200 SDRAM
    2. 2 DDR DIMMs of 184-pin sockets
    3. Supports 72bits ECC type DRAM integrity mode
  • Expansion Slots
    1. 1 x AGP slot supports 2X/4X mode & AGP 2.0 compliant
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x AMR (Audio Modem Riser) slot
  • I/O Controller
    1. UDMA ATA 100/66 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
    4. 2 x USB ports on board, 2 x USB ports by cable (cable optional)
    5. IrDA TX / RX header
  • H/W Monitoring
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fan power & speed detection connectors
    3. System health status detect & report by BIOS
    4. H/W detect & report Power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. AWARD BIOS, 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/WinMe/ Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#0~#3, SCSI, LS120, ZIP & CD-ROM bootable
    3. AC recovery ON/OFF control
    4. Auto-detect & report system health status
    5. Supports @BIOS™ Live Update
  • Form Factor
    1. ATX form factor, 4 layers PCB (31.2*23.2 cm)
  • Driver
    1. AMD service pack utility
    2. Creative PCI sound driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Supports Wake-On-LAN (WOL)
    3. Supports Internal / External Modem Ring On
    4. Supports USB KB/MS Wake up from S3
    5. Supports EasyTune III™
    6. Includes 3 fan power connectors
    7. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 95/98/Me/2000/NT shut down & Switch
  • CPU
    1. Socket A for AMD Athlon™ /Duron™ 200MHz FSB processors
    2. Could Run at 95/100/103*/105*/110*/115*/133* MHz
    3. Auto-detects CPU voltage
  • Chipset
    1. AMD-761™ north bridge
    2. VIA 686B south bridge
    3. Creative CT5880 sound chip
  • Memory
    1. Supports up to 2GB of PC1600 / DDR200 SDRAM
    2. 2 DDR DIMMs of 184-pin sockets
    3. Supports 72bits ECC type DRAM integrity mode
  • Expansion Slots
    1. 1 x AGP slot supports 2X/4X mode & AGP 2.0 compliant
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x AMR (Audio Modem Riser) slot
  • I/O Controller
    1. UDMA ATA 100/66 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
    4. 2 x USB ports on board, 2 x USB ports by cable (cable optional)
    5. IrDA TX / RX header
  • H/W Monitoring
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fan power & speed detection connectors
    3. System health status detect & report by BIOS
    4. H/W detect & report Power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. AWARD BIOS, 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/WinMe/ Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#0~#3, SCSI, LS120, ZIP & CD-ROM bootable
    3. AC recovery ON/OFF control
    4. Auto-detect & report system health status
    5. Supports @BIOS™ Live Update
  • Form Factor
    1. ATX form factor, 4 layers PCB (31.2*23.2 cm)
  • Driver
    1. AMD service pack utility
    2. Creative PCI sound driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Supports Wake-On-LAN (WOL)
    3. Supports Internal / External Modem Ring On
    4. Supports USB KB/MS Wake up from S3
    5. Supports EasyTune III™
    6. Includes 3 fan power connectors
    7. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 95/98/Me/2000/NT shut down & Switch

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
