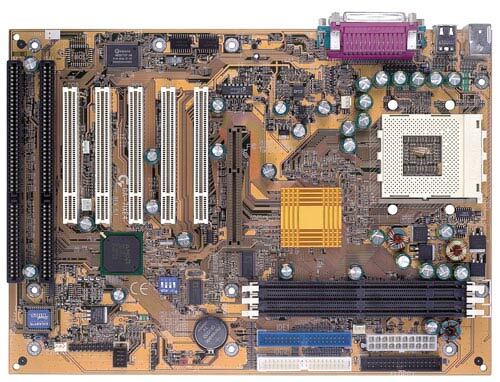

GA-7IXE4 (Rev. 1.0)

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket A for AMD® -K7 Athlon™ & Duron™ 200MHz FSB processors
    2. 90*/95*/100/105*/110*/115* MHz FSB
    3. AUTO detect CPU voltage
  • Chipset
    1. AMD® 751 (Irongate) North Bridge
    2. AMD® 756 (Viper) South Bridge
    3. Winbond W83977 I/O set
    4. Winbond W83782 health chip
  • Memory
    1. 16MB to 768MB DRAM size
    2. 3 x 3.3V DIMM sockets
    3. Supports 64/128/256 MB SDRAM DIMM module
    4. Supports ECC type DIMM module (72bits)
  • Expansion Slots
    1. 1 x AGP slot supports 2X mode
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 2 x ISA slots
  • I/O Controller
    1. 2 x Ultra DMA 33/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 x USB ports on board
    4. 2 x USB ports by cable (optional accessary)
    5. IrDA TX / RX header
  • H/W Monitoring
    1. 3 fan power & speed detection connectors
    2. Case open detection
    3. System health status detect & report by Gigabyte Windows Utility Manager
    4. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • BIOS
    1. 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. ATX , 4 layer PCB (30.5*20.8cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. AMD® AGP miniport driver
    3. AMD® bus master IDE driver, supports UDMA 33/66
  • Other Features
    1. Includes Wake-On-LAN header (WOL)
    2. Includes Wake-On-Ring (WOR)
    3. Poly fuse for keyboard & USB over-current protection
  • Power
    1. ATX power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, modem & switch
    3. Power-off by Windows 95/98/2000 Shut down & Switch
    4. AC Recovery ON/OFF control
    5. 3 level ACPI LED support
  • CPU
    1. Socket A for AMD® -K7 Athlon™ & Duron™ 200MHz FSB processors
    2. 90*/95*/100/105*/110*/115* MHz FSB
    3. AUTO detect CPU voltage
  • Chipset
    1. AMD® 751 (Irongate) North Bridge
    2. AMD® 756 (Viper) South Bridge
    3. Winbond W83977 I/O set
    4. Winbond W83782 health chip
  • Memory
    1. 16MB to 768MB DRAM size
    2. 3 x 3.3V DIMM sockets
    3. Supports 64/128/256 MB SDRAM DIMM module
    4. Supports ECC type DIMM module (72bits)
  • Expansion Slots
    1. 1 x AGP slot supports 2X mode
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 2 x ISA slots
  • I/O Controller
    1. 2 x Ultra DMA 33/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 x USB ports on board
    4. 2 x USB ports by cable (optional accessary)
    5. IrDA TX / RX header
  • H/W Monitoring
    1. 3 fan power & speed detection connectors
    2. Case open detection
    3. System health status detect & report by Gigabyte Windows Utility Manager
    4. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • BIOS
    1. 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. ATX , 4 layer PCB (30.5*20.8cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. AMD® AGP miniport driver
    3. AMD® bus master IDE driver, supports UDMA 33/66
  • Other Features
    1. Includes Wake-On-LAN header (WOL)
    2. Includes Wake-On-Ring (WOR)
    3. Poly fuse for keyboard & USB over-current protection
  • Power
    1. ATX power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, modem & switch
    3. Power-off by Windows 95/98/2000 Shut down & Switch
    4. AC Recovery ON/OFF control
    5. 3 level ACPI LED support
