CRAO438
(rev. 1.0)

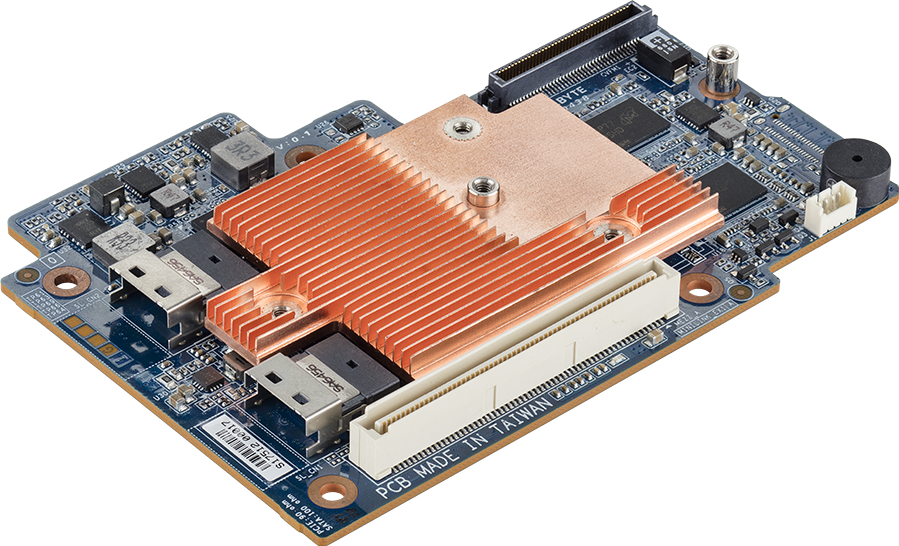

Broadcom SAS3108 H/W RAID Card (32-PD)
Broadcom SAS3108 OCP type hardware RAID Card (32-PD)
- 2 x SlimSAS ports, up to 8 x SAS 12Gb/s ports
- Up to 32 x physical devices supported via SAS expander
- Broadcom SAS3108
- Hardware RAID 0/1/5/6/10/50/60
- 2GB DDR3 1866 cache memory
- PCIe 3.0 x8 bus
- (Optional) CacheVault Flash Cache Protection Module
- OCP Form Factor (Type1)
Request a Quote
1/3
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Ports
2 x SlimSAS ports up to 8 x SAS 12Gb/s ports
Up to 32 x physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
Up to 32 x physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
Controller
Broadcom® SAS3108
RAID
Hardware RAID 0/1/5/6/10/50/60
2GB DDR3 1866 cache memory
Compatible with Broadcom® CacheVault Flash Cache Protection Module P/N: 25FCZ-CVM020-L1R (as an option)
Compatible with Broadcom® CacheVault Flash Cache Protection Module P/N: 25FCZ-CVM020-L1R (as an option)
Interface
PCIe 3.0 x8 bus
Dimension
110.85 x 78 mm
Format
OCP mezzanine (Type1)
Remark
California Proposition 65:
WARNING: This product contains a chemical, including lead,
know to the state of California to cause birth defects or other reproductive harm.
http://www.p65warnings.ca.gov/
Ordering Information
9CRAO438NR-00
15 units per carton
Packaging dimensions: 305 x 251 x 220 mm
15 units per carton
Packaging dimensions: 305 x 251 x 220 mm
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
Utility
- All
- All
- Windows Server 2016 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Windows 8.1 64bit
- Windows 10 64bit
- VMware 6.0 U2
- VMware 6.0 U1
- Linux
- FreeBSD
Chipset
Chipset
Version
Size
Date
LSI SAS3108 Driver
Version : 6.14-6.714.05.00
6.94 MB
Aug 15, 2017
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 64bit,Windows 10 64bit,Windows Server 2016 64bit
LSI SAS3108 Driver for FreeBSD
Version : 6.12-06.712.04.00
1.04 MB
Aug 15, 2017
OS: FreeBSD
- All
- All
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2008 R2 64bit
- Windows 8.1 64bit
- Windows 10 64bit
- Linux
Utility
Description
Version
Size
Date
MegaRAID Storage Manager (MSM)
Version : 17.05.00.02
100.6 MB
Sep 25, 2017
OS: Windows Server 2008 R2 64bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit,Windows 10 64bit,Windows Server 2016 64bit
MegaRAID Storage Manager (MSM)
For Linux 64-bit
For Linux 64-bit
Version : 17.05.00.02
105.73 MB
Sep 25, 2017
OS: Linux
MegaRAID Storage Manager (MSM)
For Linux 32-bit
For Linux 32-bit
Version : 17.05.00.02
107.24 MB
Sep 25, 2017
OS: Linux
