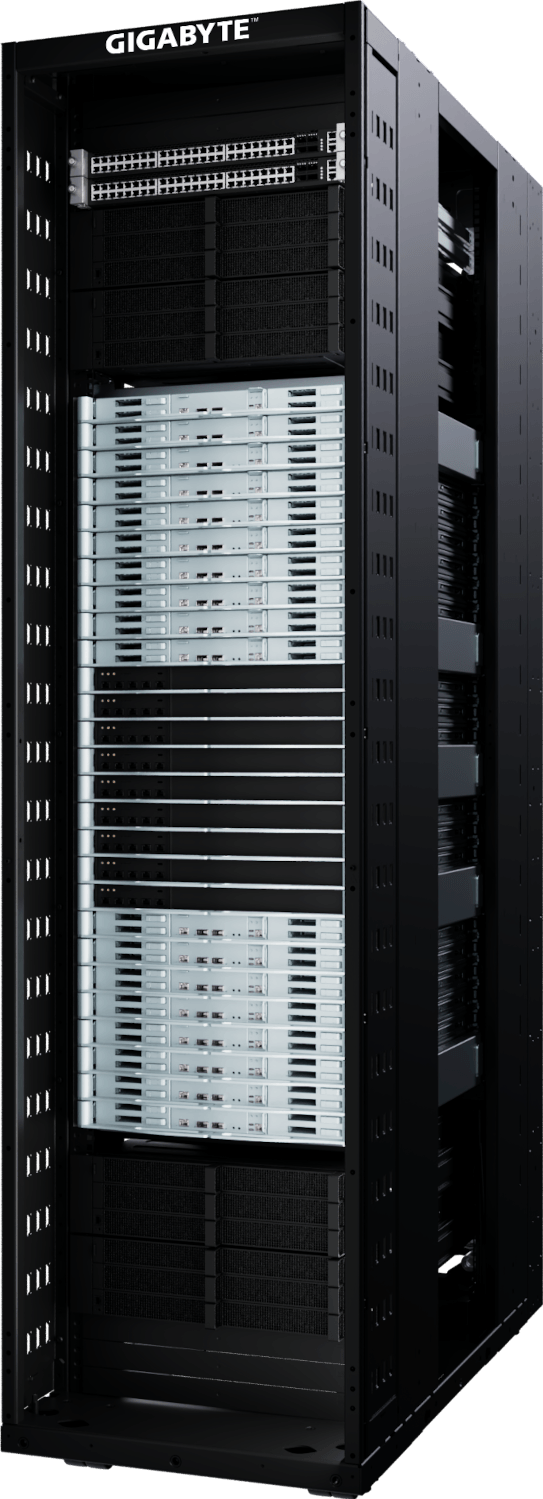

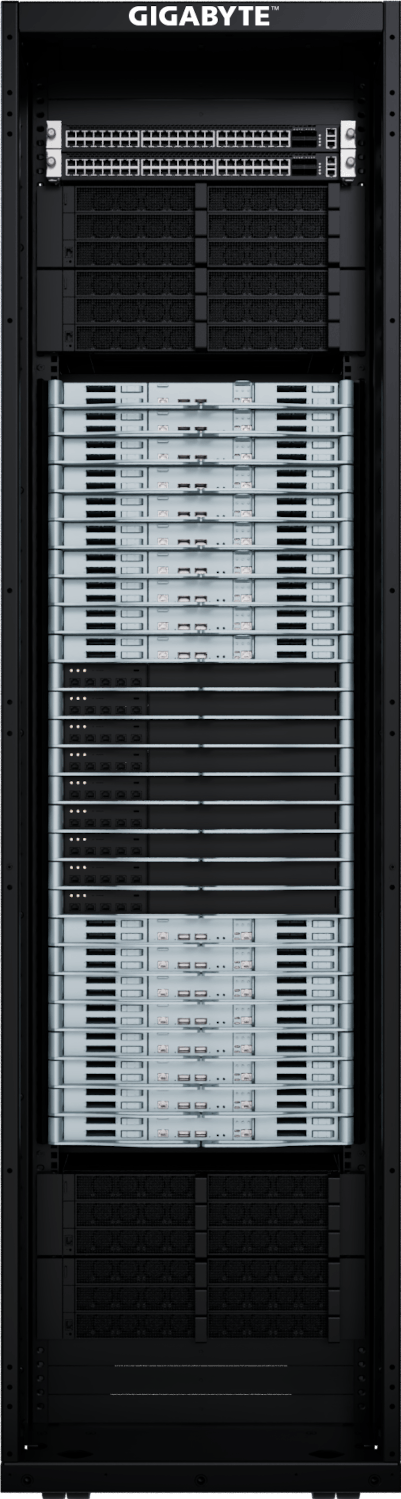

NVIDIA Vera Rubin NVL72
GIGAPOD AI DLC Rack Scale Solution
- Built with NVIDIA Vera Rubin Superchips
- 72 x NVIDIA Rubin GPUs and 36 x NVIDIA Vera CPUs
- GPU and GPU connected by the sixth generation NVIDIA NVLink™ with up to 3.6 TB/s bandwidth
- 20.7 TB HBM4 GPU memory with up to 1580 TB/s bandwidth
- Integrated NVIDIA BlueField®-4 DPU and ConnectX®-9 SuperNIC™
- Compatible with NVIDIA Quantum-X800 InfiniBand or Spectrum-X™ Ethernet support
- Compatible with GIGABYTE POD Manager software for cluster management / orchestration
- Supports flexible storage with GIGABYTE storage servers and validated partner solutions
Specifications
DLB5-CB0
Dimensions1,200 x 600 x 2,300 mm (L x W x H)
GPU72 x NVIDIA Rubin GPUs
CPU36 x NVIDIA Vera CPUs
Compute Tray18 x GIGABYTE XN16-CB0-L01
NVLink Switch Tray9 x NVIDIA NVLink™ Switches
Management Switch2 x Out-of-Band management switches
Power Shelf4 x 3RU 110 kW power shelves
Bus Bar1 x 54 V DC, 5000 A Bus Bar
Cable Cartridge4 x NVIDIA NVLink™ cable cartridges
CDUCompatible with in-row CDU
[Note] The Facility Water System (FWS) loop must meet the water quality values specified in ASHRAE Liquid Cooling Guidelines for Datacom Equipment Centers, 2nd ed., Ch. 5, as reproduced in the ASHRAE TC 9.9 white paper Water-Cooled Servers: Common Designs, Components, and Processes (2019), Table 1.
[Note] The Facility Water System (FWS) loop must meet the water quality values specified in ASHRAE Liquid Cooling Guidelines for Datacom Equipment Centers, 2nd ed., Ch. 5, as reproduced in the ASHRAE TC 9.9 white paper Water-Cooled Servers: Common Designs, Components, and Processes (2019), Table 1.
Part Numbers9NDLB5CB0MR000*
XN16-CB0-L01
Form Factor1U Liquid-cooled compute node
CPU2 x NVIDIA Vera CPU (88 x Olympus cores)
GPU4 x NVIDIA Rubin GPUs
GPU MemoryUp to 288 GB HBM4 per GPU (up to 1152 GB per tray)
Storage4 x E1.S Gen6 NVMe drive bays
1 x E1.S Gen5 NVMe drive bay for boot SSD
1 x E1.S Gen5 NVMe drive bay for boot SSD
Networking8 x 800 Gb/s OSFP (NVIDIA ConnectX®-9 SuperNIC™)
2 x 400 Gb/s QSFP (NVIDIA BlueField®-4 DPU)
1 x 1 Gb/s Management LAN
2 x 400 Gb/s QSFP (NVIDIA BlueField®-4 DPU)
1 x 1 Gb/s Management LAN
Front I/O1 x USB 3.2 Gen1 / DP port (Type-C, supports DP Alt Mode)
1 x USB 2.0 port for UART (Type-C)
1 x MLAN / Data LAN port (RJ45, shared via LAN switch)
1 x USB 2.0 port for UART (Type-C)
1 x MLAN / Data LAN port (RJ45, shared via LAN switch)
Rear I/O4 x NVIDIA NVLink™ Switch connectors

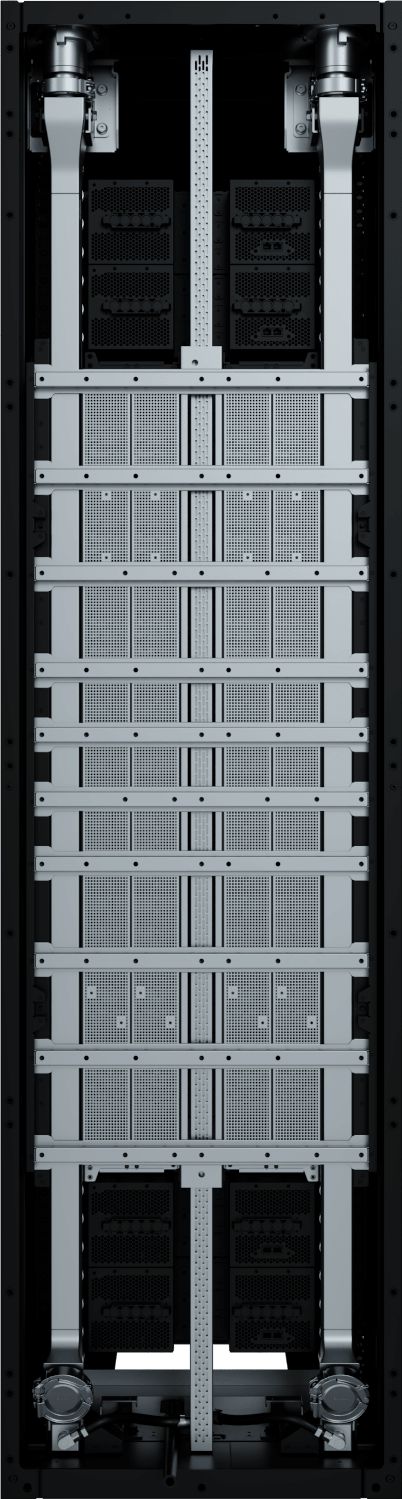

System Cooling100% liquid-cooled with internal manifold
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
