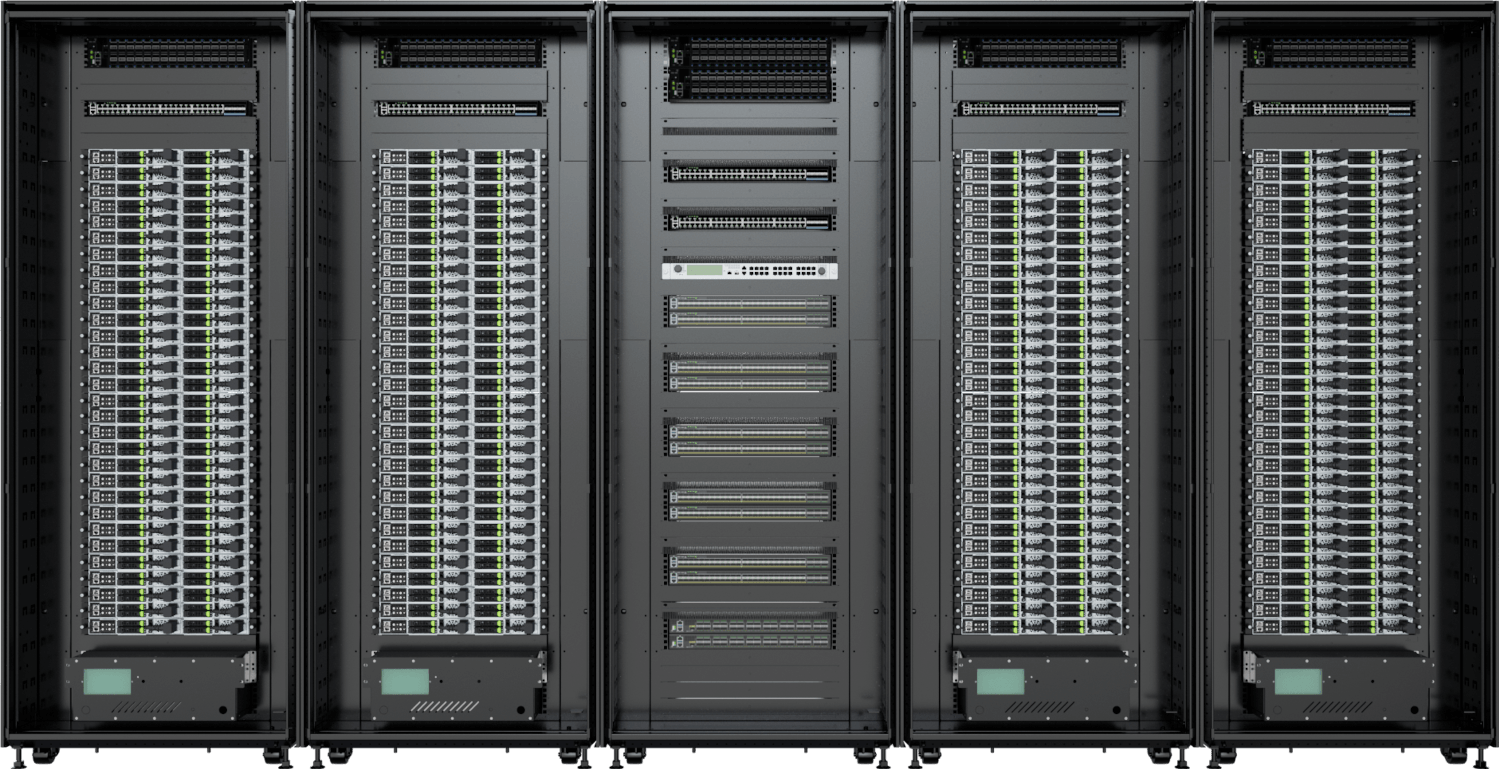

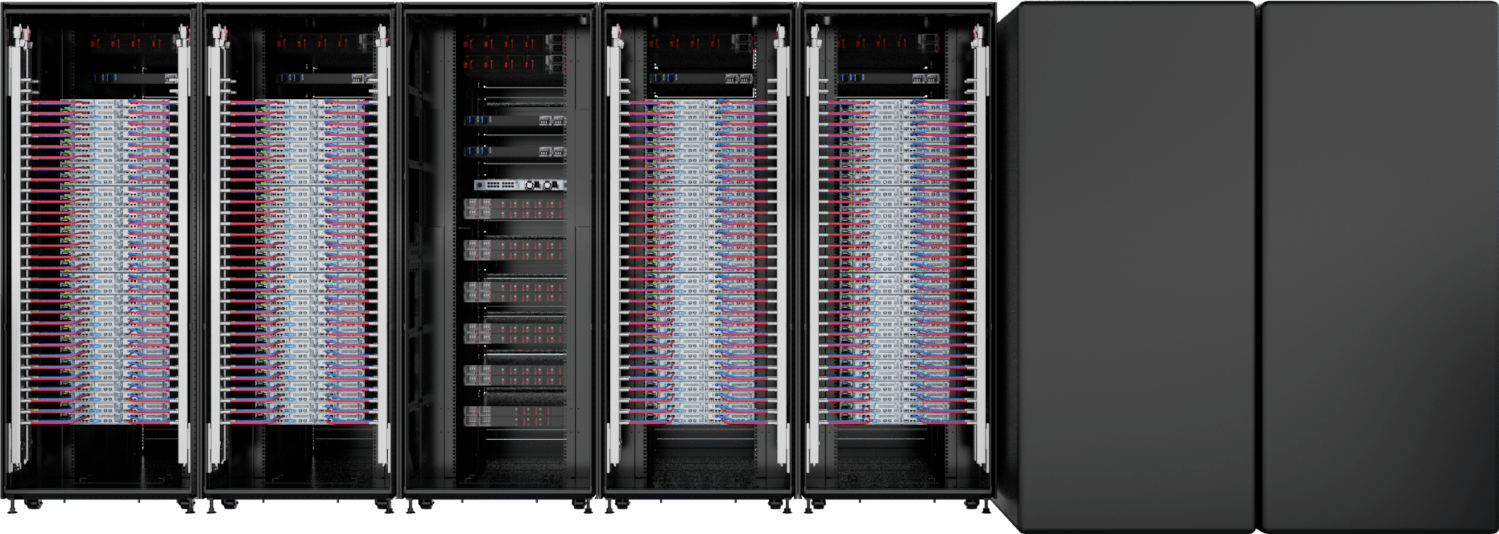

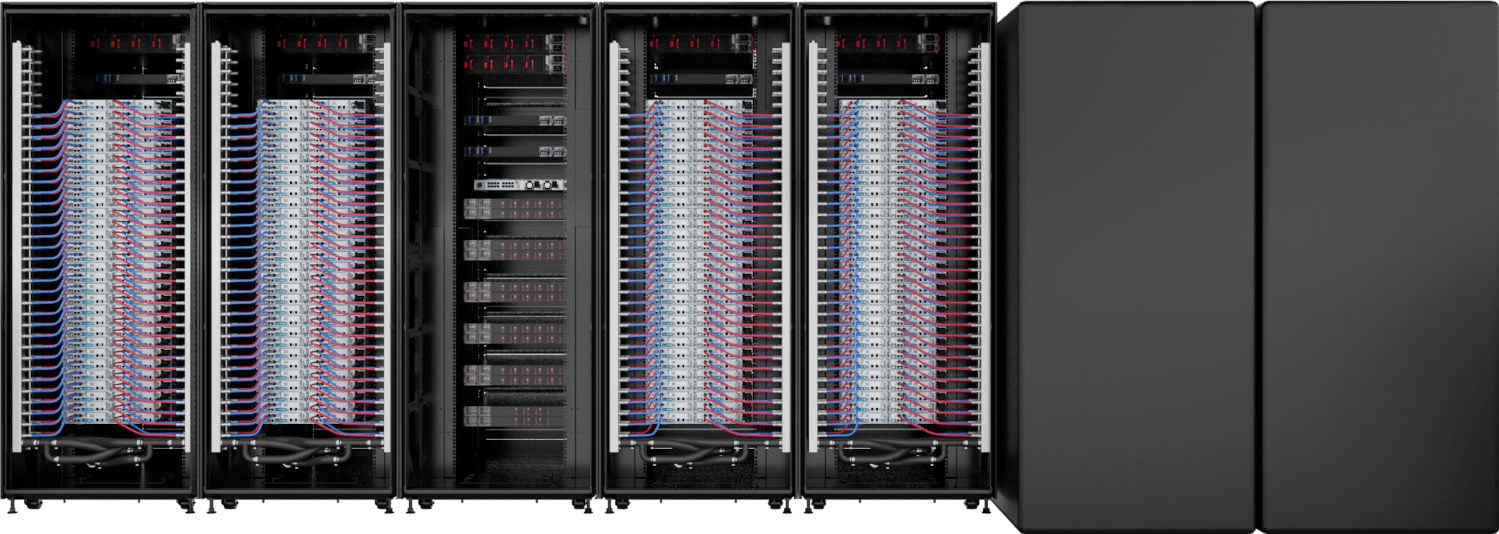

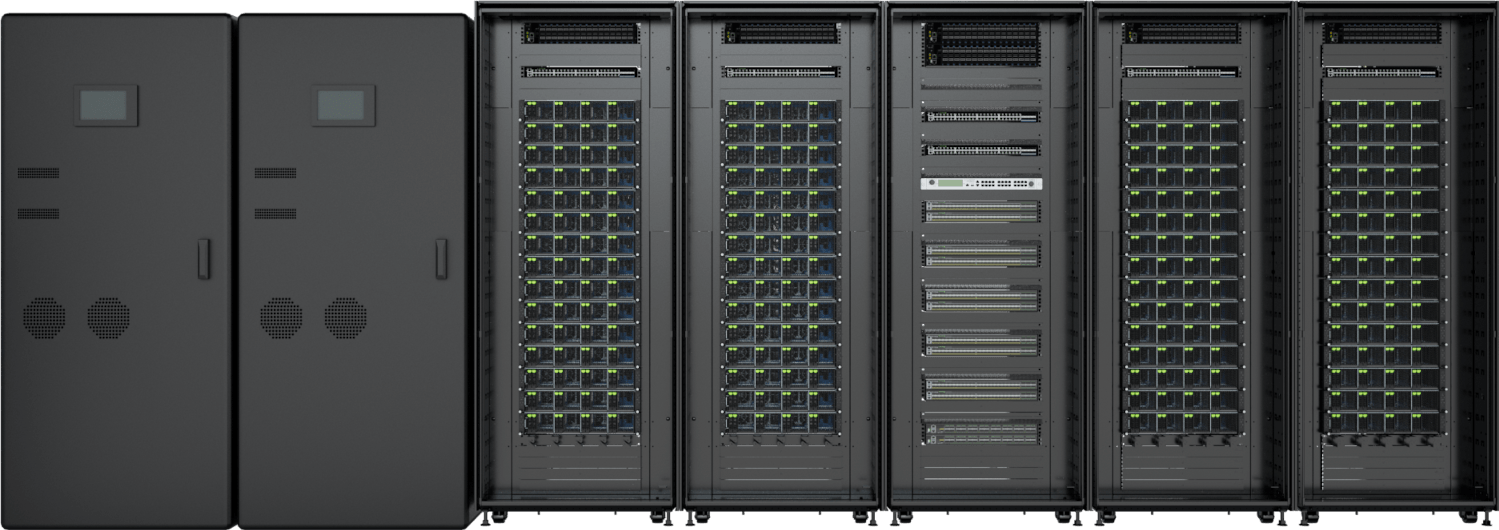

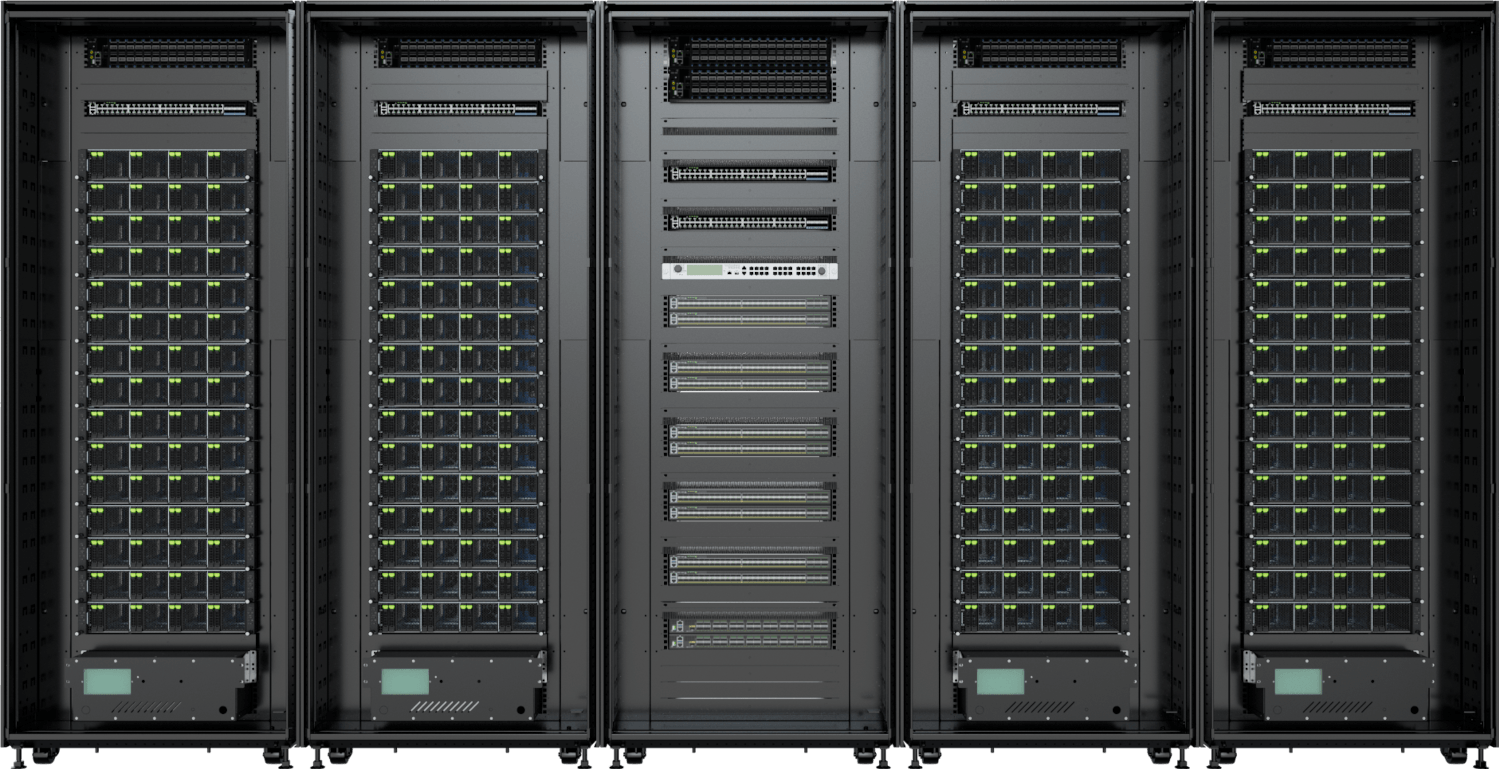

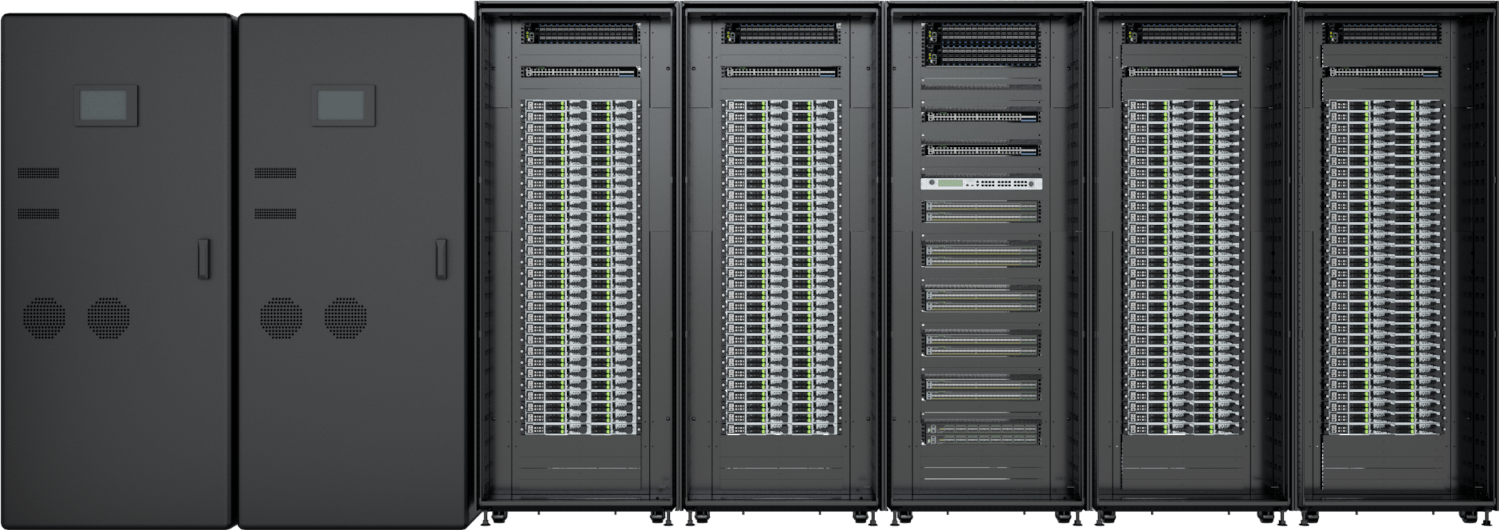

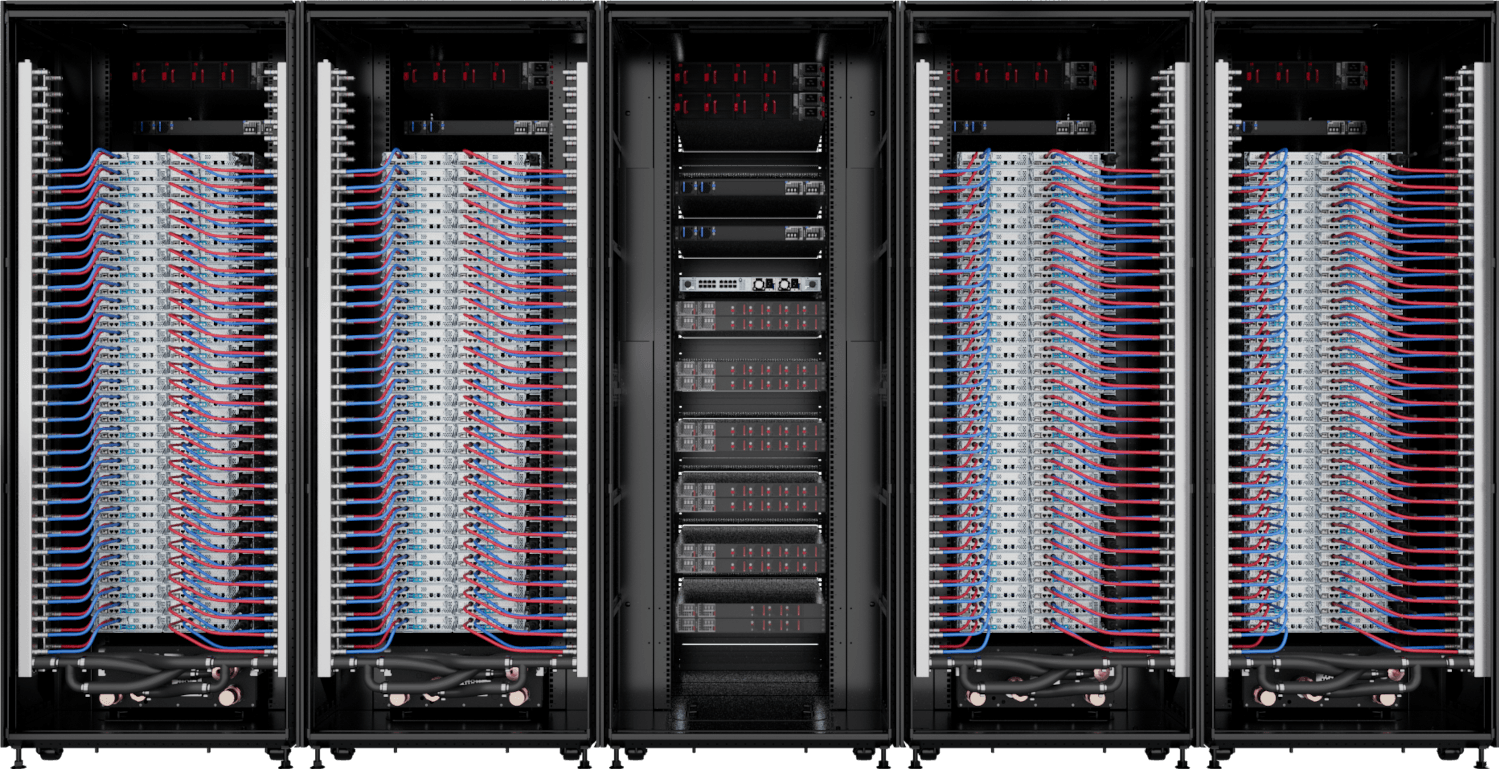

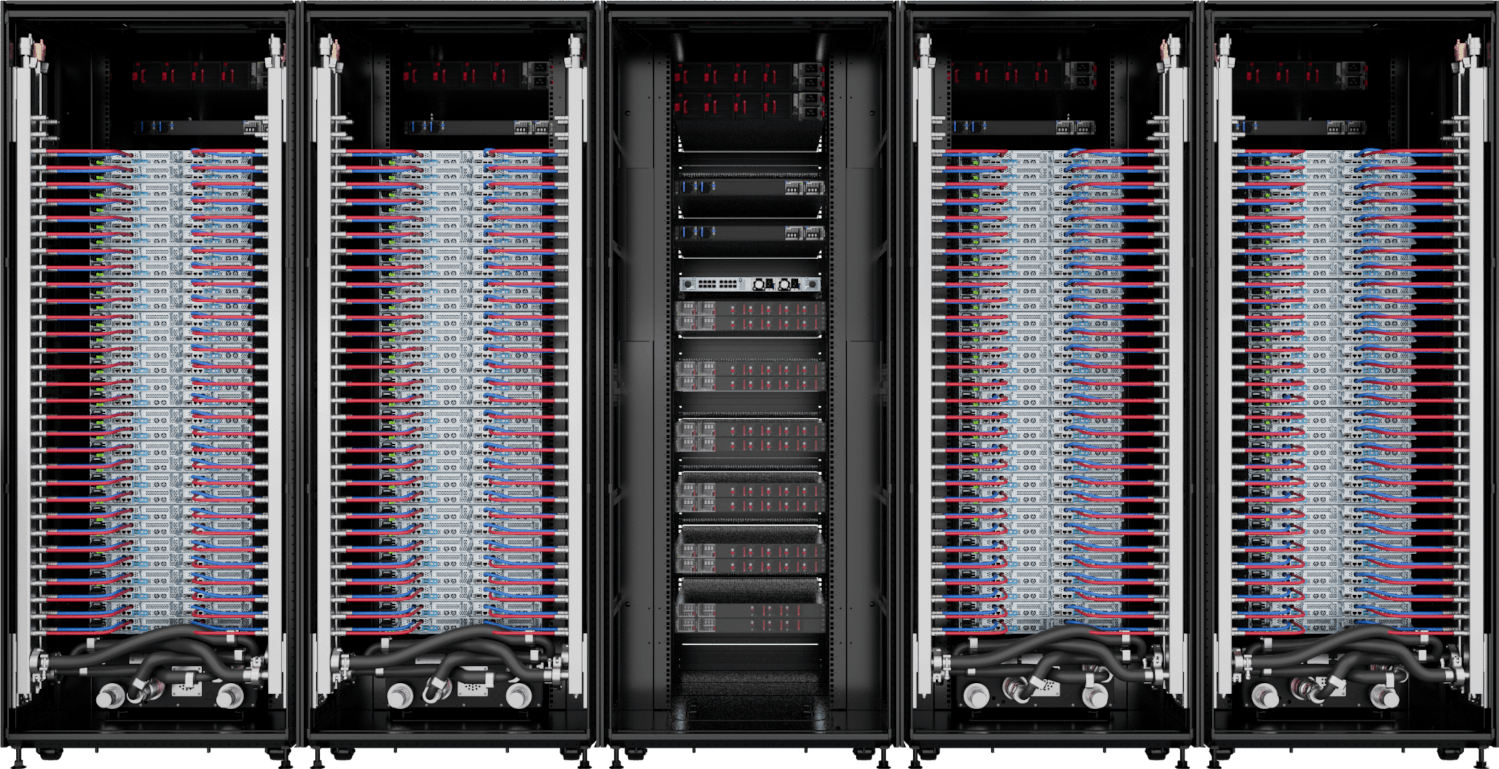

42U 240 Nodes
GIGAPOD HPC DLC POD Scale Solution
- 120 x GIGABYTE 1U2N DLC high density servers or
60 x GIGABYTE 2U4N DLC high density servers - 480 x Intel® Xeon® 6+/6 Processors
- Up to 105 kW rack power consumption
- Reserved space for InfiniBand / Ethernet switches
- Integrated G-REX cluster-level DLC power and cooling management kit
- Compatible with GIGABYTE POD Manager software for cluster management / orchestration
- Supports flexible storage with GIGABYTE storage servers and validated partner solutions
Configuration
| PH07 Series | ||
|---|---|---|
| Cooling Type | Direct Liquid Cooling | |
| Racks per Scalable Unit (Compute + Management) | 4+1 | |
| Rack Height | 42U | |
| Server Model | ||
| Servers per Rack | 30 x 1U2N DLC high density servers | 15 x 2U4N DLC high density servers |
| CPU | Intel® Xeon® 6+ Processors - Intel® Xeon® 6900E+ Processors Intel® Xeon® 6 Processors - Intel® Xeon® 6900-Series Processors Total 480 processors | Intel® Xeon® 6+ Processors - Intel® Xeon® 6900E+ Processors Intel® Xeon® 6 Processors - Intel® Xeon® 6900-Series Processors - Intel® Xeon® 6700-Series Processors - Intel® Xeon® 6500-Series Processors Total 480 processors |
| Switch | Flexible validated InfiniBand / Ethernet switch configurations | |
| PDUs per Rack | 4 x PDUs | |
| PDU Specifications | Input: 415 V, 100 A, 3-phase | |
| Rack Power Consumption | Up to 105 kW | |
| CDU | In-Rack / In-Row | |
| CDU Specifications | In-Rack Liquid-to-Liquid CDU: Cooling Capacity: 200 kW (4°C approach temperature) Primary Loop Connections: 1" FD83 QDC couplings (inlet/outlet) Input Power: 1P / AC 220-240 V / 50-60 Hz 1+1 redundant power supplies and pumps In-Row Liquid-to-Liquid CDU: Cooling Capacity: 1350 kW (4°C approach temperature) Primary Loop Connections: 5" clamp interface (inlet/outlet) Input Power: 2 x IEC 60309 100A (4P5W, 6h plug), AC 380 V ±10% / 3P / 60 Hz 1+1 redundant pumps and redundant A/B power feeds [Note] The Facility Water System (FWS) loop must meet the water quality values specified in ASHRAE Liquid Cooling Guidelines for Datacom Equipment Centers, 2nd ed., Ch. 5, as reproduced in the ASHRAE TC 9.9 white paper Water-Cooled Servers: Common Designs, Components, and Processes (2019), Table 1. | |
| Management | Integrated G-REX DLC power and cooling management kit: - N120-LS0 management node - Real-time cluster-level monitoring and control - Supports Modbus, Redfish, and REST APIs for seamless integration with CDUs and RDHx Optional GIGABYTE POD Management (GPM) software suite: - Essential single-node BMC for real-time hardware health and remote system oversight - Unified cluster-scale management and deep telemetry for high-density deployments - Total POD-level orchestration for infrastructure provisioning and environmental monitoring | |
| Storage Solutions | Flexible validated partner solutions with GIGABYTE storage servers | |
| Cooling Type |
| Racks per Scalable Unit (Compute + Management) |
| Rack Height |
| Server Model |
| Servers per Rack |
| CPU |
| Switch |
| PDUs per Rack |
| PDU Specifications |
| Rack Power Consumption |
| CDU |
| CDU Specifications |
| Management |
| Storage Solutions |
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
