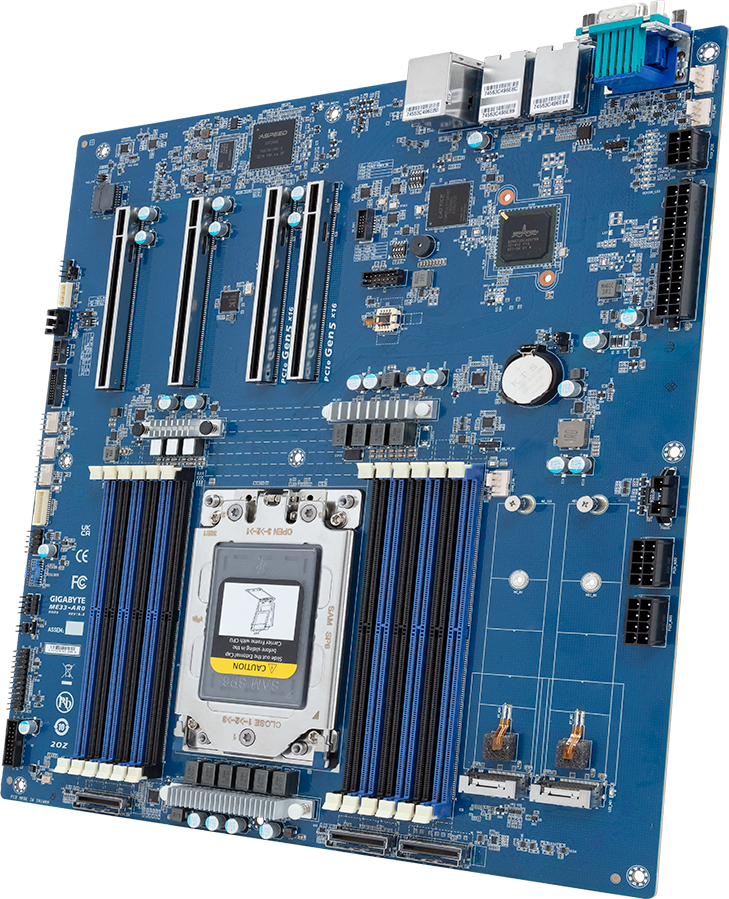

ME33-AR0
(rev. 1.0)
AMD EPYC™ 8004 UP Server Board
- AMD EPYC™ 8004 Series processors
- Single processor, 5nm technology
- 6-Channel RDIMM DDR5, 12 x DIMMs
- 2 x 1Gb/s BASE-T LAN ports (Broadcom® BCM5720)
- 1 x Dedicated management port
- 2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA
- 1 x MCIO 8i for 2 x Gen5 NVMe
- 2 x M.2 slots with PCIe Gen5 x4 interface
- 3 x PCIe Gen5 x16 expansion slots
- 1 x PCIe Gen4 x16 expansion slot
Request a Quote
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
E-ATX
304.8 x 330.2 mm (W x D)
304.8 x 330.2 mm (W x D)
CPU
AMD EPYC™ 8004 Series processors
Single processor, 5nm technology
Up to 64-core, 128 threads per processor
cTDP up to 225W
Single processor, 5nm technology
Up to 64-core, 128 threads per processor
cTDP up to 225W
Socket
1 x LGA 4844
Socket SP6
Socket SP6
Chipset
System on Chip
Memory
12 x DIMM slots
DDR5 memory supported only
6-Channel memory architecture
RDIMM modules up to 96GB supported
Memory speed: Up to 4800 MHz (1DPC), 3600 MHz (2DPC)
DDR5 memory supported only
6-Channel memory architecture
RDIMM modules up to 96GB supported
Memory speed: Up to 4800 MHz (1DPC), 3600 MHz (2DPC)
LAN
2 x 1Gb/s BASE-T LAN ports (1 x Broadcom® BCM5720)
NCSI function supported
1 x 10/100/1000 management LAN
NCSI function supported
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
SAS
N/A
SATA
2x MCIO 8i for 16 x SATA
RAID
N/A
Expansion Slots
Slot_7: 1 x PCIe x16 (Gen5 x16 bus) slot
Slot_6: 1 x PCIe x16 (Gen5 x16 bus) slot
Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot
Slot_2: 1 x PCIe x16 (Gen4 x16 bus) slot
2 x M.2 slots:
- M-key
- PCIe Gen5 x4
- Supports 2280/22110 cards
Total 3 x MCIO 8i connectors:
- 2 x MCIO 8i connectors for 4 x Gen5 NVMe or 16 x SATA
- 1 x MCIO 8i connector for 2 x Gen5 NVMe
Slot_6: 1 x PCIe x16 (Gen5 x16 bus) slot
Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot
Slot_2: 1 x PCIe x16 (Gen4 x16 bus) slot
2 x M.2 slots:
- M-key
- PCIe Gen5 x4
- Supports 2280/22110 cards
Total 3 x MCIO 8i connectors:
- 2 x MCIO 8i connectors for 4 x Gen5 NVMe or 16 x SATA
- 1 x MCIO 8i connector for 2 x Gen5 NVMe
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
3 x MCIO 8i connectors
2 x M.2 slots
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x USB 2.0 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
3 x MCIO 8i connectors
2 x M.2 slots
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x USB 2.0 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Rear I/O
2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
OS Compatibility
Please refer to OS compatibility table in support page
Board Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x ME33-AR0
1 x I/O shield
1 x Quick start guide
1 x MCIO 8i to 8 x SATA 6Gb/s cable
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
1 x MCIO 8i to 8 x SATA 6Gb/s cable
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x ME33-AR0
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
Reference Numbers
Retail: 9ME33AR0MR-000-10*
Bulk: 9ME33AR0NR-000-10*
Part Numbers:
- I/O shield: 12AIO-MZ33AR-00R
- MCIO 8i to 8 x SATA 6Gb/s cable: 25CF9-600721-M0R
Optional parts:
- *MCIO 8i to 4i x 2 cable: 25CF9-550700-A4R
*NOTE: Please select GIGABYTE qualified cable to make sure Gen5 signal quality
Bulk: 9ME33AR0NR-000-10*
