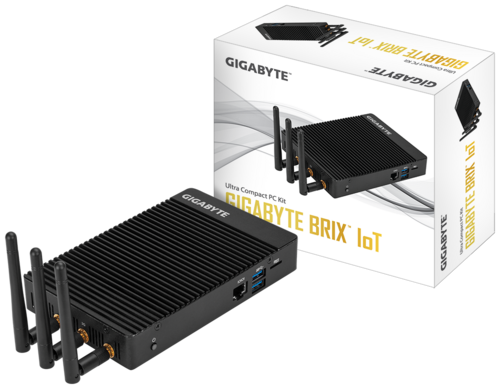

GB-EACE-3450 (Rev. 1.0)

Featuring 14nm Intel^® Apollo Lake N3450 processor

Fanless compact design with 0.46L: 165(W) x 105(D) x 27(H) mm, Weight 738g

Supports 1 x COM Port (RS232/422/485) via RJ45 connector*, 2 x HDMI, 4 x USB3.0

Intel^® IEEE 802.11ac, Dual Band 1x1 Wi-Fi & Bluetooth 4.2 NGFF M.2 card

1 x mini PCIe slot for 3G module and 1 x Micro SIM card slot

2 x SO-DIMM DDR3L 1.35V Slots (1333 / 1600 / 1866) MHz

Supports 1 x M.2 SSD (2280) slot, optional eMMC and Micro SD card slot

Supports TPM2.0 Module (Optional)

Supports wide range 12V to 19V DC-IN Voltage

Wide operating temperature 0 ~ 50° C

VESA mounting bracket (75 x 75mm + 100 x 100mm)
