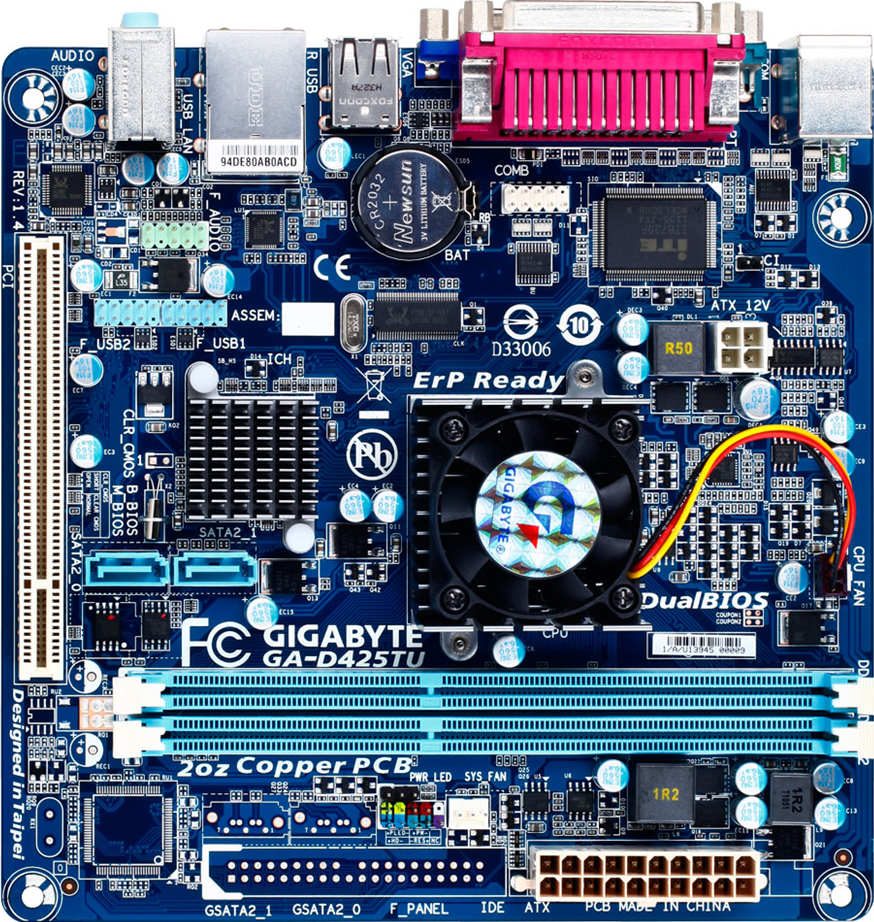

GA-D425TU (Rev. 1.4)

Intel® Atom D425+ NM 10
OverviewSpecificationsSupportWhere to Buy

Specifications

  • CPU
    1. Built in with an Intel® Single-core Atom™ D425 processor (1.8 GHz)
      * Do not disassemble the onboard CPU/chipset and theheatsinks/fan by yourself to avoid damage to these components.
    2. 512K L2 cache
  • Chipset
    1. Intel® NM10
  • Memory
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 4 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Support for DDR3 800 MHz memory modules
    (Please refer "Memory Support List" for more information.)
  • Audio
    1. Realtek ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN
    1. Realtek GbE LAN Chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI slot
  • Storage Interface
  • Chipset:
    1. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
  • USB
  • Chipset:
    1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 20-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 2 x SATA 3Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 2 x USB 2.0/1.1 headers
    9. 1 x serial port header
    10. 1 x chassis intrusion header
    11. 1 x power LED header
  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 Mouse port
    3. 1 x parallel port
    4. 1 x serial port
    5. 1 x D-Sub port
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In/Line Out/Microphone)
  • I/O Controller
    1. iTE I/O Controller Chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU temperature detection
    3. CPU/System fan speed detection
    4. CPU fan speed control
  • BIOS
    1. 2 x 4 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Unique Features
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    8. Support for SMART Recovery
    9. Support for Auto Green
    10. Support for ON/OFF Charge
    11. Support for Q-Share
  • Bundled Software
    1. Norton Internet Security (OEM version)
  • Operating System
    1. Support for Microsoft® Windows® 7/Vista/XP
  • Form Factor
    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Built in with an Intel® Single-core Atom™ D425 processor (1.8 GHz)
        * Do not disassemble the onboard CPU/chipset and theheatsinks/fan by yourself to avoid damage to these components.
      2. 512K L2 cache
    • Chipset
      1. Intel® NM10
    • Memory
      1. 2 x 1.5V DDR3 DIMM sockets supporting up to 4 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Support for DDR3 800 MHz memory modules
      (Please refer "Memory Support List" for more information.)
    • Audio
      1. Realtek ALC887 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    • LAN
      1. Realtek GbE LAN Chip (10/100/1000 Mbit)
    • Expansion Slots
      1. 1 x PCI slot
    • Storage Interface
    • Chipset:
      1. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
    • USB
    • Chipset:
      1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    • Internal I/O Connectors
      1. 1 x 20-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 2 x SATA 3Gb/s connectors
      4. 1 x CPU fan header
      5. 1 x system fan header
      6. 1 x front panel header
      7. 1 x front panel audio header
      8. 2 x USB 2.0/1.1 headers
      9. 1 x serial port header
      10. 1 x chassis intrusion header
      11. 1 x power LED header
    • Back Panel Connectors
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 Mouse port
      3. 1 x parallel port
      4. 1 x serial port
      5. 1 x D-Sub port
      6. 4 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 3 x audio jacks (Line In/Line Out/Microphone)
    • I/O Controller
      1. iTE I/O Controller Chip
    • H/W Monitoring
      1. System voltage detection
      2. CPU temperature detection
      3. CPU/System fan speed detection
      4. CPU fan speed control
    • BIOS
      1. 2 x 4 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Unique Features
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress BIOS Rescue
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune
        * Available functions in EasyTune may differ by motherboard model.
      8. Support for SMART Recovery
      9. Support for Auto Green
      10. Support for ON/OFF Charge
      11. Support for Q-Share
    • Bundled Software
      1. Norton Internet Security (OEM version)
    • Operating System
      1. Support for Microsoft® Windows® 7/Vista/XP
    • Form Factor
      1. Mini-ITX Form Factor; 17.0cm x 17.0cm
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
