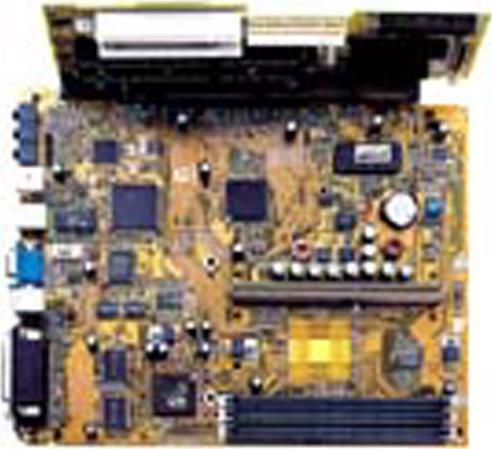

GA-6BNZ42

СпецификацииПоддержкаНовости & НаградыWhere to Buy

Спецификации

  • Процессор
    1. Intel® Pentium II / III Processor 233 to 550MHz
    2. Slot 1 for future processor support
    3. 66/100 MHz & Auto selection Main Clock
    4. Clock multipliers -- 3.0/3.5 ...... / 5.5
    5. Auto-detect CPU voltage
  • Чипсет
    1. Intel® 440BX AGPset
    2. Winbond 83977 I/O (1Mb/s)
    3. ATi RAGE Pro on board (2 or 4MB SGRAM) Supports 66/133 MHz Speeds
    4. YAMAHA Sound 715E on board
    5. Intel 82558 LAN on board
    6. Winbond 83781 Health chip (equivalent to LM78)
  • Подсистема памяти
    1. 8MB to 768MB DRAM size
    2. 3 x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM modules
    4. Supports ECC Type DIMM Module (72bits)
  • Разъёмы для плат расширения
    1. 2 * PCI Slot Supports 33MHz & PCI
    2. 2.1 compliant
    3. 2 * ISA Slot
  • Микросхема
    I/O-контроллера
    1. 1 * FDD, 2 * COM, 1 * LPT, PS/2 Keyboard, PS/2 Mouse on board
    2. 2 * Ultra DMA/33 Bus Master IDE ports
    3. 2 * USB on board
    4. IrDA TX/RX Header (optional)
  • Контроль за состоянием системы
    1. Temperature sensor under processor Heatsink
    2. Alarm when CPU Overheats or CPU Fan failure (OS independent & Driverless)
    3. System Health status detect & report by BIOS, LDCM® & SIV
    4. H/W detect +-5V, +-12V, +-3.3V, CPU Core Voltage, GTL (1.5V)
  • Микросхема BIOS
    1. Award BIOS with enhanced ACPI features for PC98/Win98 ompliance, green PC, PnP, DMI, INT13 (hard drives >8.4GB)
    2. 2 Mbit (256KB) Flash RAM
    3. IDE#1 ~ #4, SCSI, LS120,ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Форм-фактор
    1. NLX, 4 layer PCB (34.5*22.8 cm)
  • Driver
    1. Ultra DMA/33 bus master IDE drivers (Xstore Pro, Triones & Intel®)
    2. Intel® LDCM® utility, SIV utility
    3. Intel® PIIX4e patch utility for Windows 95
  • Other Features
    1. Supports Wake-on-LAN (WOL)
    2. fuse for Keyboard overcurrent protection
  • Power
    1. ATX power supply connector
    2. Power-on by switch, keyboard, PS/2 mouse, LAN, RTC (alarm), & modem ring & switch
    3. Power-off by Windows 95 shut down & soft-power switch
    4. AC recovery on/off control
    5. Supports stopping CPU fan during suspend mode
    6. Supports 3-level ACPI LED
  • Процессор
    1. Intel® Pentium II / III Processor 233 to 550MHz
    2. Slot 1 for future processor support
    3. 66/100 MHz & Auto selection Main Clock
    4. Clock multipliers -- 3.0/3.5 ...... / 5.5
    5. Auto-detect CPU voltage
  • Чипсет
    1. Intel® 440BX AGPset
    2. Winbond 83977 I/O (1Mb/s)
    3. ATi RAGE Pro on board (2 or 4MB SGRAM) Supports 66/133 MHz Speeds
    4. YAMAHA Sound 715E on board
    5. Intel 82558 LAN on board
    6. Winbond 83781 Health chip (equivalent to LM78)
  • Подсистема памяти
    1. 8MB to 768MB DRAM size
    2. 3 x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM modules
    4. Supports ECC Type DIMM Module (72bits)
  • Разъёмы для плат расширения
    1. 2 * PCI Slot Supports 33MHz & PCI
    2. 2.1 compliant
    3. 2 * ISA Slot
  • Микросхема
    I/O-контроллера
    1. 1 * FDD, 2 * COM, 1 * LPT, PS/2 Keyboard, PS/2 Mouse on board
    2. 2 * Ultra DMA/33 Bus Master IDE ports
    3. 2 * USB on board
    4. IrDA TX/RX Header (optional)
  • Контроль за состоянием системы
    1. Temperature sensor under processor Heatsink
    2. Alarm when CPU Overheats or CPU Fan failure (OS independent & Driverless)
    3. System Health status detect & report by BIOS, LDCM® & SIV
    4. H/W detect +-5V, +-12V, +-3.3V, CPU Core Voltage, GTL (1.5V)
  • Микросхема BIOS
    1. Award BIOS with enhanced ACPI features for PC98/Win98 ompliance, green PC, PnP, DMI, INT13 (hard drives >8.4GB)
    2. 2 Mbit (256KB) Flash RAM
    3. IDE#1 ~ #4, SCSI, LS120,ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Форм-фактор
    1. NLX, 4 layer PCB (34.5*22.8 cm)
  • Driver
    1. Ultra DMA/33 bus master IDE drivers (Xstore Pro, Triones & Intel®)
    2. Intel® LDCM® utility, SIV utility
    3. Intel® PIIX4e patch utility for Windows 95
  • Other Features
    1. Supports Wake-on-LAN (WOL)
    2. fuse for Keyboard overcurrent protection
  • Power
    1. ATX power supply connector
    2. Power-on by switch, keyboard, PS/2 mouse, LAN, RTC (alarm), & modem ring & switch
    3. Power-off by Windows 95 shut down & soft-power switch
    4. AC recovery on/off control
    5. Supports stopping CPU fan during suspend mode
    6. Supports 3-level ACPI LED

* Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
