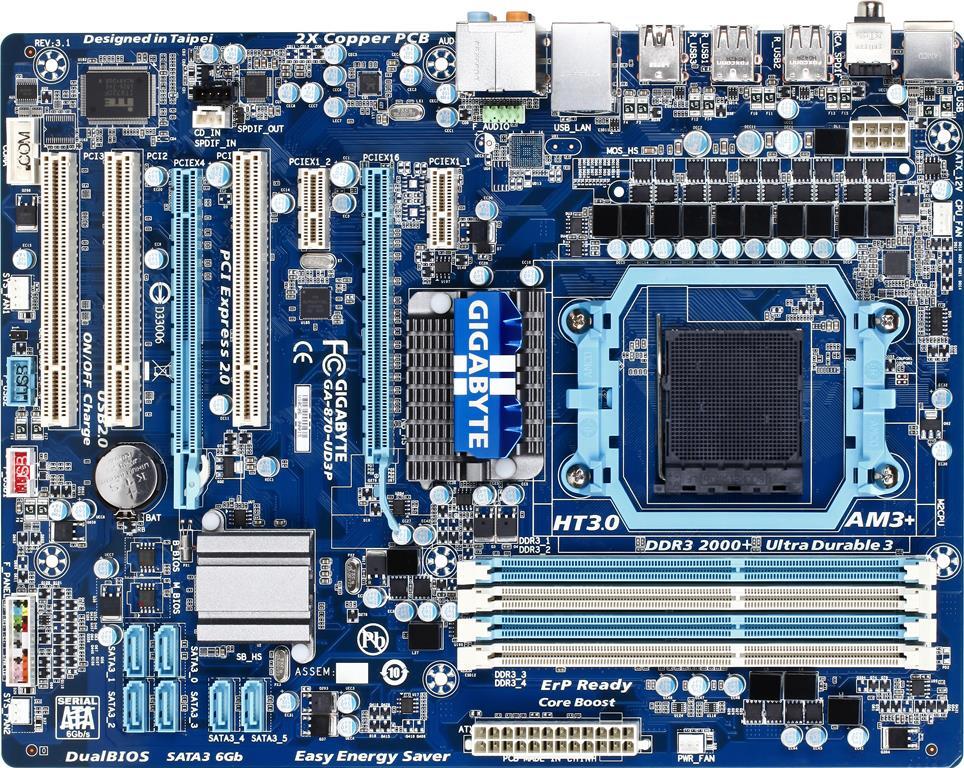

GA-870-UD3P (Rev. 3.1)

Rev. 3.1Rev. 1.3Rev. 3.0
AMD 870 + SB850 Chipset
ОбзорСпецификацииПоддержкаНовости & НаградыLearn MoreWhere to Buy

Спецификации

  • Процессор
  • AM3+ Socket:
    1. Support for AMD AM3+ processor
    2. Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor
  • Hyper Transport Bus
    1. 5200 MT/s
  • Чипсет
    1. North Bridge: AMD 870
    2. South Bridge: AMD SB850
  • Подсистема памяти
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR3 2000(OC)/1333/1066 MHz memory modules
  • Аудиоподсистема
    1. Realtek ALC889 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for Dolby Home Theater
    5. Support for S/PDIF In/Out
    6. Support for CD In
  • Сетевой
    LAN-интерфейс
    1. 1 x Realtek 8111E chip (10/100/1000 Mbit)
  • Разъёмы для плат расширения
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 2)
    3. 2 x PCI Express x1 slots (The PCIEX1_1 and PCIEX1_2 slots share bandwidth with the PCIEX4 slot.) (Note 2)
      (All PCI Express slots conform to the PCI Express 2.0 standard.)
    4. 3 x PCI slots
  • Интерфейсы накопителей
  • South Chipset:
    1. 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
    2. Support for SATA RAID 0, RAID 1, RAID5, RAID 10, and JBOD
    * SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
  • Интерфейс USB
  • Chipset:
    1. Up to 14 USB 2.0/1.1 ports (10 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • Разъемы на системной плате
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 6 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 2 x system fan header
    6. 1 x power fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x CD In connector
    10. 1 x S/PDIF In header
    11. 1 x S/PDIF Out header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x serial port header
    14. 1 x clearing CMOS jumper
  • Разъемы на задней панели
    1. 1 x PS/2 keyboard or mouse port
    2. 1 x optical S/PDIF Out connector
    3. 1 x coaxial S/PDIF out connector
    4. 10 x USB 2.0/1.1 ports
    5. 1 x RJ-45 port
    6. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • Микросхема
    I/O-контроллера
    1. ITE IT8720 chip
  • Контроль за состоянием системы
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control (Note 3)
  • Микросхема BIOS
    1. 2 x 16 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Фирменные функции и технологии
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 4)
    8. Support for Easy Energy Saver
    9. Support for Smart Recovery
    10. Support for Auto Green
    11. Support for On/Off Charge
    12. Support for Q-Share
  • ПО в комплекте поставки
    1. Norton Internet Security (OEM version)
  • Операционная система
    1. Support for Microsoft Windows 7/ Vista/ XP
  • Форм-фактор
    1. ATX Form Factor; 30.5cm x 23.0 cm
  • Примечание
  • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 2) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (Note 3) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    (Note 4) Available functions in EasyTune may differ by motherboard model.
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
  • Процессор
  • AM3+ Socket:
    1. Support for AMD AM3+ processor
    2. Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor
  • Hyper Transport Bus
    1. 5200 MT/s
  • Чипсет
    1. North Bridge: AMD 870
    2. South Bridge: AMD SB850
  • Подсистема памяти
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR3 2000(OC)/1333/1066 MHz memory modules
  • Аудиоподсистема
    1. Realtek ALC889 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for Dolby Home Theater
    5. Support for S/PDIF In/Out
    6. Support for CD In
  • Сетевой
    LAN-интерфейс
    1. 1 x Realtek 8111E chip (10/100/1000 Mbit)
  • Разъёмы для плат расширения
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 2)
    3. 2 x PCI Express x1 slots (The PCIEX1_1 and PCIEX1_2 slots share bandwidth with the PCIEX4 slot.) (Note 2)
      (All PCI Express slots conform to the PCI Express 2.0 standard.)
    4. 3 x PCI slots
  • Интерфейсы накопителей
  • South Chipset:
    1. 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
    2. Support for SATA RAID 0, RAID 1, RAID5, RAID 10, and JBOD
    * SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
  • Интерфейс USB
  • Chipset:
    1. Up to 14 USB 2.0/1.1 ports (10 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • Разъемы на системной плате
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 6 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 2 x system fan header
    6. 1 x power fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x CD In connector
    10. 1 x S/PDIF In header
    11. 1 x S/PDIF Out header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x serial port header
    14. 1 x clearing CMOS jumper
  • Разъемы на задней панели
    1. 1 x PS/2 keyboard or mouse port
    2. 1 x optical S/PDIF Out connector
    3. 1 x coaxial S/PDIF out connector
    4. 10 x USB 2.0/1.1 ports
    5. 1 x RJ-45 port
    6. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • Микросхема
    I/O-контроллера
    1. ITE IT8720 chip
  • Контроль за состоянием системы
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control (Note 3)
  • Микросхема BIOS
    1. 2 x 16 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Фирменные функции и технологии
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 4)
    8. Support for Easy Energy Saver
    9. Support for Smart Recovery
    10. Support for Auto Green
    11. Support for On/Off Charge
    12. Support for Q-Share
  • ПО в комплекте поставки
    1. Norton Internet Security (OEM version)
  • Операционная система
    1. Support for Microsoft Windows 7/ Vista/ XP
  • Форм-фактор
    1. ATX Form Factor; 30.5cm x 23.0 cm
  • Примечание
  • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 2) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (Note 3) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    (Note 4) Available functions in EasyTune may differ by motherboard model.
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
