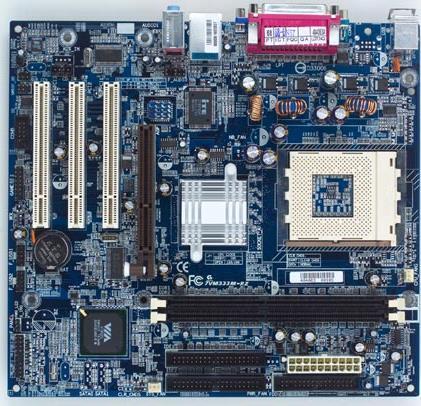

7VM333M-RZ (Rev. 1.01)

OverviewSpecificationsSupportNews & AwardsLearn MoreWhere to Buy

Specifications

  • Процесор
    1. Socket A for AMD Athlon™ XP / Athlon™ /Duron™ processor
  • Front Side Bus
    1. 333/266/200 MHz FSB
  • Чипсет
    1. Northbridge : VIA KM266 Pro
    2. Southbridge : VIA 8235
    3. Super I/O : ITE IT8705F
    4. Integrated Peripherals
      1. VIA 6103 Ethernet 10/100Mb LAN PHY
      2. VIA 1617 codec chip
  • Поддържана памет
    1. Type : DDR333 (PC2700)/DDR266(PC2100)/ DDR200(PC1600)-184pin
    2. Max capacity : Up to 2GB by 2 DIMM slots
  • Слотове за периферни компоненти
    1. 1 x AGP slot (4X)
    2. 3 x PCI slots (PCI 2.2 compliant)
  • Вътрешни входно-изходни портове
    1. 1 x FDD port
    2. 2 x UDMA ATA133/100/66 Bus Master IDE ports
    3. 2 x USB 2.0 connectors (support 4 ports)
    4. 1 x Game/ Midi connector
    5. 1 x Com connector
  • Входове / изходи на задния панел
    1. PS/2 Keyboard / Mouse
    2. 1 x VGA port
    3. 1 x RJ45 port
    4. 2 x USB 2.0 ports
    5. 1 x COM port
    6. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) ports
    7. 1 x LPT
  • Хардуерен мониторинг
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report CPU voltage
    3. Support auto temperature detect thermal shutdown function
  • BIOS
    1. 2Mbit BIOS ROM
  • Пакетиран софтуер
    1. Norton Internet Security™
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Форм фактор
    1. m-ATX, Dimension : ( 24.4 x 23.3 cm )
  • CPU/AGP/DIMM setting
    1. CPU FSB adjustable via BIOS (1MHz-linear)
  • Other Features
    1. Xpress Recovery
    2. Xpress Install
    3. @BIOS
    4. Q-Flash
  • Процесор
    1. Socket A for AMD Athlon™ XP / Athlon™ /Duron™ processor
  • Front Side Bus
    1. 333/266/200 MHz FSB
  • Чипсет
    1. Northbridge : VIA KM266 Pro
    2. Southbridge : VIA 8235
    3. Super I/O : ITE IT8705F
    4. Integrated Peripherals
      1. VIA 6103 Ethernet 10/100Mb LAN PHY
      2. VIA 1617 codec chip
  • Поддържана памет
    1. Type : DDR333 (PC2700)/DDR266(PC2100)/ DDR200(PC1600)-184pin
    2. Max capacity : Up to 2GB by 2 DIMM slots
  • Слотове за периферни компоненти
    1. 1 x AGP slot (4X)
    2. 3 x PCI slots (PCI 2.2 compliant)
  • Вътрешни входно-изходни портове
    1. 1 x FDD port
    2. 2 x UDMA ATA133/100/66 Bus Master IDE ports
    3. 2 x USB 2.0 connectors (support 4 ports)
    4. 1 x Game/ Midi connector
    5. 1 x Com connector
  • Входове / изходи на задния панел
    1. PS/2 Keyboard / Mouse
    2. 1 x VGA port
    3. 1 x RJ45 port
    4. 2 x USB 2.0 ports
    5. 1 x COM port
    6. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) ports
    7. 1 x LPT
  • Хардуерен мониторинг
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report CPU voltage
    3. Support auto temperature detect thermal shutdown function
  • BIOS
    1. 2Mbit BIOS ROM
  • Пакетиран софтуер
    1. Norton Internet Security™
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Форм фактор
    1. m-ATX, Dimension : ( 24.4 x 23.3 cm )
  • CPU/AGP/DIMM setting
    1. CPU FSB adjustable via BIOS (1MHz-linear)
  • Other Features
    1. Xpress Recovery
    2. Xpress Install
    3. @BIOS
    4. Q-Flash

* Термините HDMI, HDMI High-Definition Multimedia Interface, Търговски облик HDMI и логотипите на HDMI са търговски или регистрирани марки на HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
