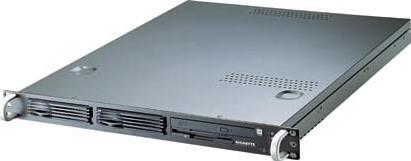

GS-SR101TLegacy | Software updates supported
- Dimensions: 19"W x 1.73"H x 24"D (1U)
- Two Hot-Swap ATA-100 Drive Bays with IDE RAID 0, 1
- VIA® Apollo™ VT92C694T, VT82C686B, ATI® Rage XL 8MB
- Dual Intel® Pentium® III Tualatin Processors (Socket 370/133MHz FSB/1.2GHZ+)
- Max. 2GB Un-Buffered or Registered (ECC) PC-133 SDRAM Memory in 4 Angle DIMM Slots
- Promise® PDC20265R Dual ATA-100 Channels with IDE RAID 0,1
- Dual Intel® 82559 10/100Mbps Fast Ethernet with Advanced Software Functions
- 1 PCI 32-Bit/33MHz Full-Height Slot
Specifications
CPU
- Dual Intel® Pentium Ⅲ(S)-(512K) processors up to Tualatin 1.4 GHz
Chipset
- VIA® Apollo™ Pro Family AGP Set
- North Bridge：VT82C694T
- South Bridge：VT82C686B
LAN
- Two Intel® Pro/100+ Server Ethernet Controllers（Intel 82559）Supports 100BASE-T and 10BASE-T, RJ45 output
- Adapter Fault Tolerance（AFT）
- Adaptive Load Balancing（ALB）
- Wake On LAN（WOL）
Video
- ATI Rage XL with 8MB memory
RAID
- RAID 0,1 Supported
Expansion Slots
- One 32bit/33MHz Full Size PCI Slot
Power Supply[#1]
- 250W ; 90V～250V；47～63Hz
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
