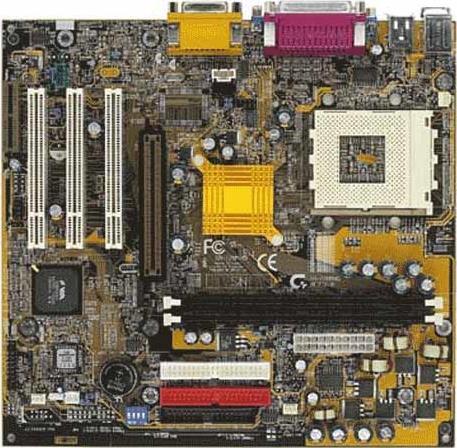

GA-7ZMMHC (Rev. 1.x)

EspecificaçãoSuporteNotícias/PrêmiosWhere to Buy

Especificação

  • CPU
    1. Socket A for AMD Athlon™/ Duron™ 200/266 MHz FSB processors
    2. 95/100/103/105/110/115/133 MHz FSB
    3. Auto-detects CPU voltage
  • Front Side Bus
    1. Socket A for AMD Athlon™/Duron™266/200MHz FSB processors
  • Chipset
    1. VIA VT8365A (KM133A)
    2. VIA VT82C686B
    3. Chipset with build in S3 savage 4 graphics core
    4. AC'97 codec
  • Memória
    1. 2 168-pin DIMM sockets
    2. Supports PC100 / PC133 SDRAM and VCM SDRAM
    3. Supports up to 1GB SDRAM
    4. Supports only 3.3V SDRAM DIMM
  • Slots de Expansão
    1. 1 x AGP slot support 4X mode
    2. 3 x PCI slot supports 33MHz & PCI 2.2 compliant
    3. 1 x CNR slot (reverse)
  • Conectores Internos I/O
    1. 2 x UDMA ATA 100/66/33 bus master IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA (DB15), 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
  • Conectores Painel Traseiro
    1. 2 x USB ports on board, 2 x USB ports by cable (optional accessary)
    2. IrDA TX / RX header ready
  • Monitoramento H/W
    1. System voltage detect (Vcore, VDD, Vcc,+12V)
    2. H/W detect & report Power-in voltage, CPU voltage and CMOS battery status
    3. CPU/System fan revolution & temperature detect
  • BIOS
    1. 2Mbit Flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinMe compliance, Green, PnP, DMI, INT13 (>8.4GB) &Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC recovery ON/OFF control
    5. Supports @BIOS™ Live Update utility
    6. Auto-detect & report system health status
  • Form Factor
    1. Micro ATX form factor,4 layers PCB
    2. 24.4 x 23.0 cm
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
    3. Creative PCI sound driver
    4. S3 Savage4 graphic accelerator driver
  • Outras Características
    1. Suspend-To-RAM (STR)
    2. Supports Wake-On-LAN (WOL) & internal/external Modem Ring on
    3. Supports USB K/B or mouse wake up
    4. Includes 3 fan power connectors
  • Energia
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 95/98/2000/Me shut down & Switch
  • CPU
    1. Socket A for AMD Athlon™/ Duron™ 200/266 MHz FSB processors
    2. 95/100/103/105/110/115/133 MHz FSB
    3. Auto-detects CPU voltage
  • Front Side Bus
    1. Socket A for AMD Athlon™/Duron™266/200MHz FSB processors
  • Chipset
    1. VIA VT8365A (KM133A)
    2. VIA VT82C686B
    3. Chipset with build in S3 savage 4 graphics core
    4. AC'97 codec
  • Memória
    1. 2 168-pin DIMM sockets
    2. Supports PC100 / PC133 SDRAM and VCM SDRAM
    3. Supports up to 1GB SDRAM
    4. Supports only 3.3V SDRAM DIMM
  • Slots de Expansão
    1. 1 x AGP slot support 4X mode
    2. 3 x PCI slot supports 33MHz & PCI 2.2 compliant
    3. 1 x CNR slot (reverse)
  • Conectores Internos I/O
    1. 2 x UDMA ATA 100/66/33 bus master IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA (DB15), 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
  • Conectores Painel Traseiro
    1. 2 x USB ports on board, 2 x USB ports by cable (optional accessary)
    2. IrDA TX / RX header ready
  • Monitoramento H/W
    1. System voltage detect (Vcore, VDD, Vcc,+12V)
    2. H/W detect & report Power-in voltage, CPU voltage and CMOS battery status
    3. CPU/System fan revolution & temperature detect
  • BIOS
    1. 2Mbit Flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinMe compliance, Green, PnP, DMI, INT13 (>8.4GB) &Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC recovery ON/OFF control
    5. Supports @BIOS™ Live Update utility
    6. Auto-detect & report system health status
  • Form Factor
    1. Micro ATX form factor,4 layers PCB
    2. 24.4 x 23.0 cm
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
    3. Creative PCI sound driver
    4. S3 Savage4 graphic accelerator driver
  • Outras Características
    1. Suspend-To-RAM (STR)
    2. Supports Wake-On-LAN (WOL) & internal/external Modem Ring on
    3. Supports USB K/B or mouse wake up
    4. Includes 3 fan power connectors
  • Energia
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 95/98/2000/Me shut down & Switch

* Os termos e expressões “HDMI”, “HDMI High-Definition Multimedia Interface” e “Trade dress da HDMI”, e os Logotipos da HDMI são marcas comerciais ou marcas registradas da HDMI Licensing Administrator, Inc.
* Todos os materiais disponíveis são para simples referência. A GIGABYTE reserva o direito de modificar ou revisar o conteúdo a qualquer momento sem aviso prévio.
* Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
* Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida
