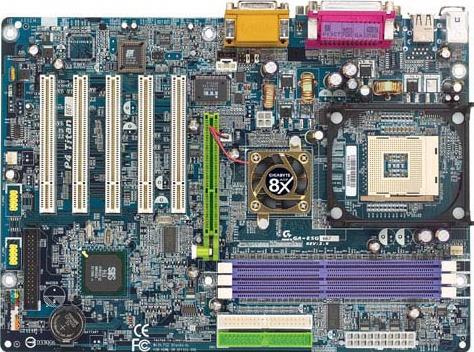

GA-8SG667 (Rev. 1.x)

EspecificaçãoSuporteNotícias/PrêmiosWhere to Buy

Especificação

  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. 533/400 MHz
  • Chipset
    1. Northbridge: SiS648 HMAC Host & Memory & AGP Controller
    2. Southbridge: SiS963 MuTIOL® Media I/O
    3. Super I/O: ITE IT8705 chip (Version 2.0)
    4. Super I/O: ITE IT8700 chip (Version 1.0)
    5. REALTEK ALC650 codec chip
  • Memória
    1. Type: DDR333(PC2700)/DDR266(PC2100) - 184pin
    2. Max capacity: Up to 3GB DDR266 by 3 DIMM slots or up to 2GB DDR333 by 2 DIMM slots
  • Slots de Expansão
    1. 1 x AGP slot (8x/4x, AGP 3.0/2.0 compliant), supports 1.5v display card only.
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Conectores Internos I/O
    1. 2 x UDMA ATA 133/100/66 Bus Master IDE ports
    2. 2 x USB 2.0/1.1 connectors (4 ports by cable)
    3. 1 x FDD port
    4. SP/DIF output
  • Conectores Painel Traseiro
    1. PS/2 Keyboard / Mouse
    2. 2 x USB 2.0/1.1 ports
    3. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    4. 2 x COM ports
    5. 1 x Game/Midi port
  • Monitoramento H/W
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for Case open and CPU and System fan speed (Version 1.0)
    3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed. (Version 2.0)
  • BIOS
    1. 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
  • Pacote de Software
    1. @BIOSTM, EasyTuneTM4, Q-FlashTM, GMCTM
    2. Norton Internet Security
    3. GIGABYTE Windows Utility Manager
  • Form Factor
    1. ATX form factor, 4 layers PCB (30.4 x 20.0)
  • Configuração CPU/AGP/DIMM
    1. CPU FSB adjustable (1MHz-linear) via BIOS
    2. Multiplier adjustable via BIOS
    3. AGP/ DRAM Clock adjustable via BIOS
  • Driver
    1. SiS 648 AGP driver
    2. REALTEK Sound driver
    3. SiS USB 2.0 driver
  • Outras Características
    1. Suspend to RAM (STR)
    2. Supports USB KB / MS wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Energia
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. 533/400 MHz
  • Chipset
    1. Northbridge: SiS648 HMAC Host & Memory & AGP Controller
    2. Southbridge: SiS963 MuTIOL® Media I/O
    3. Super I/O: ITE IT8705 chip (Version 2.0)
    4. Super I/O: ITE IT8700 chip (Version 1.0)
    5. REALTEK ALC650 codec chip
  • Memória
    1. Type: DDR333(PC2700)/DDR266(PC2100) - 184pin
    2. Max capacity: Up to 3GB DDR266 by 3 DIMM slots or up to 2GB DDR333 by 2 DIMM slots
  • Slots de Expansão
    1. 1 x AGP slot (8x/4x, AGP 3.0/2.0 compliant), supports 1.5v display card only.
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Conectores Internos I/O
    1. 2 x UDMA ATA 133/100/66 Bus Master IDE ports
    2. 2 x USB 2.0/1.1 connectors (4 ports by cable)
    3. 1 x FDD port
    4. SP/DIF output
  • Conectores Painel Traseiro
    1. PS/2 Keyboard / Mouse
    2. 2 x USB 2.0/1.1 ports
    3. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    4. 2 x COM ports
    5. 1 x Game/Midi port
  • Monitoramento H/W
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for Case open and CPU and System fan speed (Version 1.0)
    3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed. (Version 2.0)
  • BIOS
    1. 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
  • Pacote de Software
    1. @BIOSTM, EasyTuneTM4, Q-FlashTM, GMCTM
    2. Norton Internet Security
    3. GIGABYTE Windows Utility Manager
  • Form Factor
    1. ATX form factor, 4 layers PCB (30.4 x 20.0)
  • Configuração CPU/AGP/DIMM
    1. CPU FSB adjustable (1MHz-linear) via BIOS
    2. Multiplier adjustable via BIOS
    3. AGP/ DRAM Clock adjustable via BIOS
  • Driver
    1. SiS 648 AGP driver
    2. REALTEK Sound driver
    3. SiS USB 2.0 driver
  • Outras Características
    1. Suspend to RAM (STR)
    2. Supports USB KB / MS wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Energia
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch

* Os termos e expressões “HDMI”, “HDMI High-Definition Multimedia Interface” e “Trade dress da HDMI”, e os Logotipos da HDMI são marcas comerciais ou marcas registradas da HDMI Licensing Administrator, Inc.
* Todos os materiais disponíveis são para simples referência. A GIGABYTE reserva o direito de modificar ou revisar o conteúdo a qualquer momento sem aviso prévio.
* Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
* Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida
