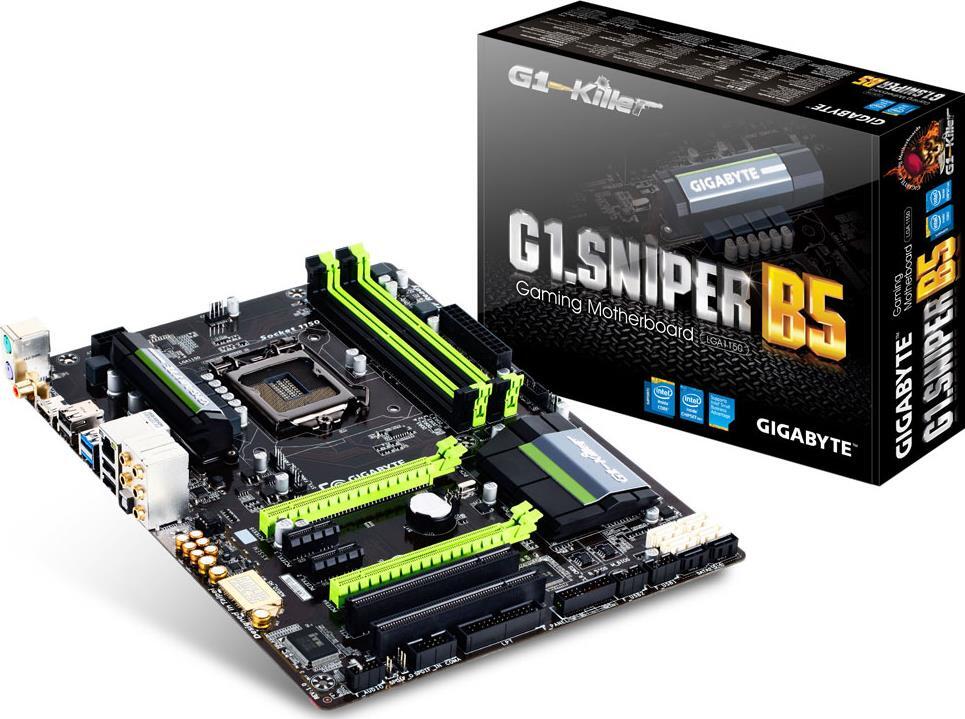

G1.Sniper B5 (Rev. 1.x)

Rev. 1.xRev. 1.2
Intel® B85 Chipset
OverviewSpecificationsSupportNews & AwardsLearn More

Specifications

  • CPU
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® B85 Express Chipset
  • Memory
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3 1600/1333 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor - Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
      * Support for HDMI 1.4a version.
    2. Maximum shared memory of 1 GB
  • Audio
    1. Realtek® ALC898 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF In
    5. Support for S/PDIF Out
  • LAN
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)

    3. 2 x PCI Express x1 slots
      (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)

    4. 2 x PCI slots
  • Multi-Graphics Technology
    1. Support for AMD CrossFire™ technology
  • Storage Interface
  • Chipset:
    1. 4 x SATA 6Gb/s connectors (SATA3 0~SATA3 3) supporting up to 4 SATA 6Gb/s devices
    2. 2 x SATA 3Gb/s connectors (SATA2 4~SATA2 5) supporting up to 2 SATA 3Gb/s devices
  • USB
  • Chipset:
    1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
    2. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 2 x SATA 3Gb/s connectors
    5. 1 x CPU fan header
    6. 3 x system fan headers
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 1 x S/PDIF In header
    11. 1 x USB 3.0/2.0 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x serial port header
    14. 1 x parallel port header
    15. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x coaxial S/PDIF Out connector
    4. 1 x HDMI port
    5. 2 x USB 3.0/2.0 ports
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI EFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for Q-Flash
    2. Support for Xpress Install
    3. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
      @BIOS
      EasyTune
      EZ Setup
      USB Blocker
    4. Support for ON/OFF Charge
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Intel® Rapid Start Technology
    3. Intel® Smart Connect Technology
    4. Intel® Small Business Advantage
    5. cFosSpeed
  • Operating System
    1. Support for Windows 10/8.1/8/7
  • Form Factor
    1. ATX Form Factor; 30.5cm x 22.5cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. Intel® B85 Express Chipset
    • Memory
      1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR3 1600/1333 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
    • Integrated Graphics Processor - Intel® HD Graphics support:
      1. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
        * Support for HDMI 1.4a version.
      2. Maximum shared memory of 1 GB
    • Audio
      1. Realtek® ALC898 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF In
      5. Support for S/PDIF Out
    • LAN
      1. Intel® GbE LAN chip (10/100/1000 Mbit)
    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16
        (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)

      3. 2 x PCI Express x1 slots
        (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)

      4. 2 x PCI slots
    • Multi-Graphics Technology
      1. Support for AMD CrossFire™ technology
    • Storage Interface
    • Chipset:
      1. 4 x SATA 6Gb/s connectors (SATA3 0~SATA3 3) supporting up to 4 SATA 6Gb/s devices
      2. 2 x SATA 3Gb/s connectors (SATA2 4~SATA2 5) supporting up to 2 SATA 3Gb/s devices
    • USB
    • Chipset:
      1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
      2. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 4 x SATA 6Gb/s connectors
      4. 2 x SATA 3Gb/s connectors
      5. 1 x CPU fan header
      6. 3 x system fan headers
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x S/PDIF Out header
      10. 1 x S/PDIF In header
      11. 1 x USB 3.0/2.0 header
      12. 2 x USB 2.0/1.1 headers
      13. 1 x serial port header
      14. 1 x parallel port header
      15. 1 x Clear CMOS jumper
    • Back Panel Connectors
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x coaxial S/PDIF Out connector
      4. 1 x HDMI port
      5. 2 x USB 3.0/2.0 ports
      6. 4 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 1 x optical S/PDIF Out connector
      9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU/System overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI EFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for Q-Flash
      2. Support for Xpress Install
      3. Support for APP Center
        * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
        @BIOS
        EasyTune
        EZ Setup
        USB Blocker
      4. Support for ON/OFF Charge
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. Intel® Rapid Start Technology
      3. Intel® Smart Connect Technology
      4. Intel® Small Business Advantage
      5. cFosSpeed
    • Operating System
      1. Support for Windows 10/8.1/8/7
    • Form Factor
      1. ATX Form Factor; 30.5cm x 22.5cm
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
